A sample consisting of 1 mol of monoatomic ideal gas (for which C m V =...
A sample consisting of 1 mol of monoatomic ideal gas (for which C m V = 3R/2) is taken reversibly through the following cycle
(A) p1, V1 → (B) p1, V2 → (C) p2, V2 → (A) p1, V1 ,
where p = 1 atm, p2 = p1/2, V1 = 22.44 L, and V2 = 2V1, and the step (C)→(A) is carried along an isotherm.

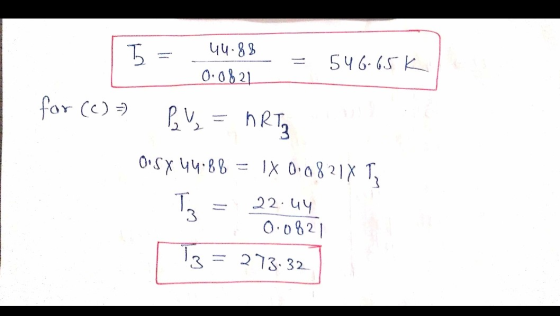

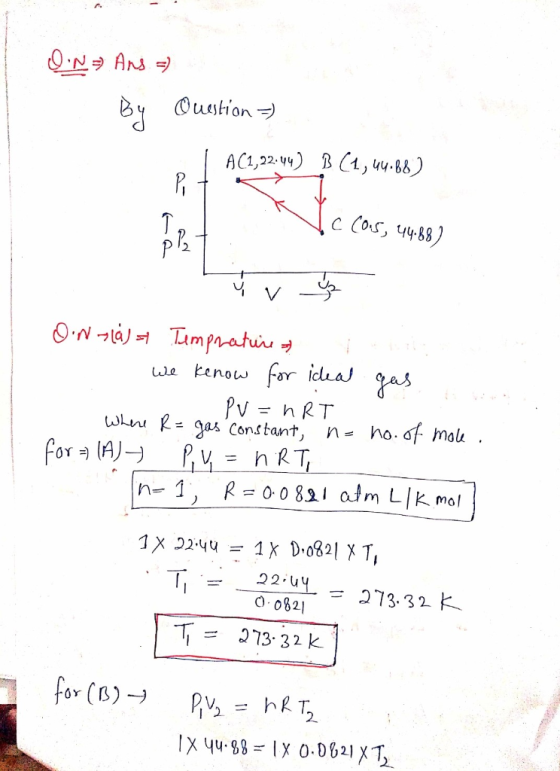

(a) Determine the temperature at (A), (B), and (C).

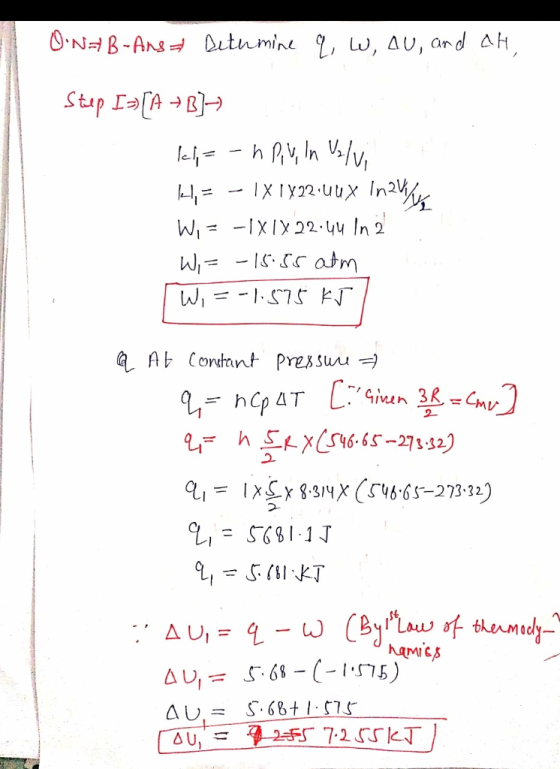

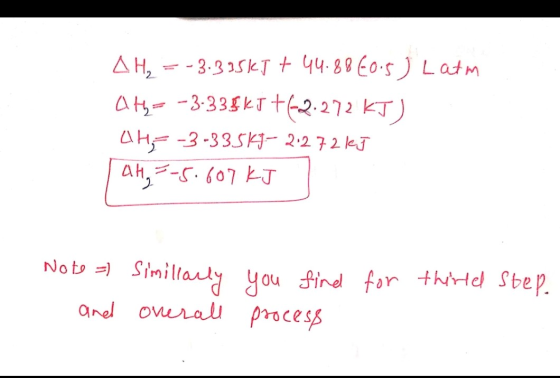

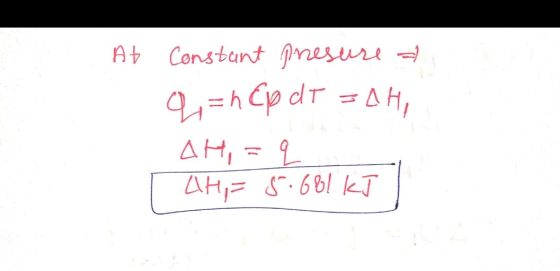

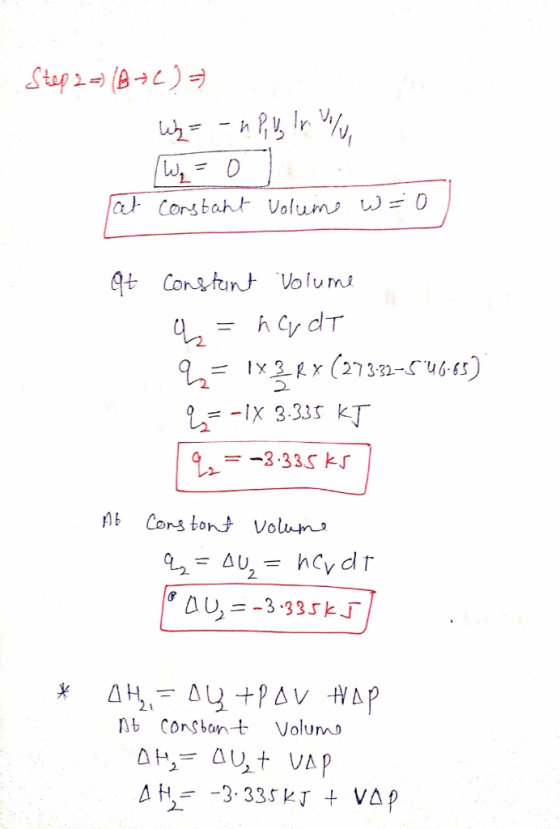

(b) Determine q, w, ∆U, and ∆H for each step and for the overall cycle.
Homework Answers
Add Answer to:
A sample consisting of 1 mol of monoatomic ideal gas (for which
C m V =...
3. 2 mol of an ideal monoatomic gas moves from State 1 to State 2 P...
3. 2 mol of an ideal monoatomic gas moves from State 1 to State 2 P at constant pressure 1000 Pa and size V1=2 m3,V2 =3 m'. Calculated value W, Q, AU, TI, T2
An ideal gas with 2.70 mol is initially in state 1 with pressure p1 = 22.0...
An ideal gas with 2.70 mol is initially in state 1 with pressure p1 = 22.0 atm and volume v1 = 1020 cm 3. First it is taken to state 2 with pressure p2 = 1.50p1 and volume V2-2.00V1. Then it is taken to state 3 with pressure P3-2.00p1 and volume v3-0.500v1, what is the temperature of the gas in (a) state 1 and (b) state 2? (c) What is the net change in internal energy from state 1 to...
A monatomic ideal gas is taken through a closed cycle. Starting from state 1 with pressure...
A monatomic ideal gas is taken through a closed cycle. Starting from state 1 with pressure P1 and volume V1 the gas expands isothermally (at constant temperature) to volume V2 = 2V1. It is then compressed at constant pressure back to the original volume V1 and then heated at constant volume to return to the original pressure P1 . a) Find how much work is performed by this gas during each part of this cycle. b) Find how much heat...
Consider a monoatomic ideal gas undergoing the following cycle: starting point (a), pressure increases at a...
Consider a monoatomic ideal gas undergoing the following cycle: starting point (a), pressure increases at a constant volume reaching point (b), then the gas expands adiabatically until pressure reaches the initial value (point c), and then the gas is compressed at a constant pressure until the volume reaches the initial value back to point (a). The amount of gas is 1 mole. Monoatomic gas means it has only 3 degrees of freedom and the adiabatic constant gamma is 5/3. Sketch...
PROBLEM C and D Problem 9.6 For a mole of a perfect monoatomic gas, the internal...
PROBLEM C and D
Problem 9.6 For a mole of a perfect monoatomic gas, the internal energy can be expressed as a function of the pressure and volume as a) Write the total differential of U, dU b) Calculate the line integrals J dU for the paths shown below (ci, c2, s): 176 CHAPTER 9. EXACT AND INEXACT DIFFERENTIALS 3 P1 2 P1 P1 3 P1 2 P1 P1 3 P1 2 P1 P1 V1 2V1 2V1 2V1 c) Calculate...
Suppose that we allow 3.50 mol of an ideal gas with Cv=5R/2 to expand isothermally and...
Suppose that we allow 3.50 mol of an ideal gas with Cv=5R/2 to expand isothermally and reversibly from 100 atm, 10 L to 10.0 atm and then the gas is allowed to expand adiabatically and reversibly to a final pressure of 1.00 atm. Calculate q, w, ΔU and ΔH for each step and the total values for the two steps. Suppose now that the processes are carried out irreversibly with pressure dropping discontinuously from 100 atm to 10.0 atm in...
Vol calculate mol sample of an ideal gas expands reversibly and isothermally to a final OL...
Vol calculate mol sample of an ideal gas expands reversibly and isothermally to a final OL If the initial pressure is 7.0 am and the temperature is 57.0°C (a) the initial volume of the gas (b) the final pressure of the gas (c) the work done in kJ (5) A 2 50 mol sample of an ideal monoatomic gas at 300K expands adiabatically and reversibly from a volume of 15.0 L to 60.0L Calculate the (a) final temperature of the...
Dmole of an ideal gas follows the cycle shown in the figure. 1-2 is isochoric process,...
Dmole of an ideal gas follows the cycle shown in the figure. 1-2 is isochoric process, 2-3 is adiabatic process and 3-1 is isobaric process. Vi, Pi are given; V2-2V, P2- P/3. Determine (according to P1, V1) a) Adiabatic coefficient y and molar specific heats Cv and Cp (from the process 2-3) ? b) The heats from 1-2 and 3-1 processes? c) The thermal efficiency of the engine operating with this cycle. PI P2 V2 VI ..
Dmole of an...
Consider a closed system consisting of one mole of a monoatomic ideal gas X initially at...
Consider a closed system consisting of one mole of a monoatomic ideal gas X initially at 10.0 atm, a temperature of 487.5 K, and a volume of 4.00 L (state A). From state A, the system may expand isothermally and reversibly to state B, where the pressure is 2.50 atm. The system may also expand adiabatically and reversibly to state B, where the pressure is 2.50 atm. The system may also expand adiabatically and reversibly (through an intermediate state D)...
What is the volume of an ideal gas sample that has a pressure of 3.0 atm,...
What is the volume of an ideal gas sample that has a pressure of 3.0 atm, a temperature of 370 K and a sample size of 0.50 mole? The following list are some of the gas equations in Chapter 10: P1 * V1 = P2 * V2 PV = nRT R 0.0821 Latm)/(molek) Pt = P1 P2 + P3 + ...... The volume is 5.1 L The volume is 0.20 L The volume is 46. L The volume is 6.2L
3. 2 mol of an ideal monoatomic gas moves from State 1 to State 2 P at constant pressure 1000 Pa and size V1=2 m3,V2 =3 m'. Calculated value W, Q, AU, TI, T2
An ideal gas with 2.70 mol is initially in state 1 with pressure p1 = 22.0 atm and volume v1 = 1020 cm 3. First it is taken to state 2 with pressure p2 = 1.50p1 and volume V2-2.00V1. Then it is taken to state 3 with pressure P3-2.00p1 and volume v3-0.500v1, what is the temperature of the gas in (a) state 1 and (b) state 2? (c) What is the net change in internal energy from state 1 to...
PROBLEM C and D
Problem 9.6 For a mole of a perfect monoatomic gas, the internal energy can be expressed as a function of the pressure and volume as a) Write the total differential of U, dU b) Calculate the line integrals J dU for the paths shown below (ci, c2, s): 176 CHAPTER 9. EXACT AND INEXACT DIFFERENTIALS 3 P1 2 P1 P1 3 P1 2 P1 P1 3 P1 2 P1 P1 V1 2V1 2V1 2V1 c) Calculate...
Vol calculate mol sample of an ideal gas expands reversibly and isothermally to a final OL If the initial pressure is 7.0 am and the temperature is 57.0°C (a) the initial volume of the gas (b) the final pressure of the gas (c) the work done in kJ (5) A 2 50 mol sample of an ideal monoatomic gas at 300K expands adiabatically and reversibly from a volume of 15.0 L to 60.0L Calculate the (a) final temperature of the...
Dmole of an ideal gas follows the cycle shown in the figure. 1-2 is isochoric process, 2-3 is adiabatic process and 3-1 is isobaric process. Vi, Pi are given; V2-2V, P2- P/3. Determine (according to P1, V1) a) Adiabatic coefficient y and molar specific heats Cv and Cp (from the process 2-3) ? b) The heats from 1-2 and 3-1 processes? c) The thermal efficiency of the engine operating with this cycle. PI P2 V2 VI ..
Dmole of an...
What is the volume of an ideal gas sample that has a pressure of 3.0 atm, a temperature of 370 K and a sample size of 0.50 mole? The following list are some of the gas equations in Chapter 10: P1 * V1 = P2 * V2 PV = nRT R 0.0821 Latm)/(molek) Pt = P1 P2 + P3 + ...... The volume is 5.1 L The volume is 0.20 L The volume is 46. L The volume is 6.2L
