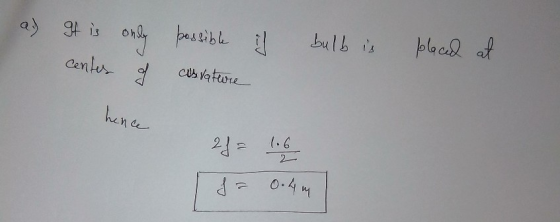

a) Two identical concave mirrors are set facing each other 1.6 m apart. A small lightbulb...
a) Two identical concave mirrors are set facing each other 1.6 m apart. A small lightbulb is placed halfway between the mirrors. A small piece of paper placed just to the left of the bulb prevents light from the bulb from directly shining on the left mirror, but light reflected from the right mirror still reaches the left mirror. A good image of the bulb appears on the left side of the piece of paper.
What is the focal length of the mirrors?

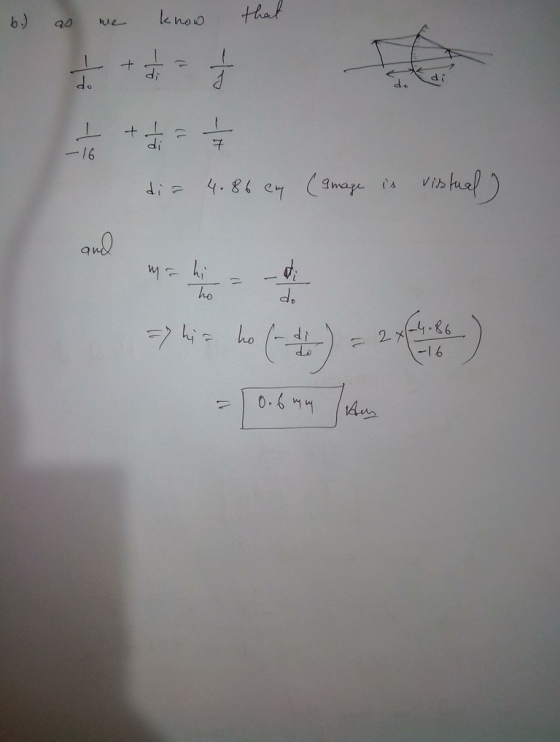

b) An object 2.0 mm high is placed 16 cm from a convex mirror of radius of curvature 14 cm .
Compute the image distance from 1/do+1/di=1/f using a focal length of -7.0 cm .
Compute the image size, using m=hi/ho=−di/do.
Homework Answers
Add Answer to:
a) Two identical concave mirrors are set facing each other 1.6 m
apart. A small lightbulb...
A plane mirror and a concave mirror (f = 8.50 cm) are facing each other and...
A plane mirror and a concave
mirror (f = 8.50 cm) are facing each other and are separated by a
distance of 24.5 cm. An object is placed between the mirrors and is
12.3 cm from each mirror. Consider the light from the object that
reflects first from the plane mirror and then from the concave
mirror. What is the distance of the image (di) produced
by the concave mirror?
1. A plane mirror and a concave mirror (f= 8.50...
A plane mirror and a concave mirror (f = 8.00 cm) are facing each other and...
A plane mirror and a concave mirror (f = 8.00 cm) are facing each other and are separated by a distance of 22.5 cm. An object is placed between the mirrors and is 11.3 cm from each mirror. Consider the light from the object that reflects first from the plane mirror and then from the concave mirror. What is the distance of the image (di) produced by the concave mirror?
A plane mirror and a concave mirror (f = 8.50 cm) are facing each other and...
A plane mirror and a concave mirror (f = 8.50 cm) are facing each other and are separated by a distance of 24.5 cm. An object is placed between the mirrors and is 12.3 cm from each mirror. Consider the light from the object that reflects first from the plane mirror and then from the concave mirror. What is the distance of the image (di) produced by the concave mirror?
A plane mirror and a concave mirror (f = 7.90 cm) are facing each other and...
A plane mirror and a concave mirror (f = 7.90 cm) are facing each other and are separated by a distance of 18.0 cm. An object is placed between the mirrors and is 9.0 cm from each mirror. Consider the light from the object that reflects first from the plane mirror and then from the concave mirror. Draw the ray diagram. What is the distance of the image (di) produced by the concave mirror?
Choose true or false for each statement regarding concave mirrors. true false If an object is placed...
Choose true or false for each statement regarding concave mirrors. true false If an object is placed 4.1 cm from a concave mirror with f = 4 cm, then its image will be enlarged and virtual. true false If an object is placed 8.1 cm from a concave mirror with f = 4 cm, then its image will be enlarged and virtual. true false A concave mirror produces an enlarged virtual image when the object is placed just beyond its focal point (Region...
ASAP, Two plane mirrors make the angle a = 26.0° between them. A ray of light...
ASAP,
Two plane mirrors make the angle a = 26.0° between them. A ray of light incident on one of the mirrors is reflected and it hits the second mirror. Find the angle between the ray incident on the first mirror and the ray reflected off of the second mirror. CE A 23.0 cm tall cup is placed 83.1 cm away from the center of a concave mirror with a focal length of 37.0 cm. What is the height of...
A plane mirror and a concave mirror (f = 6.10 cm) are facing each other and are separated by a distance of 29.0 cm. An object is placed between the mirrors and is 14.5 cm from each mirror. Consider th...
A plane mirror and a concave mirror (f = 6.10 cm) are
facing each other and are separated by a distance of 29.0 cm. An
object is placed between the mirrors and is 14.5 cm from each
mirror. Consider the light from the object that reflects first from
the plane mirror and then from the concave mirror. Find the
location of the image that this light produces in the concave
mirror. Specify this distance relative to the concave
mirror.
Object...
A concave mirror (f1 = 14.4 cm) and a convex mirror (f2 = ?5.80 cm) are...
A concave mirror (f1 = 14.4 cm) and a convex mirror (f2 = ?5.80 cm) are facing each other and are separated by a distance of 36.0 cm. An object is placed between the mirrors and is 18 cm from each mirror. Consider the light from the object that reflects first from the concave mirror and then from the convex mirror. What is the distance of the image (di2) produced by the convex mirror?.
A concave mirror (f1 = 13.6 cm) and a convex mirror (f2 = −5.90 cm) are...
A concave mirror (f1 = 13.6 cm) and a convex mirror (f2 = −5.90 cm) are facing each other and are separated by a distance of 34.0 cm. An object is placed between the mirrors and is 17 cm from each mirror. Consider the light from the object that reflects first from the concave mirror and then from the convex mirror. What is the distance of the image (di2) produced by the convex mirror?.
A concave mirror (f1 = 7.20 cm) and a convex mirror (f2 = ?5.60 cm) are...
A concave mirror (f1 = 7.20 cm) and a convex mirror (f2 = ?5.60 cm) are facing each other and are separated by a distance of 49.6 cm. An object is placed between the mirrors and is 24.8 cm from each mirror. Consider the light from the object that reflects first from the concave mirror and then from the convex mirror. What is the distance of the image (di2) produced by the convex mirror?
A plane mirror and a concave
mirror (f = 8.50 cm) are facing each other and are separated by a
distance of 24.5 cm. An object is placed between the mirrors and is
12.3 cm from each mirror. Consider the light from the object that
reflects first from the plane mirror and then from the concave
mirror. What is the distance of the image (di) produced
by the concave mirror?
1. A plane mirror and a concave mirror (f= 8.50...
ASAP,
Two plane mirrors make the angle a = 26.0° between them. A ray of light incident on one of the mirrors is reflected and it hits the second mirror. Find the angle between the ray incident on the first mirror and the ray reflected off of the second mirror. CE A 23.0 cm tall cup is placed 83.1 cm away from the center of a concave mirror with a focal length of 37.0 cm. What is the height of...
A plane mirror and a concave mirror (f = 6.10 cm) are
facing each other and are separated by a distance of 29.0 cm. An
object is placed between the mirrors and is 14.5 cm from each
mirror. Consider the light from the object that reflects first from
the plane mirror and then from the concave mirror. Find the
location of the image that this light produces in the concave
mirror. Specify this distance relative to the concave
mirror.
Object...
