help me with this problem please :( Design a digital circuit that having an 8-bit binary...

help me with this problem please :(

Design a digital circuit that having an 8-bit binary number at its input, shows the quantity of 1's and 0's it contains and the difference between both quantities.

The output must be represented by 3 display’s:
○ Quantity of 1’s
○ Quantity of 0’s
○ Difference 1’s - 0’s

The procedure for the design of digital circuits must be carried out, including the digital diagram, using a block view.

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

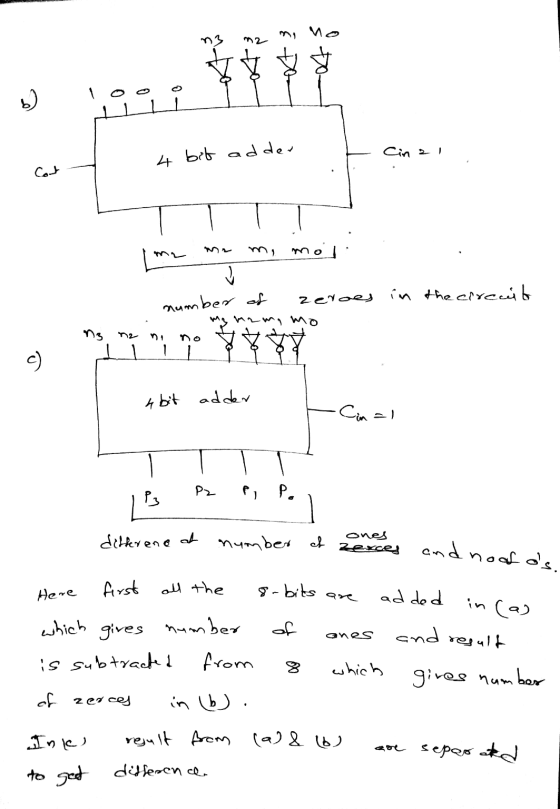

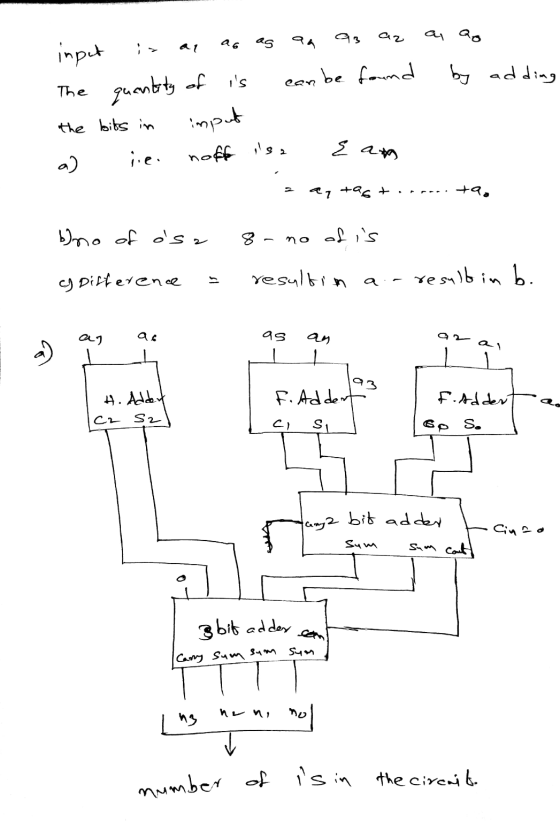

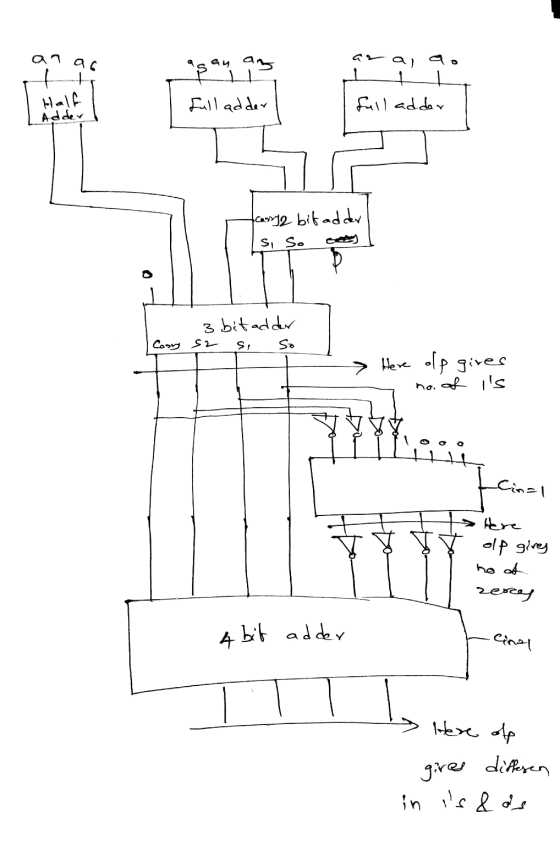

Answer 1

Answer #1

Add a comment
