Help with the next problem Design a digital circuit that determines the amount of 1's and...

Help with the next problem

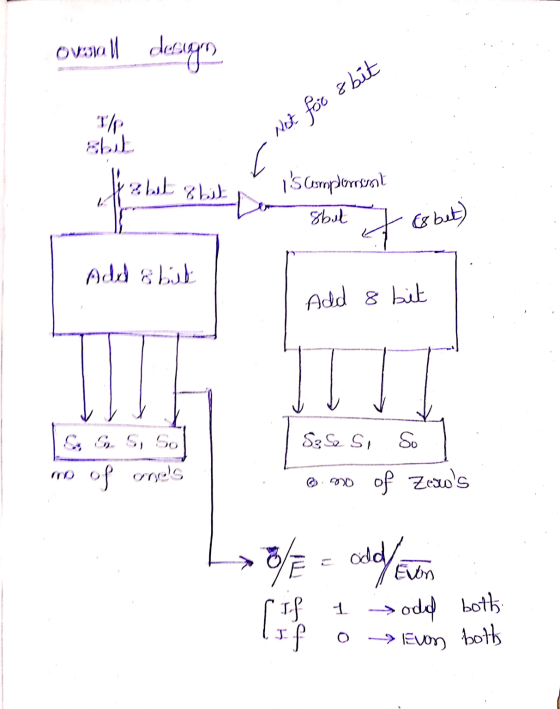

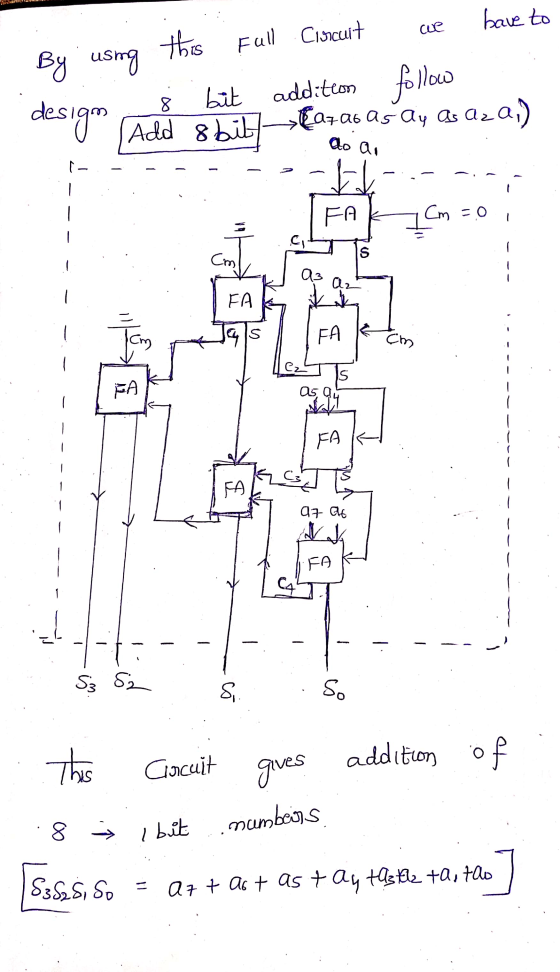

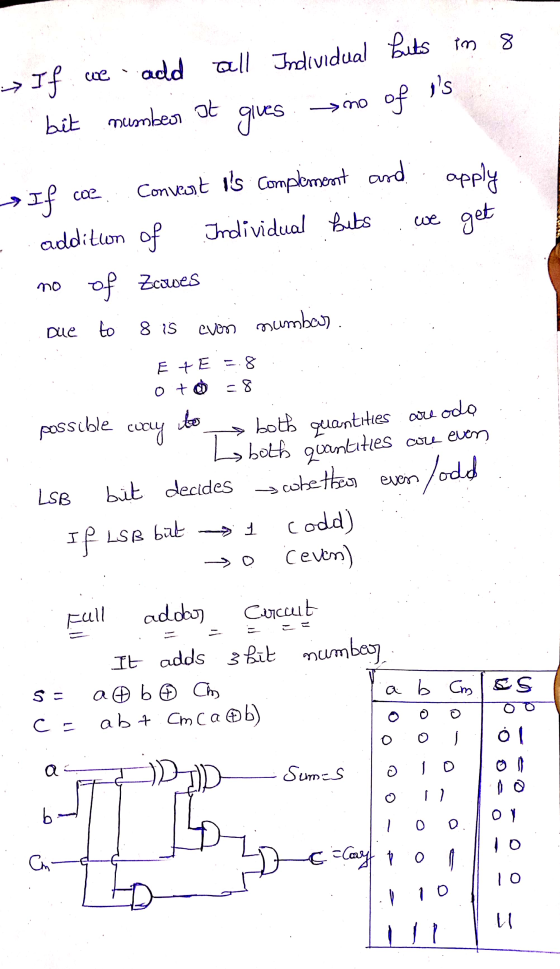

Design a digital circuit that determines the amount of 1's and 0's in an 8-bit binary number and checks whether both quantities are even or odd.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

if you have any doubt please post it

0 0
