A glass electrode is calibrated using two standards and the voltage of the electrode in each...
A glass electrode is calibrated using two standards and the voltage of the electrode in each standard was measured. The voltage of an unknown solution was also measured. All measurements were conducted at 20o C. Using the data calculate the pH of the unknown solution and give your answer rounded to two decimal places.
| Sample Name | pH Value (unitless) | Voltage (mV) |
| Standard 1 | 1.672 | + 300.0 |
| Standard 2 | 6.940 | + 17.7 |
| Unknown | + 140.0 |

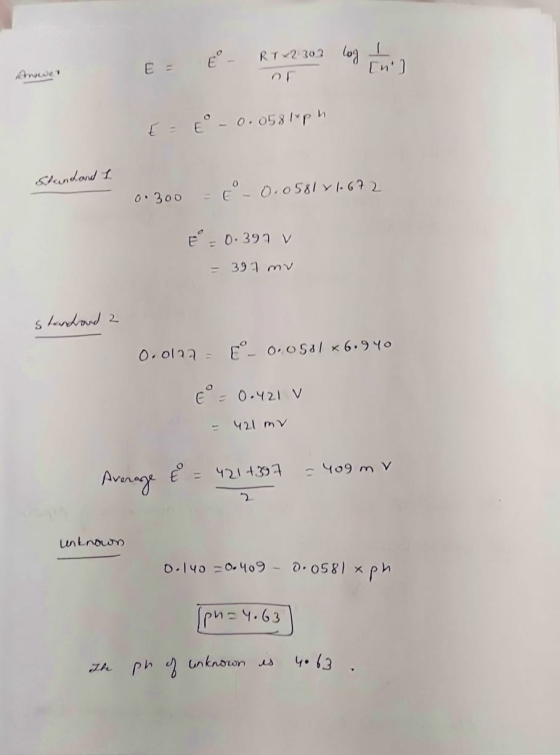

Homework Answers
