Question

Machine Problem 7: Structures ---- TO BE COMPLETED IN C++

This assignment is to give you practice using one-dimensional arrays and sorting.

In competitive diving, each diver makes dives of varying degrees of difficulty. Nine judges score each dive from 0 through 10 in steps of 0.5. The difficulty is a floating-point value between 1.0 and 3.0 that represents how complex the dive is to perform. The total score is obtained by discarding the lowest and highest of the judges’ scores, adding the remaining scores, and then multiplying that total by the degree of difficulty. Write a program to score each of the dives, using the following input and output specifications, and determine the winner of the competition.

Input:

Create the file m6dive.txt

The first line contains an integer for the number of divers in the competition and subsequent lines contain:
Diver’s name (10 characters max, no blanks included), difficulty (double), and judges’ ratings (nine doubles). There is one line of data for each diver.

Example file:

Anne	2.0	8.0	8.5	8.5	8.5	9.0	9.0	9.0	9.5	9.5	124.0
Sarah	1.6	7.0	7.5	8.0	8.0	8.0	8.5	8.5	8.5	9.0	91.2

Output:

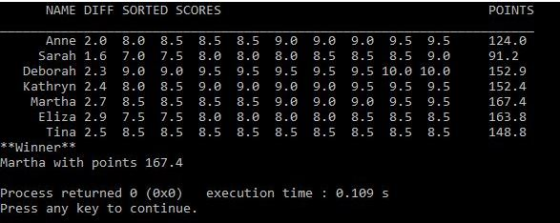

The name and difficulty, followed by the scores sorted into increasing order, in tabular form with appropriate headings along with the earned total points for that dive.

Example for sample data above

NAME	DIFF	SORTED SCORES									POINTS
Anne	2.0	8.0	8.5	8.5	8.5	9.0	9.0	9.0	9.5	9.5	124.0
Sarah	1.6	7.0	7.5	8.0	8.0	8.0	8.5	8.5	8.5	9.0	91.2

At the end of the table, print out the name of the winner of the competition (the person with the highest points) and his/her final score.

Hint: Use functions to modularize your program.

NAME	DIFF	SORTED SCORES
Anne	2.0	8.0	8.5	8.5	8.5	9.0	9.0	9.0	9.5	9.5
Sarah	1.6	7.0	7.5	8.0	8.0	8.0	8.5	8.5	8.5	9.0
Deborah	2.3	9.0	9.0	9.5	10.0	10.0	9.5	9.5	9.5	9.5
Kathryn	2.4	9.0	9.0	9.0	9.5	9.5	9.5	9.0	8.0	8.5
Martha	2.7	9.0	9.0	9.5	9.5	9.0	8.5	8.5	8.5	8.5
Elizabeth	2.9	8.0	8.0	7.5	8.5	8.5	8.0	8.0	7.5	8.5
Tina	2.5	8.5	8.5	8.5	8.5	8.5	8.5	8.5	8.5	8.5

Answer 1

Cpp Code for the given question:

#include <iostream>
#include <string>
#include <fstream>
#include <iomanip>
using namespace std;
int findWinner(double finalScores[], int n);
void sort(double * arr);
int main(){
ifstream ifs;
//open the file
ifs.open("D://m6dive.txt");
//I saved the file in D drive as m6dive.txt
string names[100];//for diver's names
double diff[100];//for difficulty
static double finalScores[100];//for total socres
double min[100];//for minimum score of a diver
double max[100];//for maximum score of a diver
if (ifs.fail()){
cout << "Input file cannot be opened" << endl;
}
//Read first line of the file. The first line contains an integer for the
//number of divers in the competition
int no_divers;
ifs >> no_divers;
//Creating score arrays for each diver
double **scores=new double *[no_divers];
//Read each diver information and calculate scores
int i = 0;
while (i < no_divers){
//Allocate space for a single dimensional array of size 9
scores[i] = new double[9];
//read diver name
ifs >> names[i];
//read difficulty
ifs >> diff[i];
//read first judges score
ifs >> scores[i][0];
//initialize min and max
min[i] = scores[i][0];
max[i] = scores[i][0];
//Read remaining judges scores2-scores9
for (int j = 1; j < 9; j++){
ifs >> scores[i][j];
//find minimum score and maximum score
if (min[i] > scores[i][j])
min[i] = scores[i][j];
if (max[i] < scores[i][j])
max[i] = scores[i][j];
}
//Find the total score
for (int j = 0; j < 9; j++){
finalScores[i] += scores[i][j];//
}
finalScores[i] -= min[i];//discard minimum score
finalScores[i] -= max[i];//discard maximum score
finalScores[i] = finalScores[i] * diff[i];//multiply the sum with difficulty
i++;//move to next diver info
}
//Display the output
i = 0;
cout << setw(10)<<"NAME"<<" DIFF "<< resetiosflags(ios::left ) << setw(5);
cout << "SORTED SCORES\t\t\t\t\tPOINTS" << endl;
cout << "______________________________________________________________________" << endl;
while (i < no_divers){
//pass a single dimensional score array to sort
sort(&scores[i][0]);
//Print diver info with sorted scores
cout << setw(10)<< resetiosflags(ios::left)<<names[i]<< " "<< setprecision(1) << fixed<<diff[i];
for (int j = 0; j < 9; j++)
cout << setw(5) << setprecision(1) << fixed << scores[i][j] ;
cout<< "\t"<<finalScores[i] << endl;
i++;
}
//Find winner
int winner = findWinner(finalScores, no_divers);
cout << "**Winner**\n" << names[winner] << " with points " << finalScores[winner] << endl;
return 0;
}
//sorting a single dimensional array
void sort(double * arr){
double temp = 0;
for (int i = 0; i < 9; i++)
{
for (int j = 0; j < 9; j++)
{
if (arr[i] < arr[j])
{
temp = arr[i];
arr[i] = arr[j];
arr[j] = temp;
}
}
}
}
//Returns the index of the winner
int findWinner(double finalScores[],int n){
double temp = finalScores[0];
int index = 0;
for (int i = 0; i < n; i++){
if (temp < finalScores[i]){
temp = finalScores[i];
index = i;
}
}
return index;
}

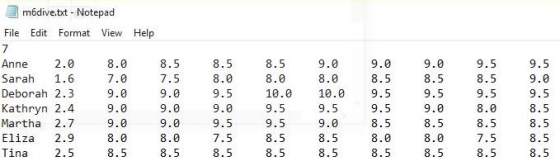

m6dive.txt:

7

Anne 2.0 8.0 8.5 8.5 8.5 9.0 9.0 9.0 9.5 9.5

Sarah 1.6 7.0 7.5 8.0 8.0 8.0 8.5 8.5 8.5 9.0

Deborah 2.3 9.0 9.0 9.5 10.0 10.0 9.5 9.5 9.5 9.5

Kathryn 2.4 9.0 9.0 9.0 9.5 9.5 9.5 9.0 8.0 8.5

Martha 2.7 9.0 9.0 9.5 9.5 9.0 8.5 8.5 8.5 8.5

Eliza 2.9 8.0 8.0 7.5 8.5 8.5 8.0 8.0 7.5 8.5

Tina 2.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5

Text file:
