Question

1. what is Access Control Lists (ACL) and how they are used on servers and on a network. Explain any similarities and differences in how ACLs are used. Research and describe at least two outside references that discusses ACLs and their use for security.

Answer 1

Answer:

Access Control List (ACL) are filters that enable you to control which routing updates or packets are permitted or denied in or out of a network. They are specifically used by network administrators to filter traffic and to provide extra security for their networks. This can be applied on routers (Cisco).

Access lists filter network traffic by controlling whether routed packets are forwarded or blocked at the router's interfaces. Your router examines each packet to determine whether to forward or drop the packet, on the basis of the criteria you specified within the access lists.

Access list criteria could be the source address of the traffic, the destination address of the traffic, the upper-layer protocol, or other information. Note that sophisticated users can sometimes successfully evade or fool basic access lists because no authentication is required.

Why we Should Configure Access Lists

There are many reasons to configure access lists; for example, you can use access lists to restrict contents of routing updates or to provide traffic flow control. One of the most important reasons to configure access lists is to provide security for your network, which is the focus of this chapter.

You should use access lists to provide a basic level of security for accessing your network. If you do not configure access lists on your router, all packets passing through the router could be allowed onto all parts of your network.

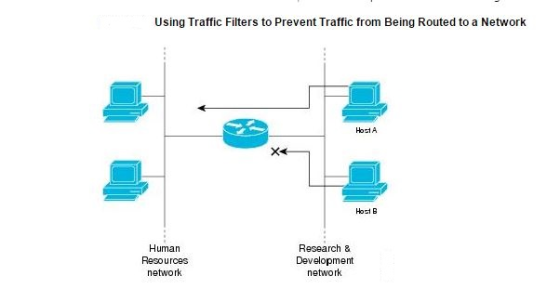

Access lists can allow one host to access a part of your network and prevent another host from accessing the same area. In host A is allowed to access the Human Resources network, and host B is prevented from accessing the Human Resources network.

When to Configure Access Lists

Access lists should be used in "firewall" routers, which are often positioned between your internal network and an external network such as the Internet. You can also use access lists on a router positioned between two parts of your network, to control traffic entering or exiting a specific part of your internal network.

To provide the security benefits of access lists, you should at a minimum configure access lists on border routers—routers situated at the edges of your networks. This provides a basic buffer from the outside network, or from a less controlled area of your own network into a more sensitive area of your network.

On these routers, you should configure access lists for each network protocol configured on the router interfaces. You can configure access lists so that inbound traffic or outbound traffic or both are filtered on an interface.

Access lists must be defined on a per-protocol basis. In other words, you should define access lists for every protocol enabled on an interface if you want to control traffic flow for that protocol.
