A charged particle is injected at 225 m/s into a 0.0715‑T uniform magnetic magnetic field perpendicularly...

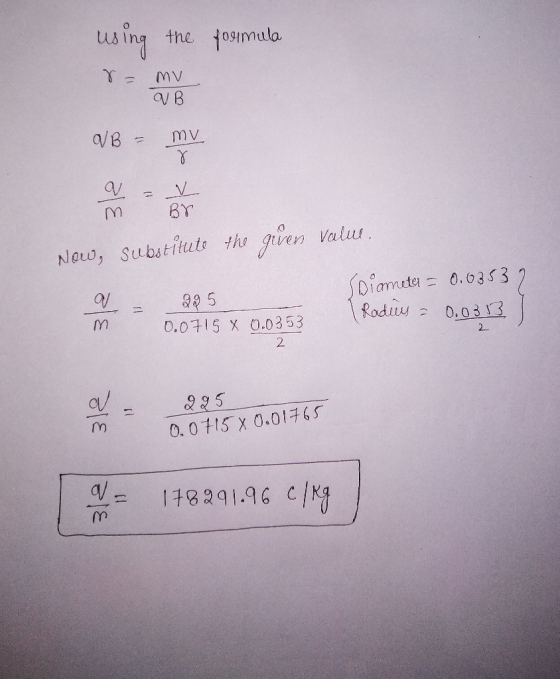

A charged particle is injected at 225 m/s into a 0.0715‑T uniform magnetic magnetic field perpendicularly to the field. The diameter of its orbit is measured and found to be 0.0353 m. What is the charge–to–mass ratio of this particle?
Homework Answers
please rate thanks.Add Answer to:
A charged particle is injected at 225 m/s into a 0.0715‑T
uniform magnetic magnetic field perpendicularly...
A charged particle is injected at 195 m/s into a 0.0773-T uniform magnetic magnetic field perpendicularly...
A charged particle is injected at 195 m/s into a 0.0773-T uniform magnetic magnetic field perpendicularly to the field. The diameter of its orbit is measured and found to be 0.0467 m. What is the charge-to-mass ratio of this particle?
q1 A charged particle is injected at 213 m/s into a 0.0649-T uniform magnetic magnetic field...
q1 A charged particle is injected at 213 m/s into a 0.0649-T uniform magnetic magnetic field perpendicularly to the field. The diameter of its orbit is measured and found to be 0.0405 m. What is the charge-to-mass ratio of this particle?
A particle injected into the area filled with uniform 0.1-T magnetic field with initial speed of...
A particle injected into the area filled with uniform 0.1-T magnetic field with initial speed of 250 m/s follows the path shown in the Figure. Find the charge-to-mass ratio of the particle. B0.10T 0.20 m y = 250 m/s
A charged particle moves in a uniform magnetic field of 0.817 T with a period of...
A charged particle moves in a uniform magnetic field of 0.817 T with a period of 2.31x10^-6 s. Find its charge to mass ratio.
A charged particle moves in a uniform magnetic field of 0.753 T with a period of...
A charged particle moves in a uniform magnetic field of 0.753 T with a period of 8.63×10−6 s. Find its charge-to-mass ratio.
A charged particle moves in a uniform magnetic field of 0.829 T with a period of 3.09×10−6 s. Find its charge-to-mass ratio |?|/?.
A charged particle moves in a uniform magnetic field of 0.829 T with a period of 3.09×10−6 s. Find its charge-to-mass ratio |?|/?.
Active Figure Motion of a Charged Particle in a Uniform Magnetic Field The animation below illustrates...
Active Figure Motion of a Charged Particle in a Uniform Magnetic Field The animation below illustrates a charged particle moving in circular motion due to the magnetic force caused by a constant and uniform magnetic field oriented into the page. The blue crosses represent the tails of the magnetic field vectors nstructions: Use the blue sliders to adjust the mass, speed, particle charge and magnetic field magnitude. Change each parameter and observe the eftect on the particle's motion. If the...
A negatively charged particle in a uniform magnetic field follows a circular path. The particle's speed is...
A negatively charged particle in a uniform magnetic
field follows a circular path. The particle's speed is
240 m/s, the magnitude of the magnetic field is 0.28 T, and the
radius of the path is 830 m. a) Determine the mass of the
particle, given that its charge has a magnitude of 9.6 x 10^-4 C.
b) Choose the sketch which correctly shows the direction of the
magnetic field (in red) and the direction of the particle's
circular motion (in green)....
After being accelerated to a speed of 1.11x10 m/s, the particle enters a uniform magnetic field of strength 0.700 T
J.J. Thomson is best known for his discoveries about the nature of cathode rays. His other important contribution was the invention, together with one of his students, of the mass spectrometer, a device that measures the ratio of mass m to positive) charge q of an ion. The spectrometer consists of two regions as shown in the figure. (Figure 1) In the first region an electric field accelerates the ion and in the second the ion follows a circular are in...
A charged particle is moving in a uniform magnetic field at a speed of 1.1×103m/s in...
A charged particle is moving in a uniform magnetic field at a speed of 1.1×103m/s in a direction 73° from the direction of the field. The particle’s charge is 4.7 μC and the magnetic force acting on it is 0.0012 N. What is the strength of the magnetic field?
A charged particle is injected at 195 m/s into a 0.0773-T uniform magnetic magnetic field perpendicularly to the field. The diameter of its orbit is measured and found to be 0.0467 m. What is the charge-to-mass ratio of this particle?
A particle injected into the area filled with uniform 0.1-T magnetic field with initial speed of 250 m/s follows the path shown in the Figure. Find the charge-to-mass ratio of the particle. B0.10T 0.20 m y = 250 m/s
Active Figure Motion of a Charged Particle in a Uniform Magnetic Field The animation below illustrates a charged particle moving in circular motion due to the magnetic force caused by a constant and uniform magnetic field oriented into the page. The blue crosses represent the tails of the magnetic field vectors nstructions: Use the blue sliders to adjust the mass, speed, particle charge and magnetic field magnitude. Change each parameter and observe the eftect on the particle's motion. If the...
A negatively charged particle in a uniform magnetic
field follows a circular path. The particle's speed is
240 m/s, the magnitude of the magnetic field is 0.28 T, and the
radius of the path is 830 m. a) Determine the mass of the
particle, given that its charge has a magnitude of 9.6 x 10^-4 C.
b) Choose the sketch which correctly shows the direction of the
magnetic field (in red) and the direction of the particle's
circular motion (in green)....
