Question

Two charged proteins P1 and P2 are located at positions (1m,1m) and (-1m , 1m) respectiely...

Two charged proteins P1 and P2 are located at positions (1m,1m) and (-1m , 1m) respectiely on a cartesian plane. they have charges of 1.0nC and -1.0nC respectively. Compute the electrical potential V and compute the electrical field vector ETOT at the origin

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

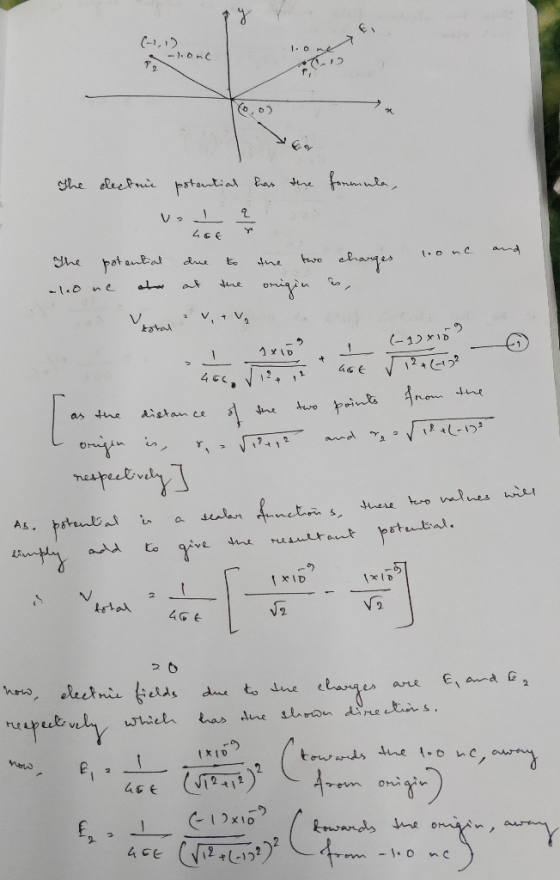

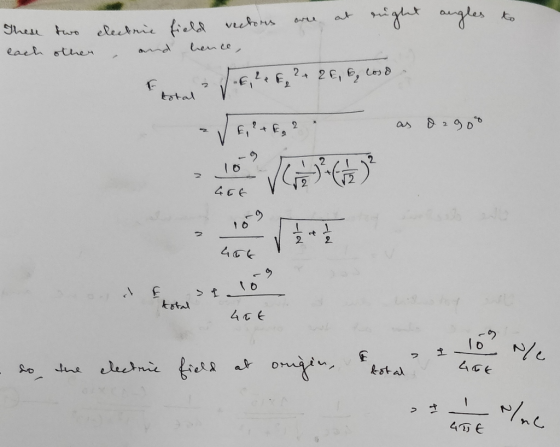

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Two charged proteins P1 and P2 are located at positions (1m,1m) and (-1m , 1m) respectiely...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • two charged proteins p1 and p2 are located at positions (1m,1m) and (-1m,1m) respectively on a...

    two charged proteins p1 and p2 are located at positions (1m,1m) and (-1m,1m) respectively on a cartesian coordinate system. They have charges of 1.0nC and -1.0 nC respectively. a) compute the electric potential V at the origin b) Compute the electric field vector Etot, at the origin

  • Two charged proteins P1 and P2 are located at positions (1m,1m) and (-1m,1m) respectively on a...

    Two charged proteins P1 and P2 are located at positions (1m,1m) and (-1m,1m) respectively on a Cartesian coordinate system. They have charges of 1.0 nC and -1.0 nC respectively. A key enzyme E1 which regulates an important biochemical pathway, is located at the origin of the coordinate system. a) Compute the electric potential V at the position of E1. b) Draw a vector diagram for the electric field vector Etot., at the position of E1 c) Show, or argue, that...

  • two charged proteins P1 and P2 are located at the positions (1m,1m) and (-1m,1m) respectively on...

    two charged proteins P1 and P2 are located at the positions (1m,1m) and (-1m,1m) respectively on a cartesian cordinate system. They have charges of 1.0 nC and -1.0 nC. a) compute the electric potential V at origin. b) compute the electric field vector Etotal, at the origin

  • 2 charged portions p1 and p2 are located at positions (1m,1m) and (-1m,1m) respectively on a...

    2 charged portions p1 and p2 are located at positions (1m,1m) and (-1m,1m) respectively on a cartesian coordinate system. they have charges of 1.0 nC and -1.0 nC respectively . a) compute the electric potential V at the origin. b) compute the electric field vector Etot at the origin

  • 4. Two charged rods are arranged as shown in the figure. Each rod has a charge...

    4. Two charged rods are arranged as shown in the figure. Each rod has a charge per unit length of 2 c/m. Find the Electrical Field and the potential at the origin. 3m 1m 1m 3m

  • PROBLEM 1, Chapter 4 Three point charges Q1- lnC, Q2- 4nC and Q3--2nC are located at P1-[1 0 1], ...

    PROBLEM 1, Chapter 4 Three point charges Q1- lnC, Q2- 4nC and Q3--2nC are located at P1-[1 0 1], P2-[0 1 1] and P3-[ 1 1 0] respectively. Find the total energy in the system Solution Complete MATLAB code then run it or use MATLAB steps as a guidance to compute the answers manually. clear; clc; QI-le-9 -i Q2-409 ; Q3--209 ; % Charges P1-[ 1 0 1 ]; P2-[ 0 1 1 ], P3-[ 1 1 0 ]; %...

  • a) In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions...

    a) In the picture below, the 3 charges Q1, Q2 and Q3 are located at positions (-a,0), (a,0) and (0,-d) respectively. (The origin is the point halfway between Q1 and Q2.) Consider the special case where Q1, Q3 greater than zero and Q2 = -Q1. Select true or false for each statement. The force on Q3 due to the other two charges is zero. The electric potential at any point along the y-axis is positive. If Q3 is released from...

  • Electric charges of - 10 nC, + 10 nC, and + 20 nC are located in...

    Electric charges of - 10 nC, + 10 nC, and + 20 nC are located in the x-y plane at positions of (0, 0.5), (0, -0.5), and (0.5, 0), respectively, where the positions are expressed in m. What is the value of the electric potential at the position of the 20 nC charge, and what is its electrical potential energy? a. 360 V and 14 micro joules b. 0 V and 0 J c. -250V and -5 micro joules d....

  • Two charges exist along the x-axis, q1 = +1.9 mC and is located at (-8.1, 0)...

    Two charges exist along the x-axis, q1 = +1.9 mC and is located at (-8.1, 0) m and q2 = -8 mC and is located at (-7.3, 0) m. Determine: a) The electrical potential at the origin: _____ V b) The electrical potential at the point (0,4.4) m: _____ V

  • Two small, charged balls are located on the x-y plane. Each tic mark in the graph...

    Two small, charged balls are located on the x-y plane. Each tic mark in the graph bellow is one meter. One ball is at (-8,8) and the other is at (4,4). Assume the balls cannot move. Please explain each answer and round to 2 significant figures. a) Calculate the magnitude of the total electric field due to both balls at the origin. b) State the direction of the total electric field due to both balls at the origin. c) Calculate...
