1. A ray of light strikes from water, whose refractive index is 4/3 towards air that...
1. A ray of light strikes from water, whose refractive index is
4/3 towards air that has a refractive index of 1.0.

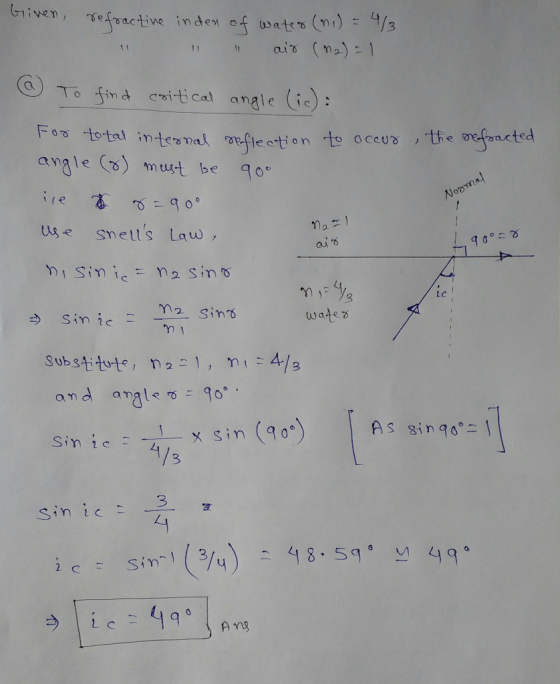

a) Determine the critical angle for total internal reflection to
occur in this case.

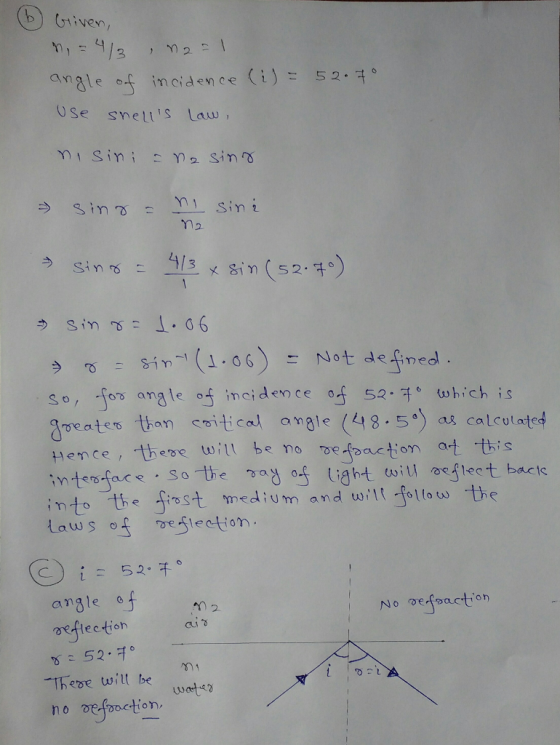

b) If a ray of angle 52.7 with the normal, from water to air;
Determine the angle to which the beam is refracted in air.
c) Make a ray diagram that illustrates the situation of part
b.

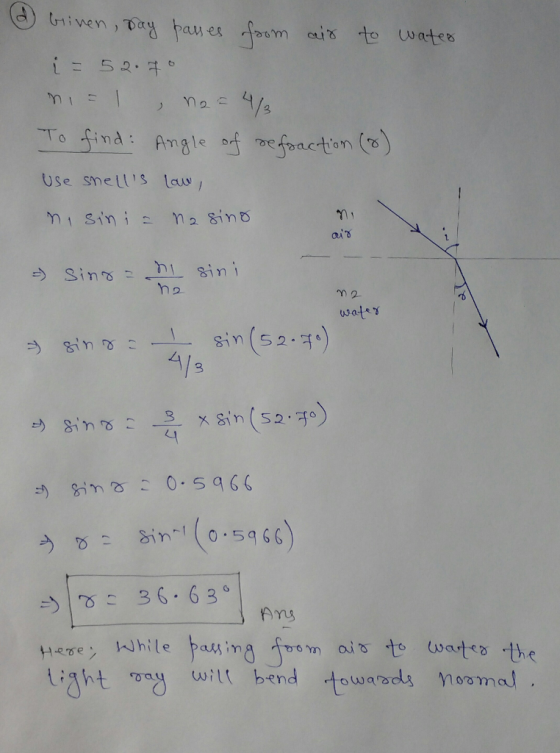

d) If the ray of part b will affect air to water, how much would be
the angle of refraction of water
Homework Answers
