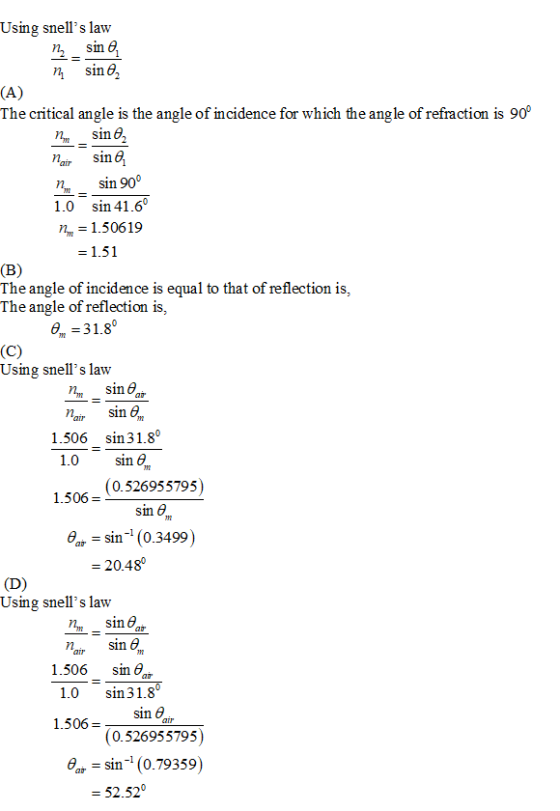

1- A- The refractive index of a transparent material can be determined by measuring the critical...
1- A- The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If θc= 41.6° what is the index of refraction of the material?
B- A light ray strikes this material (from air) at an angle of 31.8° with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees).
C- Calculate the angle of the refracted ray (in degrees).
D- Assume now that the light ray exits the material. It strikes
the material-air boundary at an angle of 31.8° with respect to the
normal. What is the angle of the refracted ray?
Homework Answers
Add Answer to:
1- A- The refractive index of a transparent material can be
determined by measuring the critical...
The refractive index of a transparent material can be determined by measuring the critical angle when...
The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If θc= 40.3° what is the index of refraction of the material? Tries 0/20 A light ray strikes this material (from air) at an angle of 34.7° with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees). Tries 0/20 Calculate the angle of the refracted ray (in degrees). Tries 0/20 Assume now...
The refractive index of a transparent material can be determined by measuring the critical angle when...
The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If theta_c = 40.5 degree what is the index of refraction of the material? Tries 0/12 A light ray strikes this material (from air) at an angle of 36.0 degree with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees). Tries 0/12 Calculate the angle of the refracted ray (in degrees). Tries...
The refractive index of a transparent material can be determined by measuring the critical angle when...
The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If Oc= 40.4º what is the index of refraction of the material? 1.54 You are correct. Previous Tries A light ray strikes this material (from air) at an angle of 37.2° with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees). 23.07 Submit Answer Incorrect. Tries 3/20 Previous Tries Calculate the angle...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
1.The core of an optical fiber is made out of a transparent material with a refractive...
1.The core of an optical fiber is made out of a transparent material with a refractive index of 1.50 and the cladding is made out material with a refractive index of 1.44. As shown in the figure, a monochromatic light ray travels in air incident on the one side of the optical fiber and refracted. After that, the refracted ray will enter the core-cladding interface with its corresponding critical angle C. a) Calculate the value of 0? b) Find the...
1. A ray of light strikes from water, whose refractive index is 4/3 towards air that...
1. A ray of light strikes from water, whose refractive index is 4/3 towards air that has a refractive index of 1.0. a) Determine the critical angle for total internal reflection to occur in this case. b) If a ray of angle 52.7 with the normal, from water to air; Determine the angle to which the beam is refracted in air. c) Make a ray diagram that illustrates the situation of part b. d) If the ray of part...
1) In a ruby laser, light is produced in a solid rod of ruby, with refractive...
1) In a ruby laser, light is produced in a solid rod of ruby, with refractive index 1.77. The light emerges from the end of the rod into the surrounding air. Part A At what angle should the rod end be cut so the emerging light is fully polarized? 2) A beam of white light is incident on the surface of a diamond at an angle θa. (Figure 1) Since the index of refraction depends on the light's wavelength, the...
At an interface between an unknown transparent material and water, a ray of light is incident...
At an interface between an unknown transparent material and water, a ray of light is incident from the water side at an angle of 30.0 degrees to the normal. The refracted ray makes an angle of 25.0 degrees. A) what is the index of refraction for the unknown material? B) what is the critical angle for total internal reflection for the interface described? C) Make a drawing showing the geometry for rays that would undergo total internal reflection at this...
3a. Light traveling in air encounters a flat side of a solid block of a transparent...
3a. Light traveling in air encounters a flat side of a solid block of a transparent material that is completely immersed in air, i.e., it is completely surrounded by the air. Some of the incident light is reflected back into the air and some enters the material. If the angle of incidence that the light makes at the flat side is 16.8 degrees, what is the angle that the light is reflected back into the air relative to a perpendicular...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2:...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If theta_c = 40.5 degree what is the index of refraction of the material? Tries 0/12 A light ray strikes this material (from air) at an angle of 36.0 degree with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees). Tries 0/12 Calculate the angle of the refracted ray (in degrees). Tries...
The refractive index of a transparent material can be determined by measuring the critical angle when the solid is in air. If Oc= 40.4º what is the index of refraction of the material? 1.54 You are correct. Previous Tries A light ray strikes this material (from air) at an angle of 37.2° with respect to the normal of the surface. Calculate the angle of the reflected ray (in degrees). 23.07 Submit Answer Incorrect. Tries 3/20 Previous Tries Calculate the angle...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
1.The core of an optical fiber is made out of a transparent material with a refractive index of 1.50 and the cladding is made out material with a refractive index of 1.44. As shown in the figure, a monochromatic light ray travels in air incident on the one side of the optical fiber and refracted. After that, the refracted ray will enter the core-cladding interface with its corresponding critical angle C. a) Calculate the value of 0? b) Find the...
3a. Light traveling in air encounters a flat side of a solid block of a transparent material that is completely immersed in air, i.e., it is completely surrounded by the air. Some of the incident light is reflected back into the air and some enters the material. If the angle of incidence that the light makes at the flat side is 16.8 degrees, what is the angle that the light is reflected back into the air relative to a perpendicular...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
