Highway curves are marked with a suggested speed. If this speed is based on what would...

Highway curves are marked with a suggested speed. If this speed is based on what would be safe in wet weather, estimate the radius of curvature for a curve marked 55 km/h . The coefficient of static friction of rubber on wet concrete is μs=0.7, the coefficient of kinetic friction of rubber on wet concrete is μk=0.5.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

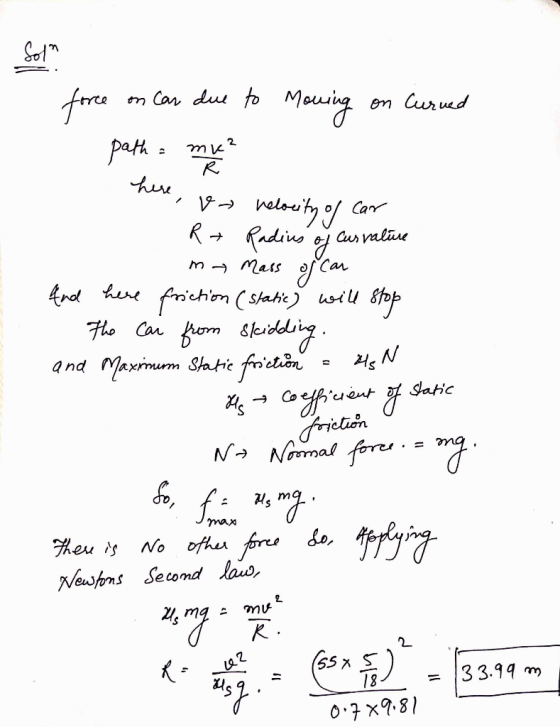

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Highway curves are marked with a suggested speed. If this speed is based on what would...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A curve in a highway has radius of curvature 130 m and is banked at 3.4°....

    A curve in a highway has radius of curvature 130 m and is banked at 3.4°. The coefficients of friction are μs= 0.28 and μk = 0.15. What is the fastest safe speed to drive this curve? You must take into account the coefficient of friction for this problem. The answer is not 8.70 m/s nor 27.37 m/s. Thank you for your help.

  • A 1500-kg truck rounds an unbanked curve on the highway at a speed of 20.0 m/s....

    A 1500-kg truck rounds an unbanked curve on the highway at a speed of 20.0 m/s. the radius of the curvature of the curve is 80-m. calculate the coefficient of friction - is this cofficient of static or kinetic friction?

  • A concrete highway curve of radius 70.0 m is banked at an 11 degree angle. What...

    A concrete highway curve of radius 70.0 m is banked at an 11 degree angle. What is the maximum speed with which a 1200 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • Problem 3 Engineers often bank highway curves to reduce the vehicle’s reliance on friction while navigating...

    Problem 3 Engineers often bank highway curves to reduce the vehicle’s reliance on friction while navigating turns. If the bank is angled properly, the posted speed limit is effective in both wet and dry weather. For a curve of radius 13 0m and a speed limit of 100 km/hr, what is the minimum bank angle such that a reliance on friction is not necessary?

  • A concrete highway curve of radius 70.0 m is banked at a 19.0° angle

    A concrete highway curve of radius 70.0 m is banked at a 19.0° angle. What is the maximum speed with which a 1900 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • A concrete highway curve of radius 80.0 m is banked at a 19.0 ∘ angle. Part...

    A concrete highway curve of radius 80.0 m is banked at a 19.0 ∘ angle. Part A What is the maximum speed with which a 1400 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • A concrete highway curve of radius 80.0 m is banked at a 13.0 ∘ angle. Part...

    A concrete highway curve of radius 80.0 m is banked at a 13.0 ∘ angle. Part A What is the maximum speed with which a 1200 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.) Express your answer with the appropriate units.

  • Engineering a highway curve. If a car goes through a curve too fast, the car tends...

    Engineering a highway curve. If a car goes through a curve too fast, the car tends to slide out of the curve. For a banked curve with friction, a frictional force acts on a fast car to oppose the tendency to slide out of the curve; the force is directed down the bank (in the direction water would drain). Consider a circular curve of radius R = 270 m and bank angle θ, where the coefficient of static friction between...

  • In order to design safe high-speed entrance and exit ramps, highway engineers need to know about...

    In order to design safe high-speed entrance and exit ramps, highway engineers need to know about the force of friction and the maximum speeds that motorists can navigate these ramps. Suppose the coefficients of friction between rubber tires and asphalt are µs = 0.35 for static friction and µk = 0.25 for kinetic friction. You are the highway engineer charged with construction of a new freeway exit ramp. (a) Make a free-body diagram showing all of the forces acting on...

  • 015 10.0 points A highway curves to the left with radius of curvature of 34 m...

    015 10.0 points A highway curves to the left with radius of curvature of 34 m and is banked at 18° so that cars can take this curve at higher speeds. Consider a car of mass 1777 kg whose tires have a static friction coefficient 0.58 against the pavement. top view R 34 m 18 rear view μ = 0.58 How fast can the car take this curve without skidding to the outside of the curve? The acceleration of gravity...
