Required information A solid square rod is cantilevered at one end. The rod is 0.7 m...
Required information

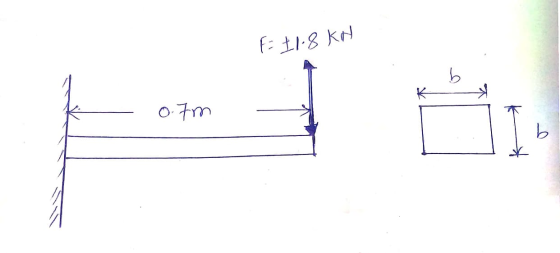

A solid square rod is cantilevered at one end. The rod is 0.7 m long and supports a completely reversing transverse load at the other end of ±1.8 kN. The material is AISI 1080 hot-rolled steel. If the rod must support this load for 5.5 × 105 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end.
Determine the endurance limit for this application. Assume that the size modification factor kb is 0.85 until a size for the section is known.
The endurance limit is MPa.
Homework Answers
Add Answer to:
Required information
A solid square rod is cantilevered at one end. The rod is 0.7 m...
A solid square rod is cantilevered at one end, as shown below. The rod is 0.6...
A solid square rod is cantilevered at one end, as shown below.
The rod is 0.6 m long and supports a completely reversing
transverse load at the other end of 2 kN. The material
is AISI 1080 hot-rolled steel with Sut = 770 Mpa and
Sy = 420 MPa. If the rod must support this load for
104 cycles with a design factor of 1.5, what dimension
should the square cross section have? Neglect any stress
concentration at the support...
A solid square rod is cantilevered at one end. The rod is 1 m long and...
A solid square rod is cantilevered at one end. The rod is 1 m long and supports a completely reversing transverse load at the other end of ±1.5 kN. The material is AISI 1080 hot-rolled steel. If the rod must support this load for 4 × 104 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end. Determine the size of the cross-section.The size of the cross-section...
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long...
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long and supports a completely reversing transverse load at the other end of ±2 kN. The material is AISI 1080 hot-rolled steel If the rod must support this load for 101 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end
A circular rod with a diameter d- 1 in. is cantilevered at one end, and subjected...
A circular rod with a diameter d- 1 in. is cantilevered at one end, and subjected to fully reversed force F= ±250 lbf at its tip. The length of rod is L-24 in The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. For circular cross section,I d'64 Assume that the fully corrected endurance limit S, 50 kpsi Determine the maximum completely reversed stress (ore) under this fatigue loading (15 points) Determine the maximum completely...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 1201bf (downward) to F= -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og at...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Og...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end,...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Oa...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end,...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress Om and alternating stress oa...
A solid square rod is cantilevered at one end, as shown below.
The rod is 0.6 m long and supports a completely reversing
transverse load at the other end of 2 kN. The material
is AISI 1080 hot-rolled steel with Sut = 770 Mpa and
Sy = 420 MPa. If the rod must support this load for
104 cycles with a design factor of 1.5, what dimension
should the square cross section have? Neglect any stress
concentration at the support...
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long and supports a completely reversing transverse load at the other end of ±2 kN. The material is AISI 1080 hot-rolled steel If the rod must support this load for 101 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end
A circular rod with a diameter d- 1 in. is cantilevered at one end, and subjected to fully reversed force F= ±250 lbf at its tip. The length of rod is L-24 in The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. For circular cross section,I d'64 Assume that the fully corrected endurance limit S, 50 kpsi Determine the maximum completely reversed stress (ore) under this fatigue loading (15 points) Determine the maximum completely...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 1201bf (downward) to F= -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og at...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Og...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Oa...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress Om and alternating stress oa...
