A solid square rod is cantilevered at one end, as shown below. The rod is 0.6...

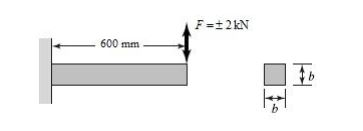

A solid square rod is cantilevered at one end, as shown below.
The rod is 0.6 m long and supports a completely reversing
transverse load at the other end of 2 kN. The material
is AISI 1080 hot-rolled steel with Sut = 770 Mpa and
Sy = 420 MPa. If the rod must support this load for
104 cycles with a design factor of 1.5, what dimension
should the square cross section have? Neglect any stress
concentration at the support end. Use surface factor ka
= 0.488, size factor kb = 0.85, and all other factors
equal to one.
Please explain. Thank you.
Homework Answers
Add Answer to:
A solid square rod is cantilevered at one end, as shown below.
The rod is 0.6...
Required information A solid square rod is cantilevered at one end. The rod is 0.7 m...
Required information A solid square rod is cantilevered at one end. The rod is 0.7 m long and supports a completely reversing transverse load at the other end of ±1.8 kN. The material is AISI 1080 hot-rolled steel. If the rod must support this load for 5.5 × 105 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end. Determine the endurance limit for this application. Assume...
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long...
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long and supports a completely reversing transverse load at the other end of ±2 kN. The material is AISI 1080 hot-rolled steel If the rod must support this load for 101 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end
A solid square rod is cantilevered at one end. The rod is 1 m long and...
A solid square rod is cantilevered at one end. The rod is 1 m long and supports a completely reversing transverse load at the other end of ±1.5 kN. The material is AISI 1080 hot-rolled steel. If the rod must support this load for 4 × 104 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end. Determine the size of the cross-section.The size of the cross-section...
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Og...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end,...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Oa...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end,...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress Om and alternating stress oa...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 1201bf (downward) to F= -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og at...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
6-13 A solid square rod is cantilevered at one end. The rod is 0.6 m long and supports a completely reversing transverse load at the other end of ±2 kN. The material is AISI 1080 hot-rolled steel If the rod must support this load for 101 cycles with a design factor of 1.5, what dimension should the square cross section have? Neglect any stress concentrations at the support end
A beam with a square cross-section of linch X 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Og...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress Oa...
a A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to force that fluctuates from F = 120lbf (downward) to F = -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress Om and alternating stress oa...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
A beam with a square cross-section of linch x 1inch is cantilevered at one end, and subjected to a force that fluctuates from F = 1201bf (downward) to F= -600lbf (upward) at its tip. The length of beam is L = 25 inches. The selected steel material has mechanical properties as shown in the following S-N fatigue diagram. Hint: neglect any stress concentration at the support end. (a) (4 points) Calculate the midrange stress om and alternating stress og at...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
