In an Atwood's machine, one block has a mass of 826.0 g, and the other a...

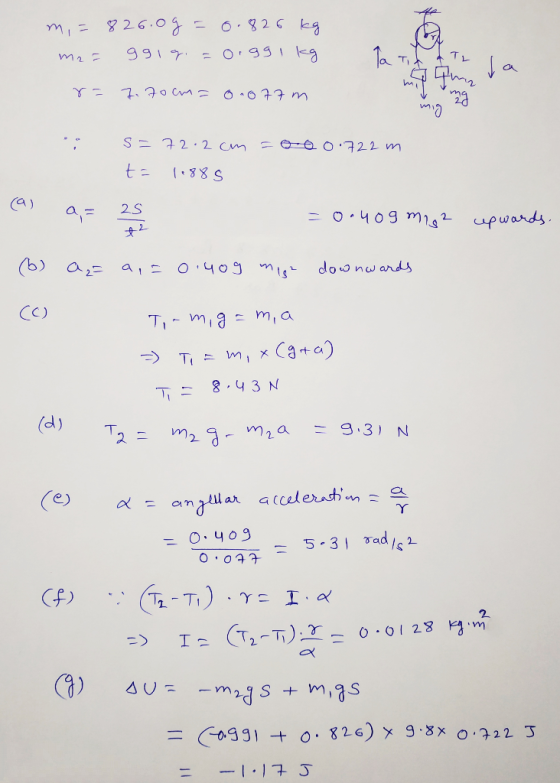

In an Atwood's machine, one block has a mass of 826.0 g, and the other a mass of 991.0 g. The pulley, which is mounted in horizontal frictionless bearings, has a radius of 7.70 cm. When released from rest, the heavier block is observed to fall 72.2 cm in 1.88 s (without the string slipping on the pulley). What is the magnitude of the acceleration of the 826.0-g block? What is the magnitude of the acceleration of the 991.0-g block? What is the magnitude of the tension in the part of the cord that supports the 826.0-g block? What is the magnitude of the tension in the part of the cord that supports the 991.0-g block? What is the magnitude of the angular acceleration of the pulley? What is the rotational inertia of the pulley? What is the change in the potential energy of the system after 1.88 s?
Homework Answers
Add Answer to:
In an Atwood's machine, one block has a mass of 826.0
g, and the other a...
An Atwood's machine has one block of m1 = 0.370 kg and the other is of...
An Atwood's machine has one block of m1 = 0.370 kg and the other is of m2 = 0.420 kg. The disk pulley, which is mounted in horizontal, frictionless bearings, has a radius of 5.0 cm. When released from rest, the heavier block is observed to fall Δy = 92.0 cm in 4.7 sec. For the following questions, return your answers rounded to 4 significant figures. 1.) The rate of acceleration of each block is m/s2. 2.) The tension in...
An Atwood's machine has one block of m1 = 0.150 kg and the other is of...
An Atwood's machine has one block of m1 = 0.150 kg and the other is of m2 = 0.210 kg. The disk pulley, which is mounted in horizontal, frictionless bearings, has a radius of 5.0 cm. When released from rest, the heavier block is observed to fall Δy = 80.0 cm in 4.0 sec. The moment of inertia for the pulley is: kg m2.
In the figure, block 1 has mass m1 = 440 g, block 2 has mass m2...
In the figure, block 1 has mass m1 = 440 g, block 2 has mass m2
= 580 g, and the pulley is on a frictionless horizontal axle and
has radius R = 5.2 cm. When released from rest, block 2 falls 75 cm
in 4.9 s without the cord slipping on the pulley. (a) What is the
magnitude of the acceleration of the blocks? What are (b) tension
T2 (the tension force on the block 2) and (c) tension...
In the figure, block 1 has mass m - 490 g, block 2 has mass m2...
In the figure, block 1 has mass m - 490 g, block 2 has mass m2 - 5409, and the pulley is on a frictionless horizontal and and has radius R - 4.7 cm. When released from rest, block 2 fois 79 cm in 4.6 s without the cord slipping on the pulley (a) What is the magnitude of the acceleration of the blocks? What are (b) tension Tz (the tension force on the block 2) and (c) tension T,...
In the figure, block 1 has mass mi = 430 g, block 2 has mass m2...
In the figure, block 1 has mass mi = 430 g, block 2 has mass m2 = 520 g, and the pulley is on a frictionless horizontal axle and has radius R = 5.4 cm. When released from rest, block 2 falls 74 cm in 4.9 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension 72 (the tension force on the block 2) and (c) tension...
In the figure, block 1 has mass m1 = 460 g, block 2 has mass m2 = 592 g, and the pulley is on a frictionless horizontal axle and has radius R = 4.70 cm
In the figure, block 1 has mass m1 = 460 g, block 2 has mass m2 = 592 g, and the pulley is on a frictionless horizontal axle and has radius R = 4.70 cm. When released from rest, block 2 falls 74.7 cm in 5.32 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are(b) tension T2 (the tension force on the block 2) and (c) tensionT1 (the...
In the figure, block 1 has mass m1 = 460 g, block 2 has mass m2 = 590 g, and the pulley is on a frictionless horizontal axle and has radius R = 4.7 cm
In the figure, block 1 has mass m1 = 460 g,
block 2 has mass m2 = 590 g, and the pulley is
on a frictionless horizontal axle and has radius R = 4.7
cm. When released from rest, block 2 falls 80 cm in 5.4 s without
the cord slipping on the pulley. (a) What is the
magnitude of the acceleration of the blocks? What are(b) tension T2 (the tension
force on the block 2) and (c) tensionT1 (the...
In the figure, block 1 has mass m2 = 490 g, block 2 has mass m2...
In the figure, block 1 has mass m2 = 490 g, block 2 has mass m2 = 580 g, and the pulley is on a frictionless horizontal axle and has radius R = 4.6 cm. When released from rest, block 2 falls 76 cm in 5.2 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension Tz (the tension force on the block 2) and (c) tension...
In the figure below, block 1 has mass m_1 = 460 g, block 2 has mass...
In the figure below, block 1 has mass m_1 = 460 g, block 2 has mass m_2 = 500 g, and the pulley, which is measured on a horizontal with 2.5200 s without the cord slipping on the pulley. (Do not treat the pulley as a uniform disk Give your answers to three significant figures. Use these rounded values in subsequent calculations) What is the magnitude of the acceleration of the blocks? What is the tension T_2? What is the...
In the figure, block 1 has mass mi 480 g, block 2 has mass m2 540...
In the figure, block 1 has mass mi 480 g, block 2 has mass m2 540 g, and the pulley is on a frctionless ut the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension T72 (the tension force on the blodk 2) andc block 1)? (d) What is the magnitude of the pulley's angular acceleration? (e) horizontal axle and has radius R-4.7 ㎝, cm. When released from rest,...
In the figure, block 1 has mass m1 = 440 g, block 2 has mass m2
= 580 g, and the pulley is on a frictionless horizontal axle and
has radius R = 5.2 cm. When released from rest, block 2 falls 75 cm
in 4.9 s without the cord slipping on the pulley. (a) What is the
magnitude of the acceleration of the blocks? What are (b) tension
T2 (the tension force on the block 2) and (c) tension...
In the figure, block 1 has mass m - 490 g, block 2 has mass m2 - 5409, and the pulley is on a frictionless horizontal and and has radius R - 4.7 cm. When released from rest, block 2 fois 79 cm in 4.6 s without the cord slipping on the pulley (a) What is the magnitude of the acceleration of the blocks? What are (b) tension Tz (the tension force on the block 2) and (c) tension T,...
In the figure, block 1 has mass mi = 430 g, block 2 has mass m2 = 520 g, and the pulley is on a frictionless horizontal axle and has radius R = 5.4 cm. When released from rest, block 2 falls 74 cm in 4.9 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension 72 (the tension force on the block 2) and (c) tension...
In the figure, block 1 has mass m2 = 490 g, block 2 has mass m2 = 580 g, and the pulley is on a frictionless horizontal axle and has radius R = 4.6 cm. When released from rest, block 2 falls 76 cm in 5.2 s without the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension Tz (the tension force on the block 2) and (c) tension...
In the figure below, block 1 has mass m_1 = 460 g, block 2 has mass m_2 = 500 g, and the pulley, which is measured on a horizontal with 2.5200 s without the cord slipping on the pulley. (Do not treat the pulley as a uniform disk Give your answers to three significant figures. Use these rounded values in subsequent calculations) What is the magnitude of the acceleration of the blocks? What is the tension T_2? What is the...
In the figure, block 1 has mass mi 480 g, block 2 has mass m2 540 g, and the pulley is on a frctionless ut the cord slipping on the pulley. (a) What is the magnitude of the acceleration of the blocks? What are (b) tension T72 (the tension force on the blodk 2) andc block 1)? (d) What is the magnitude of the pulley's angular acceleration? (e) horizontal axle and has radius R-4.7 ㎝, cm. When released from rest,...
