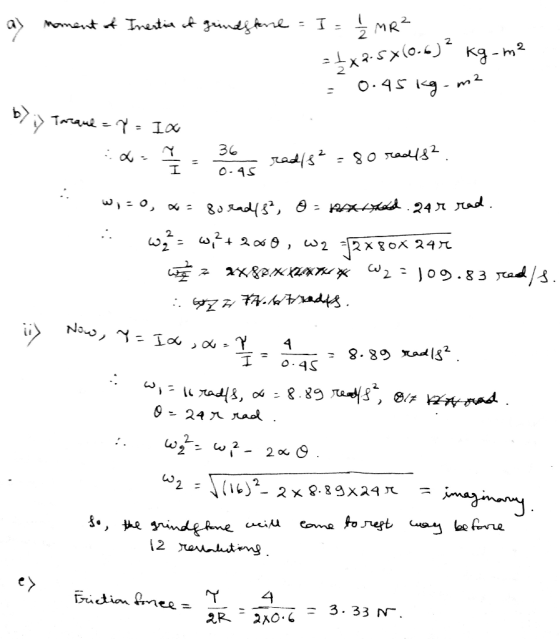

A constant torque is applied to the rim of a grindstone (disk) whose radius is 0.6 m and mass is 2.5 kg.
a) What is the grindstone's initial moment of inertia?
b) Find the angular speed after the grind stone has made 12.0 revolutions if: i. the magnitude of the torque is uniform 36.0 N·m, and the grindstone starts at rest, then initially speeds up. ii. the magnitude of the torque is uniform 4.00 N·m, and the grindstone starts at 16 rad/s, then initially slows down.
c) What is the magnitude of the average friction force applied to the disk initially slowing it down (b-ii)?
A constant torque is applied to the rim of a grindstone (disk) whose radius is 0.6...
a constant torque of 10m•N is applied to the rim of a 8.0-kg uniform disk of radius 0.15m. what is the angular speed of the disk about an axis through its center after it rotates 2.0 revolutions from rest?
The combination of an applied force and a constant frictional force produces a constant total torque of 35.7 N·m on a wheel rotating about a fixed axis. The applied force acts for 6.05 s. During this time the angular speed of the wheel increases from 0 to 9.8 rad/s. The applied force is then removed, and the wheel comes to rest in 60.2 s. (a) Find the moment of inertia of the wheel. kg·m2 (b) Find the magnitude of the...
(a) What is the magnitude of the torque on the disk (about the z
axis) due to F1? (1pt)
(b) What is the magnitude of the torque on the disk due to F2?
(1pt)
(c) What is the magnitude of the torque on the disk due to F3?
(1pt)
(d) What is the magnitude and direction (clockwise or
counterclockwise) of the angular ac- celeration about the z-axis of
the disk? (2pt)
(e) If the disk starts from rest, what...
A constant force of 40N is applied tangentially to the rim of a wheel which is initially at rest as shown in fig below. The wheel has a moment of inertia of 30kg.m2, radius of circle is 0.2m Find: i. It’s Angular Acceleration ii. It’s angular velocity after 4 seconds iii. The no. of revolutions after 4 seconds iv. Show that the work done on the wheel after 4 seconds equals the Kinetic Energy possessed by the wheel after 4...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates around a fixed axis. This torque is the result of a directed force combined with a friction force. As a result of the applied torque the angular speed of the wheel increases from 0 to 10.3 rad/s. After 6.20 s the directed force is removed, and the wheel comes to rest 60.2 s later. (a) What is the wheel's moment of inertia (in kg...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates around a fixed axis. This torque is the result of a directed force combined with a friction force. As a result of the applied torque the angular speed of the wheel increases from 0 to 9.7 rad/s. After 6.10 s the directed force is removed, and the wheel comes to rest 60.2 s later. (a) What is the wheel's moment of inertia (in kg...
The combination of an applied force and a friction force produces a constant total torque of 35.9 N · m on a wheel rotating about a fixed axis. The applied force acts for 6.10 s. During this time, the angular speed of the wheel increases from 0 to 9.6 rad/s. The applied force is then removed, and the wheel comes to rest in 60.9 s. (a) Find the moment of inertia of the wheel. kg · m^2? (b) Find the...
A 50 kg solid disk (I = ½ mr2) with a radius of r starts from rest and rotates about an axis through its center. It takes 30 rotations to reach an angular velocity of ω. Let ω = 24 rad/s Let r = 2.8 m Let θ = 32° What is the disk’s angular acceleration? (4 pts) How much time does it take to reach the final velocity? (4 pts) What is the net torque on the disk during...
A uniform disk with mass m = 8.55 kg and radius R = 1.35 m lies in the xy plane and centered at the origin. Three forces act on the disk in the +y-direction (see figure below): (1) a force F1 = 335 N at the edge of the disk on the +x-axis, (2) a force F2 = 335 N at the edge of the disk on the ?y-axis, and (3) a force F3 = 335 N at the edge...
Thanks so much for the help! Please show all work. A uniform solid disk with radius 9 cm has mass 0.5 kg (moment of inertia I = ½MR2). A constant force 12 N is applied as shown. At the instant shown, the angular velocity of the disk is 40 radians/s in the −z direction (where +x is to the right, +y is up, and +z is out of the page, toward you). The length of the string d is 13...
