A constant force of 40N is applied tangentially to the rim of a wheel which is...
A constant force of 40N is applied tangentially to the rim of a wheel which is initially at rest as shown in fig below. The wheel has a moment of inertia of 30kg.m2, radius of circle is 0.2m Find:
i. It’s Angular Acceleration
ii. It’s angular velocity after 4 seconds
iii. The no. of revolutions after 4 seconds
iv. Show that the work done on the wheel after 4 seconds equals the Kinetic Energy possessed by the wheel after 4 seconds.

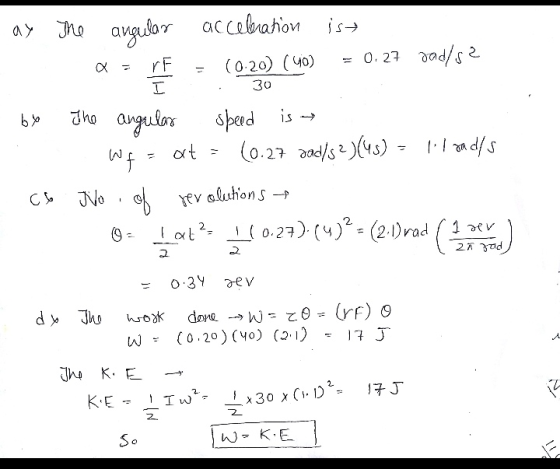

Homework Answers
please like and comment.Add Answer to:
A constant force of 40N is applied tangentially to the rim of a
wheel which is...
9. (A) If a force of 25 Newton's is applied tangentially to the rim of a...
9. (A) If a force of 25 Newton's is applied tangentially to the rim of a uniform disk whose radius is .2 meters and mass is 30 kg, what angular velocity will the disk attain in .2 minutes? (B) What is the angular displacement (delta θ) during this acceration? 10. A disk-shaped wheel 1 meter in radius weighs 2000 Newton's. A force of 50 Newton's is applied tangentially to the rim. After how many seconds does it attain an angular...
A force of 50 N is applied tangentially to the rim of a solid disk of...
A force of 50 N is applied tangentially to the rim of a solid disk of radius 0.18 m. The disk rotates about an axis through its center and perpendicular to its face with a constant angular acceleration of 115 rad/s2. Determine the mass of the disk.
A constant torque is applied to the rim of a grindstone (disk) whose radius is 0.6...
A constant torque is applied to the rim of a grindstone (disk) whose radius is 0.6 m and mass is 2.5 kg. a) What is the grindstone's initial moment of inertia? b) Find the angular speed after the grind stone has made 12.0 revolutions if: i. the magnitude of the torque is uniform 36.0 N·m, and the grindstone starts at rest, then initially speeds up. ii. the magnitude of the torque is uniform 4.00 N·m, and the grindstone starts at...
A bicycle wheel with a radius of 0.40 meters has a mass of 2.25 kg mostly...
A bicycle wheel with a radius of 0.40 meters has a mass of 2.25 kg mostly :concentrated near the rim. Treat the wheel as a ring of mass, I_ring = m r^2, rotating at 146 rpm (15.3 rad/s). Brakes on the rim slow the wheel to a stop at a constant angu acceleration. the angular acceleration, a, of the wheel if it is brought to rest in 5 seconds is the moment of inertia of the wheel, I, is closest...
In an experiment, a varying force is applied tangentially for a period of time to a...
In an experiment, a varying force is applied tangentially for a period of time to a solid disk mounted on a frictionless axle. Initially, the disk is at rest. Which type of graph should be created so that the final kinetic energy of the disk is represented by the area under the graph? Applied force as a function of angular speed Applied force as a function of angular acceleration Applied torque as a function of angular acceleration Applied force as...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates around a fixed axis. This torque is the result of a directed force combined with a friction force. As a result of the applied torque the angular speed of the wheel increases from 0 to 10.3 rad/s. After 6.20 s the directed force is removed, and the wheel comes to rest 60.2 s later. (a) What is the wheel's moment of inertia (in kg...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates...
A torque of 35.9 N · m is applied to an initially motionless wheel which rotates around a fixed axis. This torque is the result of a directed force combined with a friction force. As a result of the applied torque the angular speed of the wheel increases from 0 to 9.7 rad/s. After 6.10 s the directed force is removed, and the wheel comes to rest 60.2 s later. (a) What is the wheel's moment of inertia (in kg...
Conservation of Energy: Rotating Object Examples Example 1: A 50 N force is applied tangentially to...
Conservation of Energy: Rotating Object Examples Example 1: A 50 N force is applied tangentially to a 20 kg potter's wheel that is 50 cm in diameter. If tho wheel starts at rest, what is the kinetic energy of the wheel after 30 seconds?
A pulley, with a rotational inertia of 7.6 × 10-3 kg·m2 about its axle and a...
A pulley, with a rotational inertia of 7.6 × 10-3
kg·m2 about its axle and a radius of 9.3 cm, is acted on
by a force applied tangentially at its rim. The force magnitude
varies in time as F= 0.60t +
0.30t2, with F in newtons and
t in seconds. The pulley is initially at rest. At
t = 1.0 s what are (a) its angular
acceleration and (b) its angular speed?
Question 3 A pulley, with a rotational inertia...
3) A uniform dis force F applied tangentially to the edge of the wheel acts to...
3) A uniform dis force F applied tangentially to the edge of the wheel acts to slow it down, through what angle does the wheel turn coming to a stop? k with mass M and radius R is turning at angular speed o. rolling without slipping. If a
A bicycle wheel with a radius of 0.40 meters has a mass of 2.25 kg mostly :concentrated near the rim. Treat the wheel as a ring of mass, I_ring = m r^2, rotating at 146 rpm (15.3 rad/s). Brakes on the rim slow the wheel to a stop at a constant angu acceleration. the angular acceleration, a, of the wheel if it is brought to rest in 5 seconds is the moment of inertia of the wheel, I, is closest...
In an experiment, a varying force is applied tangentially for a period of time to a solid disk mounted on a frictionless axle. Initially, the disk is at rest. Which type of graph should be created so that the final kinetic energy of the disk is represented by the area under the graph? Applied force as a function of angular speed Applied force as a function of angular acceleration Applied torque as a function of angular acceleration Applied force as...
Conservation of Energy: Rotating Object Examples Example 1: A 50 N force is applied tangentially to a 20 kg potter's wheel that is 50 cm in diameter. If tho wheel starts at rest, what is the kinetic energy of the wheel after 30 seconds?
A pulley, with a rotational inertia of 7.6 × 10-3
kg·m2 about its axle and a radius of 9.3 cm, is acted on
by a force applied tangentially at its rim. The force magnitude
varies in time as F= 0.60t +
0.30t2, with F in newtons and
t in seconds. The pulley is initially at rest. At
t = 1.0 s what are (a) its angular
acceleration and (b) its angular speed?
Question 3 A pulley, with a rotational inertia...
3) A uniform dis force F applied tangentially to the edge of the wheel acts to slow it down, through what angle does the wheel turn coming to a stop? k with mass M and radius R is turning at angular speed o. rolling without slipping. If a
