Charge 1 is 6 uC, charge 2 is -24 uC, the distance between the charges is...

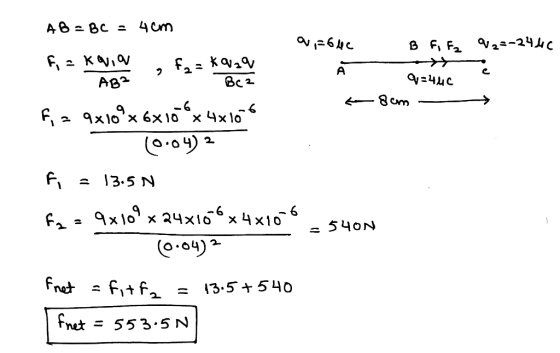

Charge 1 is 6 uC, charge 2 is -24 uC, the distance between the charges is 8 cm, and they are located in a vacuum. If the third charge of 4 uC would be placed into position B, i.e., exactly between the two other charges, what would be the magnitude of the net force it experiences?
Homework Answers
Add Answer to:
Charge 1 is 6 uC, charge 2 is -24 uC, the distance between the
charges is...
Two charges Q1 = 5x10-6 C and Q2 = 13x10-6 C are separated by a distance...
Two charges Q1 = 5x10-6 C and Q2 = 13x10-6 C are separated by a distance of 0.8m (Take Q2 to be located on the right hand side of Q1). a. Calculate the net (i.e., total) force exerted by these two charges on a third charge Q3 = -3x10-6 C located halfway between Q1 and Q2. b. Find the position at which Q3 must be placed so the net force on it (due to Q1 and Q2) is zero (i.e.,...
16. A test charge of +2 uC is placed halfway between a charge of +6 4C...
16. A test charge of +2 uC is placed halfway between a charge of +6 4C and another of +4 uC separated by 10 cm. (a) What is the magnitude of the force on the test charge? (b) What is the direction of this force (away from or toward the +6 uC charge)?
Please show all work:) (a) Three point charges are placed along the y-axis, with charge ql...
Please show all work:)
(a) Three point charges are placed along the y-axis, with charge ql -3 HC charge at (0,0,0) m, q2 --4-uC at (0,-4,0) m, and q3 -2 uC at (0,3,0) m. What is the net electrostatic force on q3? Answer:0.0045N0) (b) Two point charges are placed along the x-axis, with charge q 3 nC charge at (50,0,0) cm, and q2--4-nC at (0,0,0) cm. At what location along the x-axis, other than infinity, can another charge q3-2 nC...
6. Two charges, both of +2.00 uC are located 30.0 cm above and below the origin...
6. Two charges, both of +2.00 uC are located 30.0 cm above and below the origin on the y axis. A third charge of + 4.00 HC is located +40.0 cm from the origin. Find the magnitude and direction of the net force acting on the particle on the x axis.
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc,...
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc, at the origin, +1 uc, and at +6 cm, a charge of 2 uС. Find the net force (magnitude and direction) on the central charge. 2) In the above system, what is the electric field at the point on the x-axis x=-2 cm? What would be the acceleration experienced by an 80 nC charge with mass 107 kg?
A test charge of +4 uC is placed halfway between a charge of +6 uC and...
A test charge of +4 uC is placed halfway between a charge of +6 uC and another of +5 uC separated by 18 cm. What is the magnitude of the force (in N) on the test charge? QUESTION 6 To start a car engine, the car battery moves 8.47 x 10 efectrons through the starter motor. How coulombs of charge were moved? (Enter the magnitude only). many
6. Two point charges, g1 and q2, are located at a distance r apart in a...
6. Two point charges, g1 and q2, are located at a distance r apart in a vacuum. The electric force (1 point) between them is F. What will the electric force become if the distance between the charges is tripled? O3F OF/3 O9F 7. Two equally charged spheres of mass 1.0 g are placed 2.0 cm apart. When released, they begin (1 point) to accelerate at 414 m/s. What is the magnitude of the charge on each sphere? O75 nC...
two point charges of magnitude positive 3 UC and -5 UCare placed along the x-axis...
two point charges of magnitude positive 3 UC and -5 UC are placed along the x-axis at x equals 0 centimeters and y equals 40 cm respectively.where must a third charge q be placed along the x axis so that it does not experience any net force because of the other two charges.
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg...
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg is released from the positive plate of a capacitor. When it reaches the negative plate, it has achieved a velocity of v = 100 m/s. Calculate the following: (6 marks total) a. What is the potential difference between the two plates? (2 marks) b. If the distance between the two plates is 1 nm and filled with vacuum, and the dimensions of the plates...
P3. (a) Consider two charges, held a fixed distance apart, as shown. Where should a third...
P3. (a) Consider two charges, held a fixed distance apart, as shown. Where should a third charge q be placed so that it experiences no net force? Explain why your answer does not depend on the sign or the magnitude of q 3Q (b) For the two charges shown, determine where a third charge q should be placed so that it experiences no net force 3Q
16. A test charge of +2 uC is placed halfway between a charge of +6 4C and another of +4 uC separated by 10 cm. (a) What is the magnitude of the force on the test charge? (b) What is the direction of this force (away from or toward the +6 uC charge)?
Please show all work:)
(a) Three point charges are placed along the y-axis, with charge ql -3 HC charge at (0,0,0) m, q2 --4-uC at (0,-4,0) m, and q3 -2 uC at (0,3,0) m. What is the net electrostatic force on q3? Answer:0.0045N0) (b) Two point charges are placed along the x-axis, with charge q 3 nC charge at (50,0,0) cm, and q2--4-nC at (0,0,0) cm. At what location along the x-axis, other than infinity, can another charge q3-2 nC...
6. Two charges, both of +2.00 uC are located 30.0 cm above and below the origin on the y axis. A third charge of + 4.00 HC is located +40.0 cm from the origin. Find the magnitude and direction of the net force acting on the particle on the x axis.
1) Three charges are placed along the x-axis. At -4 cm, a charge of +0.7 uc, at the origin, +1 uc, and at +6 cm, a charge of 2 uС. Find the net force (magnitude and direction) on the central charge. 2) In the above system, what is the electric field at the point on the x-axis x=-2 cm? What would be the acceleration experienced by an 80 nC charge with mass 107 kg?
A test charge of +4 uC is placed halfway between a charge of +6 uC and another of +5 uC separated by 18 cm. What is the magnitude of the force (in N) on the test charge? QUESTION 6 To start a car engine, the car battery moves 8.47 x 10 efectrons through the starter motor. How coulombs of charge were moved? (Enter the magnitude only). many
6. Two point charges, g1 and q2, are located at a distance r apart in a vacuum. The electric force (1 point) between them is F. What will the electric force become if the distance between the charges is tripled? O3F OF/3 O9F 7. Two equally charged spheres of mass 1.0 g are placed 2.0 cm apart. When released, they begin (1 point) to accelerate at 414 m/s. What is the magnitude of the charge on each sphere? O75 nC...
1. A positive ion of charge 1 uC with a weight of 2 x 10-6 kg is released from the positive plate of a capacitor. When it reaches the negative plate, it has achieved a velocity of v = 100 m/s. Calculate the following: (6 marks total) a. What is the potential difference between the two plates? (2 marks) b. If the distance between the two plates is 1 nm and filled with vacuum, and the dimensions of the plates...
P3. (a) Consider two charges, held a fixed distance apart, as shown. Where should a third charge q be placed so that it experiences no net force? Explain why your answer does not depend on the sign or the magnitude of q 3Q (b) For the two charges shown, determine where a third charge q should be placed so that it experiences no net force 3Q
