Consider a system with transfer function G(s) = 6/(ks^2+s+6). Its damping ratio is 0.5 when the...
Consider a system with transfer function G(s) = 6/(ks^2+s+6). Its damping ratio is 0.5 when the value of k is:
a. 2/6
b. 3
c. 1/6
d. 6

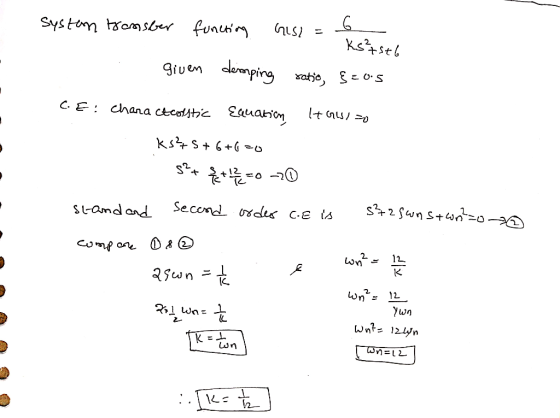

Please show your work on how you found the answer
Thanks
Homework Answers
Add Answer to:
Consider a system with transfer function G(s) = 6/(ks^2+s+6).
Its damping ratio is 0.5 when the...
17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system...
17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66, design a PI controller to drive the steady-state error of the response to zero
17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66,...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller trans...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
only b and c please 1 Consider the system whose transfer function is given by: G(S)...
only b and c please
1 Consider the system whose transfer function is given by: G(S) == (2s +1)(s+3) unction is given by: G(s) - (a) Use the root-locus design methodology to design a lead compensator that will provide a closed-loop damping 5 =0.4 and a natural frequency on =9 rad/sec. The general transfer function for lead compensation is given by D(5)=K (977), p>z, 2=2 (b) Use MATLAB to plot the root locus of the feed-forward transfer function, D(s)*G(s), and...
2. Consider the unity feedback negative system with an open-loop function G(S)-KS. a. Plot the locations...
2. Consider the unity feedback negative system with an open-loop function G(S)-KS. a. Plot the locations of open-loop poles with X and zeros with O on an s-plane. b. Find the number of segments in the root locus diagram based on the number of poles and zeros. c. The breakaway point (the point at which the two real poles meet and diverge to become complex conjugates) occurs when K = 0.02276. Show that the closed-loop system has repeated poles for...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5) A proportional controller is used to control the system as shown in Figure 6 below: Y(s) R(s) + G(s) Figure 6: A control system with a proportional controller a) Assume Hp(s) is a proportional controller with the transfer function H,(s) kp. Determine, using the Routh-Hurwitz Stability Criterion, the value of kp for which the closed-loop system in Figure 6 is marginally stable. (6...
Problem 2: The loop transfer function of a single-loop feedback control system is given as G(S)H(s)Ks...
Problem 2: The loop transfer function of a single-loop feedback control system is given as G(S)H(s)Ks Construct the root locus (RL) diagrams over paper for K20. Please follow the eight out of nine steps procedures outlined in review session: 1) RL at K0,2) RL at K-, 3) number of branches on the RL, 4) symmetry of the RL, 5) angles of asymptotes of the RL, 6) intersection of the asymptotes, 7) RL on the real axis, and 9) stability criterion...
Consider the unity feedback system is given below R(S) C(s) G(s) with transfer function: G() =...
Consider the unity feedback system is given below R(S) C(s) G(s) with transfer function: G() = K(+2) s(s+ 1/s + 3)(+5) a) Sketch the root locus. Clearly indicate any asymptotes. b) Find the value of the gain K, that will make the system marginally stable. c) Find the value of the gain K, for which the closed-loop transfer function will have a pole on the real axis at (-0.5).
Given the transfer function 4. G(s)H(s) - (s + 8) (s +6s + 13) (a) Sketch the root locus plot using Matlab. (b) Estimate the system gain when the damping ratio is 7 0.707 (c) Add a simple pole, (s...
Given the transfer function 4. G(s)H(s) - (s + 8) (s +6s + 13) (a) Sketch the root locus plot using Matlab. (b) Estimate the system gain when the damping ratio is 7 0.707 (c) Add a simple pole, (s 2), to G (s)H (s) and examine the resulting root locus (d) Add a simple zero, (s +2), to G(s)H(s) and examine the resulting root locus
Given the transfer function 4. G(s)H(s) - (s + 8) (s +6s + 13)...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) =...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
1 - Consider the system shown in the figure below, #1 25 Ks a) Determine the...
1 - Consider the system shown in the figure below, #1 25 Ks a) Determine the value of k that yields a damping ratio ? of 0.6 b) Based on the numerical value found for k in part (a) of the problem, determine (10 points) the open-loop gain and the system's type. Determine the steady-state errors for the system when it is subjected to (6 points) c) 1. a step reference input, r()-A 2. a ramp reference input, r()-t (6...
17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66, design a PI controller to drive the steady-state error of the response to zero
17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66,...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
only b and c please
1 Consider the system whose transfer function is given by: G(S) == (2s +1)(s+3) unction is given by: G(s) - (a) Use the root-locus design methodology to design a lead compensator that will provide a closed-loop damping 5 =0.4 and a natural frequency on =9 rad/sec. The general transfer function for lead compensation is given by D(5)=K (977), p>z, 2=2 (b) Use MATLAB to plot the root locus of the feed-forward transfer function, D(s)*G(s), and...
2. Consider the unity feedback negative system with an open-loop function G(S)-KS. a. Plot the locations of open-loop poles with X and zeros with O on an s-plane. b. Find the number of segments in the root locus diagram based on the number of poles and zeros. c. The breakaway point (the point at which the two real poles meet and diverge to become complex conjugates) occurs when K = 0.02276. Show that the closed-loop system has repeated poles for...
Question 6 The open-loop transfer function G(s) of a control system is given as G(8)- s(s+2)(s +5) A proportional controller is used to control the system as shown in Figure 6 below: Y(s) R(s) + G(s) Figure 6: A control system with a proportional controller a) Assume Hp(s) is a proportional controller with the transfer function H,(s) kp. Determine, using the Routh-Hurwitz Stability Criterion, the value of kp for which the closed-loop system in Figure 6 is marginally stable. (6...
Problem 2: The loop transfer function of a single-loop feedback control system is given as G(S)H(s)Ks Construct the root locus (RL) diagrams over paper for K20. Please follow the eight out of nine steps procedures outlined in review session: 1) RL at K0,2) RL at K-, 3) number of branches on the RL, 4) symmetry of the RL, 5) angles of asymptotes of the RL, 6) intersection of the asymptotes, 7) RL on the real axis, and 9) stability criterion...
Consider the unity feedback system is given below R(S) C(s) G(s) with transfer function: G() = K(+2) s(s+ 1/s + 3)(+5) a) Sketch the root locus. Clearly indicate any asymptotes. b) Find the value of the gain K, that will make the system marginally stable. c) Find the value of the gain K, for which the closed-loop transfer function will have a pole on the real axis at (-0.5).
Given the transfer function 4. G(s)H(s) - (s + 8) (s +6s + 13) (a) Sketch the root locus plot using Matlab. (b) Estimate the system gain when the damping ratio is 7 0.707 (c) Add a simple pole, (s 2), to G (s)H (s) and examine the resulting root locus (d) Add a simple zero, (s +2), to G(s)H(s) and examine the resulting root locus
Given the transfer function 4. G(s)H(s) - (s + 8) (s +6s + 13)...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
1 - Consider the system shown in the figure below, #1 25 Ks a) Determine the value of k that yields a damping ratio ? of 0.6 b) Based on the numerical value found for k in part (a) of the problem, determine (10 points) the open-loop gain and the system's type. Determine the steady-state errors for the system when it is subjected to (6 points) c) 1. a step reference input, r()-A 2. a ramp reference input, r()-t (6...
