a 5kg mass is hung from ceiling with two wires. the wires make a 45 degrees...

a 5kg mass is hung from ceiling with two wires. the wires make a 45 degrees angle with ceiling. the angle between the wires is 90. what is the magnitude of the net force on ceiling due to mass hanging on the two wires ?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

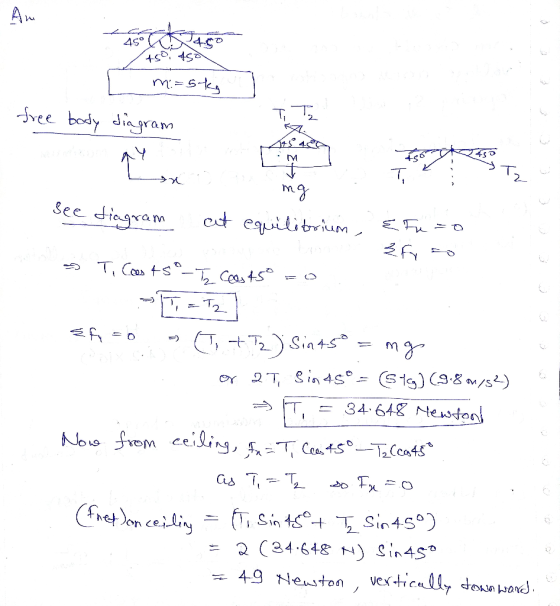

Here we apply concept of Newton's law of equilibrium.

0 0
Add a comment
Know the answer?
Add Answer to:
a 5kg mass is hung from ceiling with two wires. the wires make a 45 degrees...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A horizontal wire is hung from the ceiling of a room by two massless strings. The...

    A horizontal wire is hung from the ceiling of a room by two massless strings. The wire has a length of 0.22 m and a mass of 0.084 kg. A uniform magnetic field of magnitude 0.060 T is directed from the ceiling to the floor. When a current I exists in the wire, the wire swings upward and, at equilibrium, makes an angle 55 degrees with respect to the vertical. Find the current I.

  • Calculations: Experiment 1: For a mass of 250 grams hung at 0 degrees and another 250...

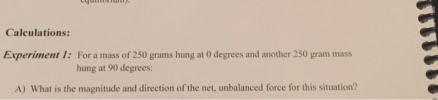

    Calculations: Experiment 1: For a mass of 250 grams hung at 0 degrees and another 250 gram mass hung at 90 degrees: A) What is the magnitude and direction of the net, unbalanced force for this situation?

  • A chandelier is hung using two guidewires that form 45 degree angles with the ceiling. If...

    A chandelier is hung using two guidewires that form 45 degree angles with the ceiling. If the weight of the chandelier is 120 N, what is the tension in the wires? If the ceiling is in a huge elevator that accelerates downward at 3m/s^2, what will the tension become?

  • A sign with a mass of 1 kg is hung by two ropes and hangs in...

    A sign with a mass of 1 kg is hung by two ropes and hangs in equilibrium. Rope 1 (on the right in the sketch) is at an angle of 28 degrees from the horizontal. Rope 2 is hung vertically, goes through the ceiling, and by pulleys, is also connected horizontally to the side of the sign. In addition, a force of 22 Newtons is applied vertically downwards to the sign. What is the tension in rope 2 in Newtons?

  • 1. A horizontal wire is hung from the ceiling of a room by two massless strings....

    1. A horizontal wire is hung from the ceiling of a room by two massless strings. The wire has a length of 0.11 m and a mass of 0.005 kg. A uniform magnetic field of magnitude 0.055 T is directed from the ceiling to the floor. When a current of I = 34 A exists in the wire, the wire swings upward and, at equilibrium, makes an angle φ with respect to the vertical, as the drawing shows. Find (a)...

  • 4. A heavy stone of mass 45 kg is hung from the ceiling by a thin...

    4. A heavy stone of mass 45 kg is hung from the ceiling by a thin wire that is 1.73 m long. Yougently pluck the upper end of the a pulse travels down the wire and returns 6.98 ms later,having reflected off the lower end. The stone is heavy enough to prevent the lower end of the wirefrom moving. What is the linear mass density of the string?

  • A spring is hanging from the ceiling. When a 2 kg mass is hung from the...

    A spring is hanging from the ceiling. When a 2 kg mass is hung from the spring, the spring has a total length of 50 cm. When a 5 kg mass is hung from the spring, the spring has a total length of 70 cm. Determine the spring's relaxed length and its spring's spring constant. (You should keep 4 decimals in your values to avoid rounding errors.)

  • Question 27 1 pts A spring is hung from the ceiling. A 2.0-kg mass suspended hung...

    Question 27 1 pts A spring is hung from the ceiling. A 2.0-kg mass suspended hung from the spring extends it by 6.0 cm.A downward external force applied to the mass extends the spring an additional 10 cm What is the work done by the force? - 3.6J 3.3 - 3.4 105J O 3.3J O 3.6J

  • #2) A charge q,-+200pC has . mass 0400 kg and is hung from the ceiling by...

    #2) A charge q,-+200pC has . mass 0400 kg and is hung from the ceiling by a light string of length 1,-080 m. A second charge o,-150 JC is directly below the first charge, and is pulled upward by its atnraction to the first charge. It is connected to the floor by a string whose length is 1,-1.50 m. The height of the ceiling is (a) What is the electric force between the two charges? (b) What is the tension...

  • A spring scale hung from the ceiling stretches by 5.5cm when a 1.6kg mass is hung...

    A spring scale hung from the ceiling stretches by 5.5cm when a 1.6kg mass is hung from it. The 1.6kg mass is removed and replaced with a 1.9kg mass. Part A What is the stretch of the spring?
