Question

USE MATLAB

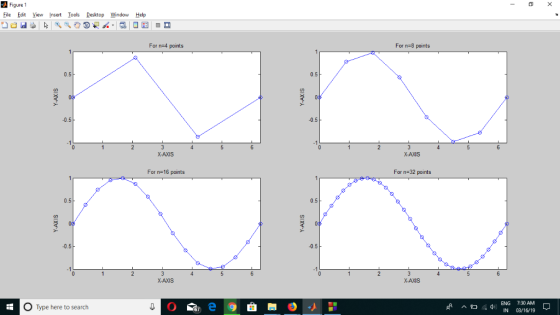

1.) Using subplot make 4 plots on 2 x 2 grid on different axes on one figure.
Make 4 plots of sin(x) (each from x = 0 to x = 2pi ) to demonstrate how important it is to use the correct number data points

1. the top-left plot will use 4 values of x
2. the top-right plot will use 8 values of x
3. the bottom left plot will use 16 values of x
4. the bottom right plot will use 32 values of x
5. use markers (any kind)
6. give each plot a title indicating the number of points and label each axis

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

clc
clear all
close all
n=[4,8,16,32];
for i=1:length(n)
x=linspace(0,2*pi,n(i));
subplot(2,2,i)
y=sin(x);
plot(x,y,'-ob');
s=sprintf('For n=%d points',n(i));
title(s);
xlabel('X-AXIS');
ylabel('Y-AXIS');
xlim([0,2*pi]);
ylim([-1,1]);
end

Kindly revert for any queries

Thanks.
