An RLC circuit has a 48 Ω resistor and a 58 μH inductor; when connected to an AC source, its resonance frequency is 320 kHz.

At what frequency, greater than the resonance frequency, will the current in the circuit be one-half its value at resonance?

science physics

Answer 1

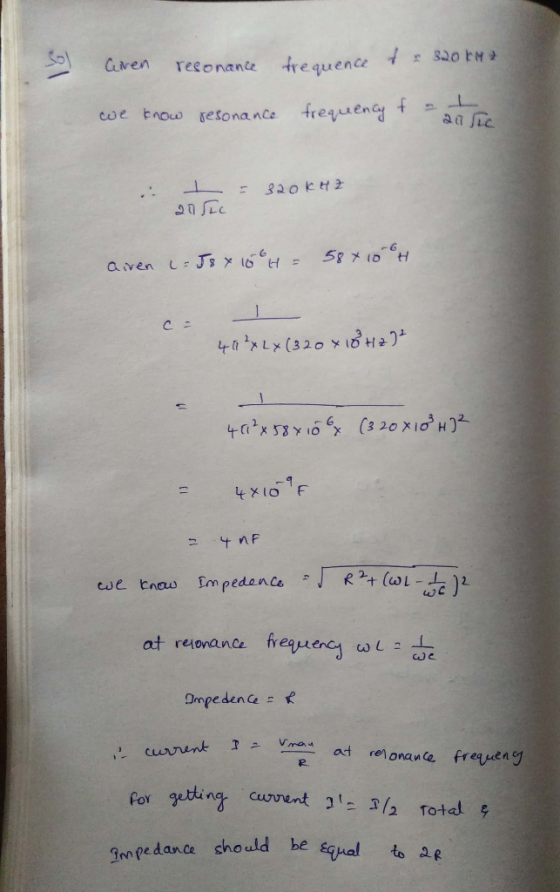

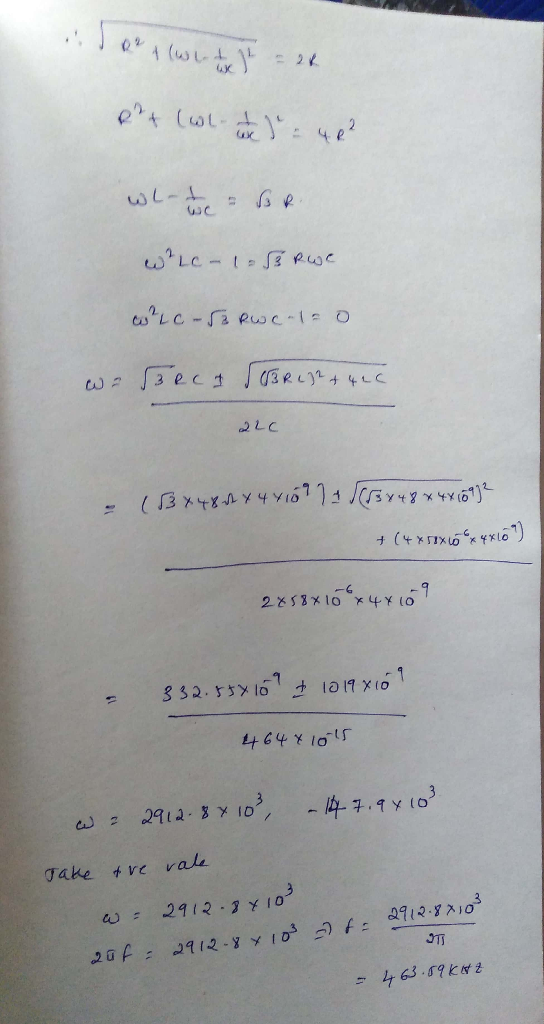

Answer #1

Answer 2

Similar Homework Help Questions

An RLC series circuit has a 2.6 Ω resistor, a 95 μH inductor, and a 87.5...

An RLC series circuit has a 2.6 Ω resistor, a 95 μH inductor, and a 87.5 μF capacitor. a. Find the circuit’s impedance, in ohms, at 110 Hz. b. Find the circuit’s impedance, in ohms, at 4.5 kHz. c. If the voltage source supplies an rms voltage of 5.52 V, what is the circuit’s rms current, in amperes, at a frequency of 110 Hz? d. If the voltage source supplies an rms voltage of 5.52 V, what is the circuit’s...
In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0...

In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit operates at half of the resonance frequency. a) Find the current in the resistor, capacitor and for the entire circuit. b) Find the voltage in the resistor, capacitor, and inductor. c) Find the emf of the AC source. Will give great review for good answer. 2) In an...
2) In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? =...

2) In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit operates at half of the resonance frequency. a) Find the current in the resistor, capacitor and for the entire circuit. b) Find the voltage in the resistor, capacitor, and inductor. c) Find the emf of the AC source.

A 1200 Ω resistor, a 600 nF capacitor and a 25 μH inductor are placed in...

A 1200 Ω resistor, a 600 nF capacitor and a 25 μH inductor are placed in series with a variable frequency AC source. 1. Find the reactances χC and χL and the circuit impedance Z when ƒ = 1500 Hz. 2. The fixed capacitor is replaced with a variable capacitor, and we are going to use the circuit to tune an AM radio, searching for the resonant frequencies. Since the AM band holds frequencies between 520 kHz and 1610 kHz,...
An RLC series circuit has a 1.00 kΩ resistor, a 150 mH inductor, and a 25.0...

An RLC series circuit has a 1.00 kΩ resistor, a 150 mH inductor, and a 25.0 nF capacitor. (a) Find the circuit's impedance (in Ω) at 505 Hz. (b) Find the circuit's impedance (in Ω) at 7.50 kHz. (c) If the voltage source has Vrms = 408 V, what is Irms (in mA) at 505 Hz and 7.5 Hz? (d) What is the resonant frequency (in kHz) of the circuit? (e) What is Irms (in mA) at resonance?
An RLC circuit consists of a 0.1H inductor, 1.5µF capacitor, and a 100 Ω resistor. It...

An RLC circuit consists of a 0.1H inductor, 1.5µF capacitor, and a 100 Ω resistor. It is connected to a 1200 rad/s AC power source. If the applied rms voltage is 100 V, what is the resulting rms current?

An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...

An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor...

What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor in an AC circuit supplied with 48 VAC at 100 Hz? A. 150.72 Ω B. 500 Ω C. 314 Ω D. 0.31 Ω Which of the following denotes inductive reactance? A. R B. H C. X L D. Z A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is...
A series circuit contains a 3.00-H inductor, a 3.20-μF capacitor, and a 20.0-Ω resistor connected to...

A series circuit contains a 3.00-H inductor, a 3.20-μF capacitor, and a 20.0-Ω resistor connected to a 120-V (rms) source of variable frequency. Find the power delivered to the circuit when the frequency of the source is each of the following. (a) the resonance frequency W (b) one-half the resonance frequency W (c) one-fourth the resonance frequency mW (d) two times the resonance frequency W (e) four times the resonance frequency mW

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an A...

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 59 volts. At half the resonant frequency, the phase angle is -35 degrees and the inductive reactance is 46 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
