A series circuit contains a 3.00-H inductor, a 3.20-μF capacitor, and a 20.0-Ω resistor connected to...
A series circuit contains a 3.00-H inductor, a 3.20-μF capacitor, and a 20.0-Ω resistor connected to a 120-V (rms) source of variable frequency. Find the power delivered to the circuit when the frequency of the source is each of the following.

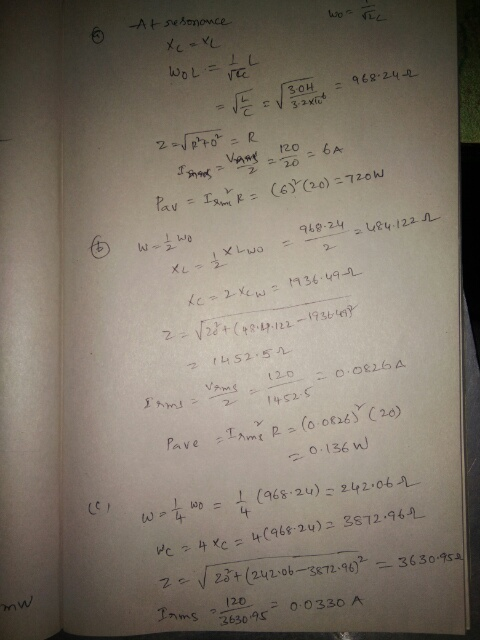

(a) the resonance frequency
W
(b) one-half the resonance frequency
W
(c) one-fourth the resonance frequency
mW

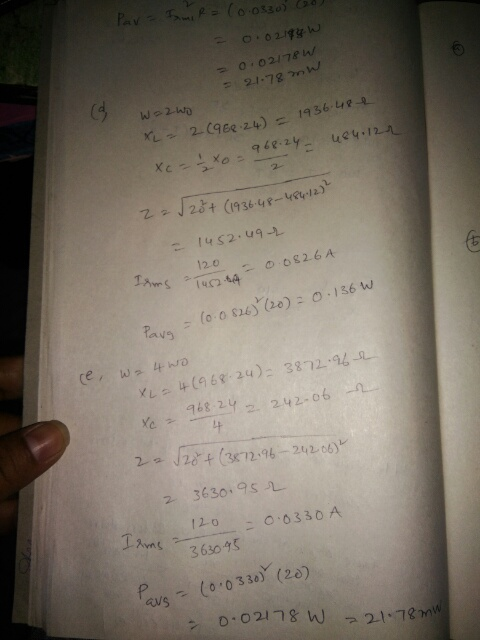

(d) two times the resonance frequency
W
(e) four times the resonance frequency
mW
