Charges +q, -q, +q and -q are placed at the corners A B C D respectively...

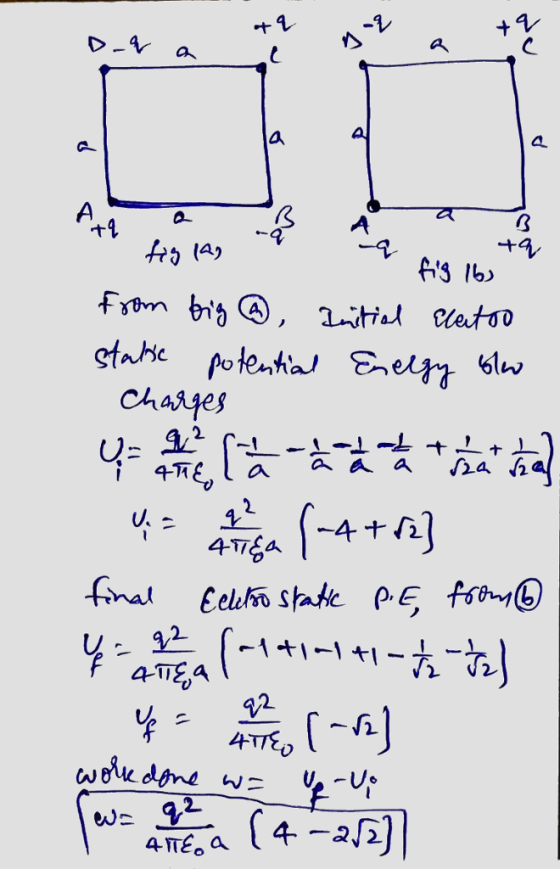

Charges +q, -q, +q and -q are placed at the corners A B C D respectively of a square of side a. Find the work done in exchanging two charges which are along the sides of the square?
Homework Answers
Add Answer to:
Charges +q, -q, +q and -q are placed at the corners A B C D
respectively...
Four charges are placed at the corners of a square, where q is positive (q >...
Four charges are placed at the corners of a square, where q is
positive (q > 0). Initially there is no charge in the center of
the square.
a) Find the work W required to bring the charge Qf = +q from
infinity and place it at the center of the square.
b) What is the magnitude of the electric force on the charge q
when it is placed at the center of the square?
c) What is the magnitude...
Identical point charges q-15.00μC are placed at opposite corners of a square. The length of each...
Identical point charges q-15.00μC are placed at opposite corners of a square. The length of each side of the square is 0.200 m. A point charge q0--200μC is placed at one of the empty corners. Part A How much work is done on qo by the electric force when go is moved to the other empty corner? Express your answer using one significant figure. Submit Request Answer
Four identical charges Q are placed at the corners of a square of side L.
Four identical charges Q are placed at the corners of a square of side L.1.Find the magnitude total force exerted on one charge by the other three charges. |F| = ?
PRACTICE: Three point charges, each of magnitude q, are placed at 3 corners of a square...
PRACTICE: Three point charges, each of magnitude q, are placed at 3 corners of a square with sides of length L as shown. How much work is required to bring a test charge Q from very far away to A along the indicated path direction? L А B path 1. W = k 9Q (-1) L 99 2. W = 2 L 90 3. W=k- V2L
PRACTICE: Four identical point charges, q, are placed at the corners of a square. Each side...
PRACTICE: Four identical point charges, q, are placed at the corners of a square. Each side of the square has length L. What is the magnitude of the electric field at the point P, the center of the square? A) O B) kq</L2 C) kq7I2L2 D) kq2/4L2
Three charged balls, with charges of +q, ?3q, and +2q, are placed at the corners of...
Three charged balls, with charges of +q, ?3q, and +2q, are
placed at the corners of a square that measures L = 50.0 cm on each
side, as shown in the figure. The value of q is 2.30
10-6 C. Assume that the potential an infinite distance
from the charges is zero.
(a) What is the electric potential at the lower left corner of
the square, due to the three charges?
(b) What is the electric potential at the center...
1. Three point-like charges are placed at the corners of a rectangle as shown in the...
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Let there be four charges + q, -q, + q and -q located on the corners...
Let there be four charges + q, -q, + q and -q located on the corners of a side square a. The charges of the same polarity are arranged at the vertices situated along the diagonals. Calculate the electrical potential at a point in the center of the square.
Four point charges each having charge Q are located at the corners of a square having...
Four point charges each having charge Q are located at the corners of a square having sides of length a. (a) Find an expression for the total electric potential at the center of the square due to the four charges. (Use any variable or symbol stated above along with the following as necessary: ke.) V = (b) Find an expression for the work required to bring a fifth charge q from infinity to the center of the square. (Use any...
Two positive point charges +q and two negative point charges-q are fixed at the corners of...
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
Four charges are placed at the corners of a square, where q is
positive (q > 0). Initially there is no charge in the center of
the square.
a) Find the work W required to bring the charge Qf = +q from
infinity and place it at the center of the square.
b) What is the magnitude of the electric force on the charge q
when it is placed at the center of the square?
c) What is the magnitude...
Identical point charges q-15.00μC are placed at opposite corners of a square. The length of each side of the square is 0.200 m. A point charge q0--200μC is placed at one of the empty corners. Part A How much work is done on qo by the electric force when go is moved to the other empty corner? Express your answer using one significant figure. Submit Request Answer
PRACTICE: Three point charges, each of magnitude q, are placed at 3 corners of a square with sides of length L as shown. How much work is required to bring a test charge Q from very far away to A along the indicated path direction? L А B path 1. W = k 9Q (-1) L 99 2. W = 2 L 90 3. W=k- V2L
PRACTICE: Four identical point charges, q, are placed at the corners of a square. Each side of the square has length L. What is the magnitude of the electric field at the point P, the center of the square? A) O B) kq</L2 C) kq7I2L2 D) kq2/4L2
Three charged balls, with charges of +q, ?3q, and +2q, are
placed at the corners of a square that measures L = 50.0 cm on each
side, as shown in the figure. The value of q is 2.30
10-6 C. Assume that the potential an infinite distance
from the charges is zero.
(a) What is the electric potential at the lower left corner of
the square, due to the three charges?
(b) What is the electric potential at the center...
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
