Consider the circuit shown below with C = 50 μF, ε = 20 V, and R...

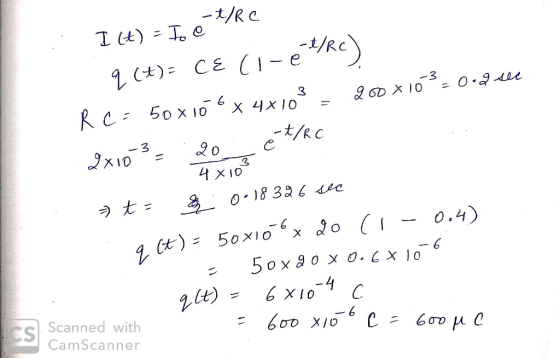

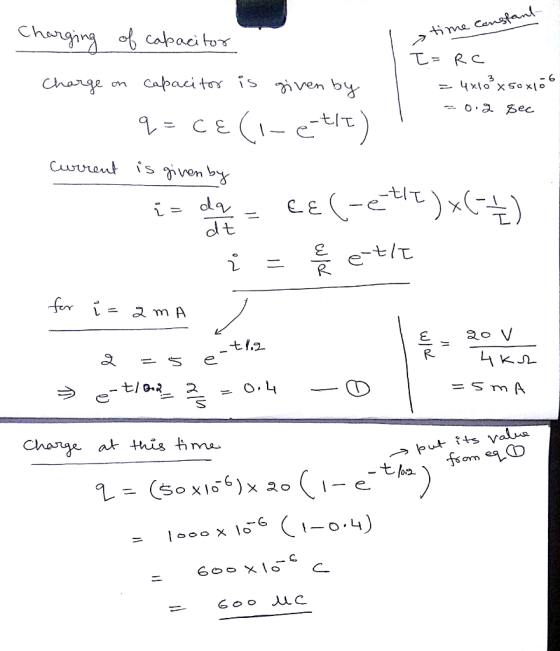

Consider the circuit shown below with C = 50 μF, ε = 20 V, and R = 4 kΩ. The capacitor is initially uncharged, but switch S is then closed. What is the charge on the capacitor when the current in the circuit is I = 2 mA ?
Homework Answers
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with...
A circuit consists of a battery, a 100 kΩ resistor, 20.0 μF capacitor in series with a switch which is initially in the open position. The capacitor is initially uncharged. Part A) If the EMF of the battery is ε=15.1 V, calculate the current through the resistor 6.00 seconds after the switch is closed. (Give answer in μA) Part B) Calculate the charge on the capacitor 6.00 seconds after the switch is closed. (Give answer in μC)
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.6...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.6 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.62 mA . What is the battery's emf?
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 4.8...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 4.8 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA .What is the battery's emf?
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a compu...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.2...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.2 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA . What is the batteries EMF? STEP BY STEP SOLUTION PLEASE!!!!
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.4...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.4 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.62 mA. What is the battery's emf? (Express your answer with the appropriate units.)
Consider a series RC circuit as in the figure below for which R 5.00 MO, C-8.00...
Consider a series RC circuit as in the figure below for which R 5.00 MO, C-8.00 μF. and ε 26.0 V. (a) Find the time constant of the circuit (b) What is the maximum charge on the capacitor after the switch is thrown closed? 208 (c) Find the current in the resistor 10.0 s after the switch is closed. what mathematical function describes the time dependence of the current in an RC circuit? ㎂
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.0...
A capacitor charging circuit consists of a battery, an uncharged 20 μF capacitor, and a 5.0 kΩ resistor. At t = 0 s the switch is closed; 0.15 s later, the current is 0.38 mA . Part A What is the battery's emf in volts? Express your answer to two significant figures and include the appropriate units.
In the circuit L-1 mH、C-1 μF, R-1000, ε=10 V Initially, the switch s is closed for...
In the circuit L-1 mH、C-1 μF, R-1000, ε=10 V Initially, the switch s is closed for a long time. Then, it is open and the voltage through C is measured. What is the maximum measured voltage after the switch is open?
In the circuit shown below, ε=6V, C1=C4= 6μF, and C2=C3=3 μF. Initially, the switch is open....
In the circuit shown below, ε=6V, C1=C4= 6μF, and C2=C3=3 μF.
Initially, the switch is open. Assume that the potential at the
point A is 0 V. Calculate the following quantities.
Please help me with letter c to find the potential at the point
B. (Assume point A has 0V).
First name Student ID In the circuit shown below, ε= 6 V, G = Ci t6HE/and C,-C3-3 μF. Initially the switch is open. Assume that the potential at the point...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
Consider a series RC circuit as in the figure below for which R 5.00 MO, C-8.00 μF. and ε 26.0 V. (a) Find the time constant of the circuit (b) What is the maximum charge on the capacitor after the switch is thrown closed? 208 (c) Find the current in the resistor 10.0 s after the switch is closed. what mathematical function describes the time dependence of the current in an RC circuit? ㎂
In the circuit L-1 mH、C-1 μF, R-1000, ε=10 V Initially, the switch s is closed for a long time. Then, it is open and the voltage through C is measured. What is the maximum measured voltage after the switch is open?
In the circuit shown below, ε=6V, C1=C4= 6μF, and C2=C3=3 μF.
Initially, the switch is open. Assume that the potential at the
point A is 0 V. Calculate the following quantities.
Please help me with letter c to find the potential at the point
B. (Assume point A has 0V).
First name Student ID In the circuit shown below, ε= 6 V, G = Ci t6HE/and C,-C3-3 μF. Initially the switch is open. Assume that the potential at the point...
