6. (3 pts) Given a 8-bit ripple carry adder and the following four input scenarios: (i)...
6. (3 pts) Given a 8-bit ripple carry adder and the following four input scenarios:
(i) A4 + 1F, (ii) AB+55, (iii) CA+34, (iv) 6D+29.

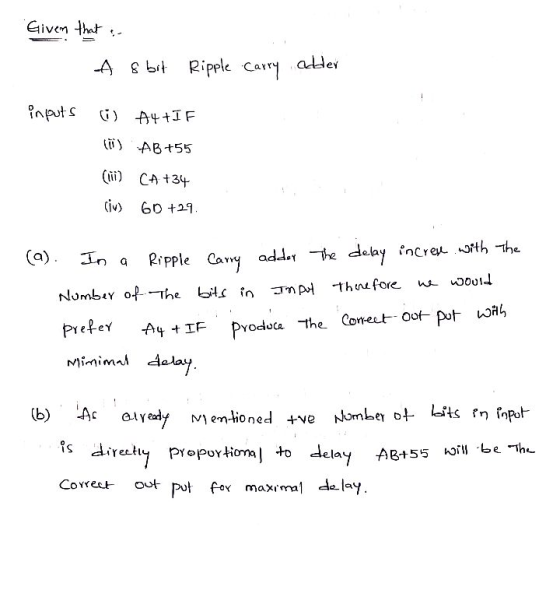

a) Under which input scenario can adder generate correct output with the minimal delay?
b) Under which input scenario can adder generate correct output with the maximum delay?
Homework Answers
Add Answer to:
6. (3 pts) Given a 8-bit ripple carry adder and the following
four input scenarios:
(i)...
Find the propagation delays for a 19 bit ripple carry adder Given the following propagation delays...
Find the propagation delays for a 19 bit ripple carry adder
Given the following propagation delays
Find the propagation delays for a 19 bit ripple carry adder Given the following propagation delays Propagation Delay Component AND OR XOR 8 10 And that each full adder is implemented as Cin x1 Сin os sum Cout Hint Draw out at least a 4-bit ripple carry adder before trying to answer this question.
Find the propagation delays for a 20 bit ripple carry adder Given the following propagation delays...
Find the propagation delays for a 20 bit ripple carry adder Given the following propagation delays Component AND Propagation Delay 9 OR 8 XOR 7 And that each full adder is implemented as A x1 A BlX1 B Cin Sum Cinx1(cin Cin x1 Cout Hint Draw out at least a 4-bit ripple carry adder before trying to answer this question.
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple...
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple style as shown in the figure below. B3 A3 B2 A2 B1 A1 **** c0='1' Sought: Please calculate the output carries for each full adder (FA) using A=0x01 and B=0x04. It is required to show ALL incremental steps of the solution, then record each the final results in the table below. C4 C3 C2 ci
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in th...
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in the 2's complement form. The circuit has inputs X(7:0), Y(7:0), CO, M and outputs S(7:0), carry-out of MSB C8, OFL (OFL 1 when it occurs). The circuit should perform addition and subtraction of 8-bit signed numbers 2. with M-1 and M-0, respectively. a) Obtain the schematic for the 8-bit adder/subtractor with two 4-bit adder/subtractors from problem 1 as building blocks. X, Y, A, B, S can be shown...
3. Digital circuits question. The figure below shows a 16-b carry-skip adder. It is composed of...
3. Digital circuits question.
The figure below shows a 16-b carry-skip adder. It is composed of 4 4-bit ripple carry adders and some extra logic to route the carry. Each 4bit ripple carry adder generates a group propagate signal. This is used to determine when the carry-in is going to be propagated all the way to the carry-out. When this is the case, addition is sped up by allowing the carry-in to skip the block and become the carry-in of...
Could you please read 7483 data sheet and then answer number e 7383 Data Sheet 5483A...
Could you please read 7483 data sheet and then answer number
e
7383 Data Sheet
5483A 4-Bit Binary Full Adder with Fast Carry General Description The '83A high speed 4-bit binary full adders with internal carry lookahead accept two 4-bit binary words (Ao-A3, Bo- B3) and a Carry input (Co). They generate the binary Sum outputs (So-S3) and the Carry output (C4) from the most significant bit. They operate with either HIGH or active LOW operands (positive or negative logic)....
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the...
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
i need help with a mips program to to covert roman numerals to real numbers Lab 4: Roman Numeral Conversion Part A: Due...
i need help with a mips program to to covert roman numerals to
real numbers
Lab 4: Roman Numeral Conversion Part A: Due Sunday, 19 May 2019, 11:59 PM Due Friday, 24 May 2019, 11:59 PM Part B: Minimum Submission Requirements Ensure that your Lab4 folder contains the following files (note the capitalization convention): o Diagram.pdf o Lab4. asm O README.txt Commit and push your repository Lab Objective In this lab, you will develop a more detailed understanding of how...
Ch 1 1. Given the following dat Dec 31 Year 2 Dec 31 Year 1 Total...
Ch 1 1. Given the following dat Dec 31 Year 2 Dec 31 Year 1 Total liabilities S128,250 $120,000 Total stockholders oquity 95.000 80.000 compute the ratio of liabilities to stockholders' equity for each year Round to two decimal places 1.50 and 107, 11.35 and 1.50 respectively respectively 1.07 and 1.19. 1.1.19 and 1.35 respectively respectively The liabilities and stockholder's equity of a company are $132,000 and $244.000, respectively. Assets should equal SS188.00 $132.00 p $376,00 12.000 A financial statement...
How can we assess whether a project is a success or a failure? This case presents...
How can we assess whether a project is a success or a
failure?
This case presents two phases of a large business transformation project involving the implementation of an ERP system with the aim of creating an integrated company. The case illustrates some of the challenges associated with integration. It also presents the obstacles facing companies that undertake projects involving large information technology projects. Bombardier and Its Environment Joseph-Armand Bombardier was 15 years old when he built his first snowmobile...
Find the propagation delays for a 19 bit ripple carry adder
Given the following propagation delays
Find the propagation delays for a 19 bit ripple carry adder Given the following propagation delays Propagation Delay Component AND OR XOR 8 10 And that each full adder is implemented as Cin x1 Сin os sum Cout Hint Draw out at least a 4-bit ripple carry adder before trying to answer this question.
Find the propagation delays for a 20 bit ripple carry adder Given the following propagation delays Component AND Propagation Delay 9 OR 8 XOR 7 And that each full adder is implemented as A x1 A BlX1 B Cin Sum Cinx1(cin Cin x1 Cout Hint Draw out at least a 4-bit ripple carry adder before trying to answer this question.
1) ALU Design: Carry-Select Adder EEL 380 Given: A4-bit adder is implemented in a carry ripple style as shown in the figure below. B3 A3 B2 A2 B1 A1 **** c0='1' Sought: Please calculate the output carries for each full adder (FA) using A=0x01 and B=0x04. It is required to show ALL incremental steps of the solution, then record each the final results in the table below. C4 C3 C2 ci
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in the 2's complement form. The circuit has inputs X(7:0), Y(7:0), CO, M and outputs S(7:0), carry-out of MSB C8, OFL (OFL 1 when it occurs). The circuit should perform addition and subtraction of 8-bit signed numbers 2. with M-1 and M-0, respectively. a) Obtain the schematic for the 8-bit adder/subtractor with two 4-bit adder/subtractors from problem 1 as building blocks. X, Y, A, B, S can be shown...
3. Digital circuits question.
The figure below shows a 16-b carry-skip adder. It is composed of 4 4-bit ripple carry adders and some extra logic to route the carry. Each 4bit ripple carry adder generates a group propagate signal. This is used to determine when the carry-in is going to be propagated all the way to the carry-out. When this is the case, addition is sped up by allowing the carry-in to skip the block and become the carry-in of...
Could you please read 7483 data sheet and then answer number
e
7383 Data Sheet
5483A 4-Bit Binary Full Adder with Fast Carry General Description The '83A high speed 4-bit binary full adders with internal carry lookahead accept two 4-bit binary words (Ao-A3, Bo- B3) and a Carry input (Co). They generate the binary Sum outputs (So-S3) and the Carry output (C4) from the most significant bit. They operate with either HIGH or active LOW operands (positive or negative logic)....
A retaining wall is to be constructed in a normally consolidated clayey sand deposit in the figure below. Ground water table is lmbelow the bottom of the excavation. A 20 kN/m2 surcharge pressure is applied over a wide area at the ground surface. Assume the wall moves into the excavation. Consider long-tem analysis (as it is usually the more critical analysis in excavation problems). Ignore capillarity as shown 20 kPa Clayey sand T17 kNm Y-20 kNm 5 m c'-10 kPa...
i need help with a mips program to to covert roman numerals to
real numbers
Lab 4: Roman Numeral Conversion Part A: Due Sunday, 19 May 2019, 11:59 PM Due Friday, 24 May 2019, 11:59 PM Part B: Minimum Submission Requirements Ensure that your Lab4 folder contains the following files (note the capitalization convention): o Diagram.pdf o Lab4. asm O README.txt Commit and push your repository Lab Objective In this lab, you will develop a more detailed understanding of how...
Ch 1 1. Given the following dat Dec 31 Year 2 Dec 31 Year 1 Total liabilities S128,250 $120,000 Total stockholders oquity 95.000 80.000 compute the ratio of liabilities to stockholders' equity for each year Round to two decimal places 1.50 and 107, 11.35 and 1.50 respectively respectively 1.07 and 1.19. 1.1.19 and 1.35 respectively respectively The liabilities and stockholder's equity of a company are $132,000 and $244.000, respectively. Assets should equal SS188.00 $132.00 p $376,00 12.000 A financial statement...
How can we assess whether a project is a success or a
failure?
This case presents two phases of a large business transformation project involving the implementation of an ERP system with the aim of creating an integrated company. The case illustrates some of the challenges associated with integration. It also presents the obstacles facing companies that undertake projects involving large information technology projects. Bombardier and Its Environment Joseph-Armand Bombardier was 15 years old when he built his first snowmobile...
