In a given CRT, electrons are accelerated horizontally by 9.0 kV . They then pass through...

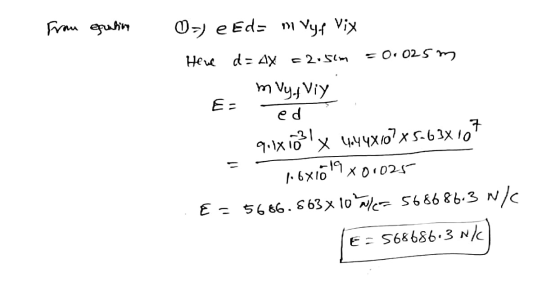

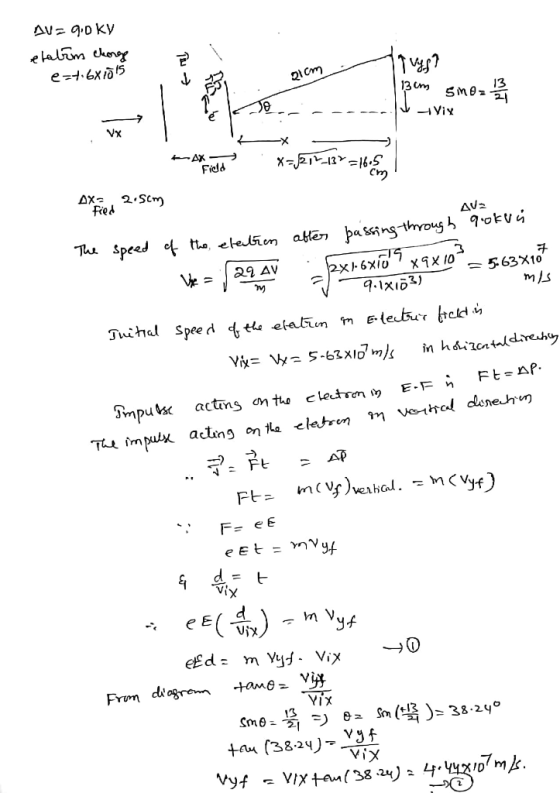

In a given CRT, electrons are accelerated horizontally by 9.0 kV . They then pass through a uniform electric field E for a distance of 2.5 cm , which deflects them upward so they travel 21 cm to the top of the screen, 13 cm above the center. Estimate the value of E. Neglect the upward distance that electron moves while in the electric field. kindly elaborate on the individual steps and show the calculations,thank you v
Homework Answers
Add Answer to:
In a given CRT, electrons are accelerated horizontally by 9.0 kV
. They then pass through...
In a given CRT, electrons are accelerated horizontally by 7.4 kV . They then pass through...
In a given CRT, electrons are accelerated horizontally by 7.4 kV . They then pass through a uniform electric field E for a distance of 2.6 cm which deflects them upward so they reach the top of the screen 20 cm away, 13 cm above the center.Estimate value of E
In a television picture tube (CRT), electrons are accelerated by thousands of volts through a vacuum....
In a television picture tube (CRT), electrons are accelerated by thousands of volts through a vacuum. If a television set is laid on its back, would electrons be able to move upward against the force of gravity? Find the potential difference, acting over a distance of 3.5 cm, that would be needed to balance the downward force of gravity so that an electron would remain stationary. Assume that the electric field is uniform. [Electron mass : 9.11 x 10-31 kg]
A beam of electrons is accelerated through a potential difference of 10 kV before entering a...
A beam of electrons is accelerated through a potential difference of 10 kV before entering a region having uniform electric and magnetic fields that are perpendicular to each other and perpendicular to the direction in which the electron is moving. If the magnetic field in this region has a value of 0.010 T, what magnitude of the electric field is required if the particles are to be undeflected as they pass through the region?
Part B please? A cathode ray tube (CRT) is used to accelerate electrons in some televisions,...
Part B please?
A cathode ray tube (CRT) is used to accelerate electrons in some televisions, computer monitors, oscilloscopes, and x- ray tubes. Electrons from a heated filament pass through a hole in the cathode; they are then accelerated by an electric field between the cathode and the anode (see the figure below). + Assist Che ry View Show Guid rcal deflertion Print Ques Repa te) 1 out of 3 attempts Atter the electrons pass through the anode, they are...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.02 kV enters...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.02 kV enters the gap between two parallel plates having separation d = 26.5 mm and potential difference V_2= 171 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap?
1) A beam of electrons with velocity of 9.0 x 10 m/s in the horizontal direction...
1) A beam of electrons with velocity of 9.0 x 10 m/s in the horizontal direction pass through a vertical E-field with a magnitude of E= 1500 N/C and impacts a detection screen, producing a glowing spot on the screen after crossing a horizontal distance of Ax 15 cm through the wiform E-field. (Electrons have a mass of 9.11 x 10-31 k.) electron beam V detection screen a) (5 points) Neglecting the effects of gravity, find the vertical acceleration a,...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.3 kV enters...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.3 kV enters the gap between two parallel plates having separation 20.0 mm and potential difference V_2 = 200 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap? (Express...
Question 2 In the figure, an electron accelerated from rest through potential difference Vi-1.00 kv enters...
Question 2 In the figure, an electron accelerated from rest through potential difference Vi-1.00 kv enters the gap between two parallel plates having separation d 21.2 mm and potential difference V2 158 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap? L....
WITCUTELL. In the figure, an electron accelerated from rest through potential difference V1=1.16 kV enters the...
WITCUTELL. In the figure, an electron accelerated from rest through potential difference V1=1.16 kV enters the gap between two parallel plates having separation d = 27.2 mm and potential difference V = 51.3 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap?...
In a cathode ray tube (CRT) similar to those used in older television sets, a beam...
In a cathode ray tube (CRT) similar to those used in older television sets, a beam of electrons is steered to different places on a phosphor screen, which glows at locations hit by electrons. The CRT is evacuated, so there are few gas molecules present for the electrons to run into. Electric forces are used to accelerate electrons of mass 9 × 10-31 kg to a speed 1.7 × 107 m/s, after which they pass between positively and negatively charged...
Part B please?
A cathode ray tube (CRT) is used to accelerate electrons in some televisions, computer monitors, oscilloscopes, and x- ray tubes. Electrons from a heated filament pass through a hole in the cathode; they are then accelerated by an electric field between the cathode and the anode (see the figure below). + Assist Che ry View Show Guid rcal deflertion Print Ques Repa te) 1 out of 3 attempts Atter the electrons pass through the anode, they are...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.02 kV enters the gap between two parallel plates having separation d = 26.5 mm and potential difference V_2= 171 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap?
1) A beam of electrons with velocity of 9.0 x 10 m/s in the horizontal direction pass through a vertical E-field with a magnitude of E= 1500 N/C and impacts a detection screen, producing a glowing spot on the screen after crossing a horizontal distance of Ax 15 cm through the wiform E-field. (Electrons have a mass of 9.11 x 10-31 k.) electron beam V detection screen a) (5 points) Neglecting the effects of gravity, find the vertical acceleration a,...
In the figure, an electron accelerated from rest through potential difference V_1 = 1.3 kV enters the gap between two parallel plates having separation 20.0 mm and potential difference V_2 = 200 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap? (Express...
Question 2 In the figure, an electron accelerated from rest through potential difference Vi-1.00 kv enters the gap between two parallel plates having separation d 21.2 mm and potential difference V2 158 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap? L....
WITCUTELL. In the figure, an electron accelerated from rest through potential difference V1=1.16 kV enters the gap between two parallel plates having separation d = 27.2 mm and potential difference V = 51.3 V. The lower plate is at the lower potential. Neglect fringing and assume that the electron's velocity vector is perpendicular to the electric field vector between the plates. In unit-vector notation, what uniform magnetic field allows the electron to travel in a straight line in the gap?...
