The passenger mirror in your modern car is convex. a 1.5 meter high volky stands in...

The passenger mirror in your modern car is convex. a 1.5 meter high volky stands in front of that mirror at a distance of 9.0 meters from the mirror. If the focal length of the mirror is 9.0 cm:
1) when distance is the image of the volky formed?
2) make a schematic representation using the ray diagram?
3) describe the image
4) How much is the height of the volky image?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

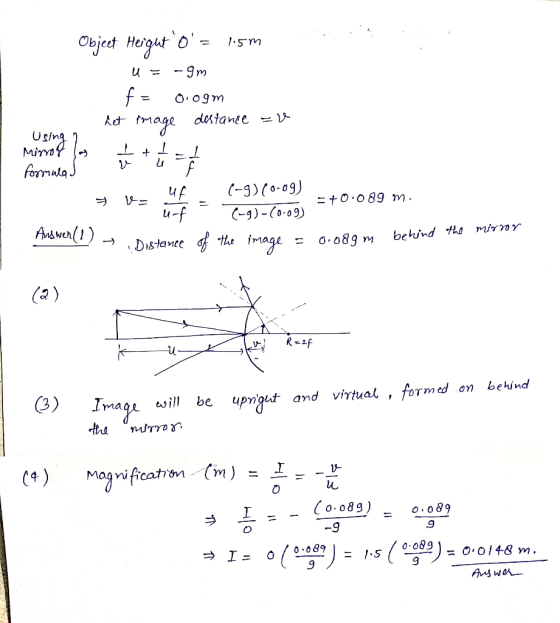

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The passenger mirror in your modern car is convex. a 1.5 meter high volky stands in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The outside mirror on the passenger side of a car is convex and has a focal...

    The outside mirror on the passenger side of a car is convex and has a focal length of -5.1 m. Relative to this mirror, a truck traveling in the rear has an object distance of 14 m. Find (a) the image distance and (b) the magnification of the mirror. Number -0.0508 Units m Number -0.00363 Units cm

  • A 4 cm tall object stands 80 cm in front of convex mirror of 60 cm...

    A 4 cm tall object stands 80 cm in front of convex mirror of 60 cm focal length? (a) Clearly trace the path of at least two distinct rays as they propagate from the object and reflect on the mirror. Draw a representation of the image formed by these rays. Note: Horizontal scale and vertical scales correspond to 5 cm and 1 cm per division, respectively. (b) Calculate the position and height of the image formed. (c) Characterize the image...

  • . An object 4.0 mm high is placed 20 cm from a convex mirror of radius of curvature 20 cm. (a) Sh...

    . An object 4.0 mm high is placed 20 cm from a convex mirror of radius of curvature 20 cm. (a) Show by a neat ray tracing diagram that the image is virtual, and estimate the image distance. (20 points) (b) Show that the (negative) image distance can be computed from the mirror equation using a focal length of-10.0 cm. 5 points 5 points (c) Compute the image height. . An object 4.0 mm high is placed 20 cm from...

  • The outside mirror on the passenger side of a car is convex and has a focal...

    The outside mirror on the passenger side of a car is convex and has a focal length of -9.4 m. Relative to this mirror, a truck traveling in the rear has an object distance of 17 m. Find (a) the image distance and (b) the magnification of the mirror.

  • Suppose an object 2.0cm high is placed 5.0cm in front of a convex mirror whose focal...

    Suppose an object 2.0cm high is placed 5.0cm in front of a convex mirror whose focal length is 3.0cm. a) Calculate the image position, image height and the magnification. b) Describe the image (upright or inverted, real or virtual, bigger or smaller). c) Sketch a ray diagram to locate the image

  • The outside mirror on the passenger side of a car is convex and has a focal...

    The outside mirror on the passenger side of a car is convex and has a focal length of -7.1 m. Relative to this mirror, a truck traveling in the rear has an object distance of 14 m. (a) Find the image distance of the truck. m (b) Find the magnification of the mirror. Additional Materials

  • A convex mirror, like the passenger-side rearview mirror on a car, has a focal length of...

    A convex mirror, like the passenger-side rearview mirror on a car, has a focal length of -2.9 m . An object is 5.8 m from the mirror. Use ray tracing to determine the location of its image. How far is the image from the mirror? Input positive value if the image is on the same side from the mirror as an object and negative if the image is on the other side. Is the image upright or inverted? Is it...

  • 5. An object 3 cm high is placed 20 cm from a convex mirror having a...

    5. An object 3 cm high is placed 20 cm from a convex mirror having a focal length of 8 cm. Find the position of the image and its magnification. Draw a schematic ray diagram. 6. What are two major problems in using spherical mirrors and lenses for image formation?

  • A convex mirror. like the passenger-side rearview mirror on a car. has a focal length of...

    A convex mirror. like the passenger-side rearview mirror on a car. has a focal length of -2.8 m. An object Is 5.6 m from the mirror. Use ray tracing to determine the location of Its Image. How far Is the Image from the mirror? Input positive value if the Image Is on the same side from the minor as an object and negative If the image is on the other side. Express your answer to two significant figures and include...

  • An object is placed in front of a convex mirror

    An object is placed in front of a convex mirror. Draw the convex mirror (radius of curvature  15 cm) to scale, and place the object 25 cm in front of it. Make the object height 4 cm. Using a ray diagram, locate the image and measure its height. Now move the object closer to the mirror, so the object distance is 5 cm. Again, locate its image using a ray diagram. As the object moves closer to the mirror, (a)...
