A system has four resource types (A, B, C, D) and four processes {P1, P2, P3,...

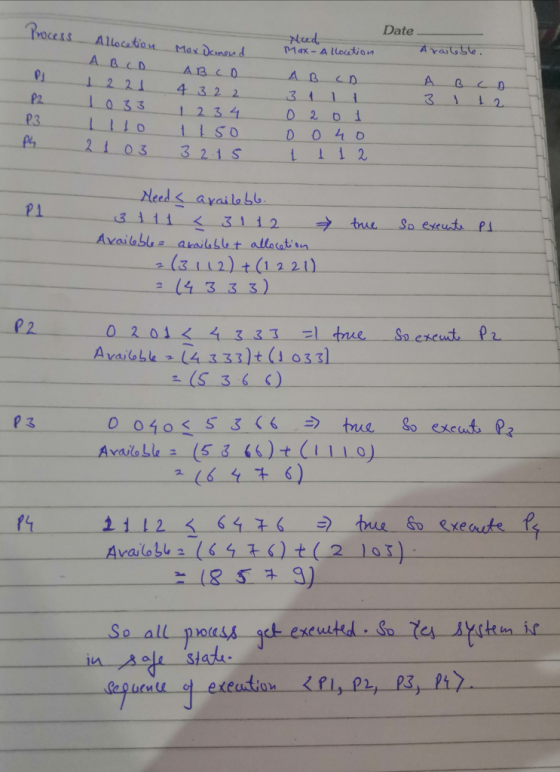

A system has four resource types (A, B, C, D) and four processes {P1, P2, P3, P4 }.The maximum demands for each process is P1(4,3,2,2), P2(1,2,3,4), P3(1,1,5,0) and P4(3,2,1,5). The current allocation is: P1(1,2,2,1), P2(1,0,3,3) and P3(1,1,1,0) and P4(2,1,0,3). available resource is P1(3,1,1,2) (a) Is this state a safe state? Explain your all answer by identifying a successful future sequence of processes that makes the state safe.
Homework Answers
Add Answer to:
A system has four resource types (A, B, C, D) and four processes
{P1, P2, P3,...
In a computer system five processes are attempting to proceed with three resource types. The total...
In a computer system five processes are attempting to proceed with three resource types. The total units of system resources are: (8,9,7). The maximum demands for every process are: P1(3,1,1), P2(3,3,2), P3(5,3,2), P4(5,1,2), P5(8,4,3). The current allocation is: P1 (0,1,1), P2 (2,1,1), P3 (3,1,2), P4 (1,1,1), and P5 (2,3,2). Is this state a safe state? Explain
In a system consisting of four processes and five resource types, the current allocation and maximum...
In a system consisting of four processes and five resource types, the current allocation and maximum needs are as follows Process PO P1 P2 P3 Allocation 10211 20110 11010 Maximum 11213 22210 21310 11221 Available 00x12 What is the smallest value of 'x' that can keep the system in a safe state? Once you find the 'x value, find a safe execution order using the Safety Algorithm we discussed in the lecture. Include a step-by-step walk-through of the Safety Algorithm
Assume in a system, there are: - 3 processes P1 to P3; - 3 resource types:...
Assume in a system, there are:
- 3 processes P1 to P3;
- 3 resource types: A(9 instances), B(5 instances), and C(5
instances).
Below is a snapshot at time T:
1) Show that the system is in a safe state at time T.
2) Can request for (A: 2, B: 0, C: 0) by P1 be granted? Explain
your answer.
Thank you so much, and it would be much better if it is well
written and explained.
Allocation Max Pl...
Consider a system in which four processes (A,B,C,D) are attemptign to access four types of resource...
Consider a system in which four processes (A,B,C,D) are attemptign to access four types of resource (1,2,3,4). There are two instances of each type of resource , and the current allocation is <1001> for A , <0101> for B , <1000> for C , and <0010> for D. The Max Need for each process is <2002> for A , <0202> for B , <1100> for C , and <1010> for D. Is this system state safe? If so give an...
A system has five processes P1 through P5 and four resource types R1 through R4. There...
A system has five processes P1 through P5 and four resource types R1 through R4. There are 2 units of each resource type. Given that: P1 holds 1 unit of R1 and requests 1 unit of R4 P2 holds 1 unit of R3 and requests 1 unit of R2 P3 holds one unit of R2 and requests 1 unit of R3 P4 requests 1 unit of R4 P5 holds one unit of R3 and 1 unit of R2, and requests...
Assume a system with 3 processes P1, P2, and P3, and resources R1, R2, and R3....
Assume a system with 3 processes P1, P2, and P3, and resources R1, R2, and R3. Each resource has a single instance. Draw a resource allocation graph for the following sequence of events: P1 is granted access to resource R1. P2 requests resource R1 P3 requests resource R3 P2 is granted access toR2 P1 requests R2 Convert your resource allocation graph to a wait-for graph. Is there a deadlock?
Please give an explanation for the answers as well. 1. A system has three processes (P1,...
Please give an explanation for the answers as well. 1. A system has three processes (P1, P2, and P3) and three resources (R1, R2, and R3). There is one instance of RI, two instances of R2, and three instances of R3. PI holds RI and one instance of R3 and is requesting one instance from R2. P2 holds one instance of R3 and is requesting RI and one instance from R2. P3 holds two instances of R2 and one instance...
Answer the following question: Allocation Available A B C D 3 3 2 1 Ро P1...
Answer the following question: Allocation Available A B C D 3 3 2 1 Ро P1 A B C D 2001 3121 2103 1312 1 432 Max ABCD 4212 5252 2316 1424 36 65 P2 P3 P4 The snapshot of a system 1) Illustrate that the system is in a safe state by demonstrating an order in which the processes may complete. (Format: use process number only, e.g. 01234) 2) If a request from process P1 arrives for (1,1,0,0), can...
The following processes P1, P2, P3, P4 and P5 arrive at the same time (t =...
The following processes P1, P2, P3, P4 and P5 arrive at the same time (t = 0). Establish a timeline of the process scheduling for the following scheduling algorithms while also identifying start times for each process. FCFS (first come, first serve; assume order of P1, P2, P3, P4 and P5) SJF (shortest job first) Priority iv Round Robin (quantum = 1, assume order of P1, P2, P3, P4 and P5) Determine the average waiting time for each algorithm.
Consider the following snapshot of a system: Process РО P1 P2 P3 P4 Allocation A B...
Consider the following snapshot of a system: Process РО P1 P2 P3 P4 Allocation A B C D 2013 2 2 1 0 3 1 2 1 0 4 1 0 4 2 1 2 Max A B C D 5 1 1 6 3 2 1 1 3 2 2 1 4 6 1 2 5 3 2 5 Using the banker's algorithm, determine whether or not each of the following states is unsafe. If the state is safe,...
In a system consisting of four processes and five resource types, the current allocation and maximum needs are as follows Process PO P1 P2 P3 Allocation 10211 20110 11010 Maximum 11213 22210 21310 11221 Available 00x12 What is the smallest value of 'x' that can keep the system in a safe state? Once you find the 'x value, find a safe execution order using the Safety Algorithm we discussed in the lecture. Include a step-by-step walk-through of the Safety Algorithm
Assume in a system, there are:
- 3 processes P1 to P3;
- 3 resource types: A(9 instances), B(5 instances), and C(5
instances).
Below is a snapshot at time T:
1) Show that the system is in a safe state at time T.
2) Can request for (A: 2, B: 0, C: 0) by P1 be granted? Explain
your answer.
Thank you so much, and it would be much better if it is well
written and explained.
Allocation Max Pl...
Please give an explanation for the answers as well. 1. A system has three processes (P1, P2, and P3) and three resources (R1, R2, and R3). There is one instance of RI, two instances of R2, and three instances of R3. PI holds RI and one instance of R3 and is requesting one instance from R2. P2 holds one instance of R3 and is requesting RI and one instance from R2. P3 holds two instances of R2 and one instance...
Answer the following question: Allocation Available A B C D 3 3 2 1 Ро P1 A B C D 2001 3121 2103 1312 1 432 Max ABCD 4212 5252 2316 1424 36 65 P2 P3 P4 The snapshot of a system 1) Illustrate that the system is in a safe state by demonstrating an order in which the processes may complete. (Format: use process number only, e.g. 01234) 2) If a request from process P1 arrives for (1,1,0,0), can...
The following processes P1, P2, P3, P4 and P5 arrive at the same time (t = 0). Establish a timeline of the process scheduling for the following scheduling algorithms while also identifying start times for each process. FCFS (first come, first serve; assume order of P1, P2, P3, P4 and P5) SJF (shortest job first) Priority iv Round Robin (quantum = 1, assume order of P1, P2, P3, P4 and P5) Determine the average waiting time for each algorithm.
Consider the following snapshot of a system: Process РО P1 P2 P3 P4 Allocation A B C D 2013 2 2 1 0 3 1 2 1 0 4 1 0 4 2 1 2 Max A B C D 5 1 1 6 3 2 1 1 3 2 2 1 4 6 1 2 5 3 2 5 Using the banker's algorithm, determine whether or not each of the following states is unsafe. If the state is safe,...
