What is the minimal expression for the four variable Σ (3,7,8,12,13)? A. A'CD + AC'D' +...

Question

Question

What is the minimal expression for the four variable Σ (3,7,8,12,13)?

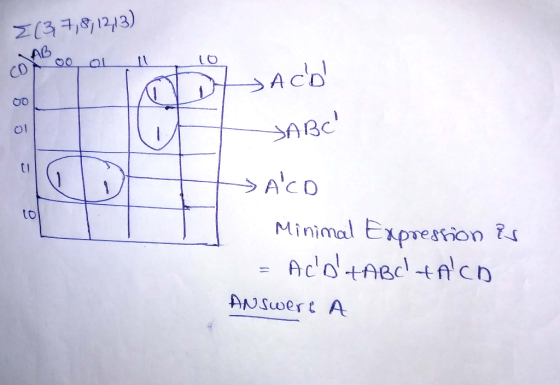

A. A'CD + AC'D' + ABC'

B. ABC'+AB'+ACD'+BC'

C. ABD'+ABC'+B'C'D+BCD'

D. A'BC+BC'+D

E. None of the above

engineering Computer-Science

Answer 1

Answer #1

Answer 2
