A diffraction pattern is formed on a screen 130 cm away from a 0.420-mm-wide slit. Monochromatic...

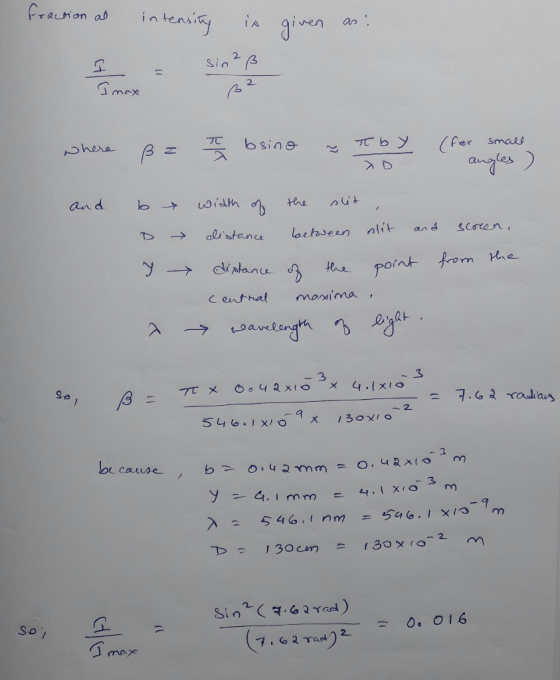

A diffraction pattern is formed on a screen 130 cm away from a 0.420-mm-wide slit. Monochromatic 546.1-nm light is used. Calculate the fractional intensity I/Imax at a point on the screen 4.10 mm from the center of the principal maximum.
Homework Answers
Add Answer to:
A diffraction pattern is formed on a screen 130 cm away from a
0.420-mm-wide slit. Monochromatic...
A diffraction pattern is produced on a screen 144 cm from a single slit, using monochromatic...
A diffraction pattern is produced on a screen 144 cm from a single slit, using monochromatic light of wavelength 520 nm. The distance from the center of the central maximum to the first-order maximum is 3.80 mm. Calculate the slit width. (Hint: Assume that the first-order maximum is halfway between the first- and second-order minima.) mm
Monochromatic 545-nm light is incident on a 15-μm-wide slit. If the diffraction pattern is cast on...
Monochromatic 545-nm light is incident on a 15-μm-wide slit. If the diffraction pattern is cast on a screen 510 mm from the slit, what is the linear distance from the center of the pattern to the n = 4 dark fringe?
Using a 677 nm wavelength laser, you form the diffraction pattern of a 1.01 mm wide slit on a screen
Using a 677 nm wavelength laser, you form the diffraction pattern of a 1.01 mm wide slit on a screen. You measure on the screen that the 15th dark fringe is 9.97 cm away from the center of the central maximum. How far is the screen located from the slit? distance: _______ m
The second-order dark fringe in a single-slit diffraction pattern is 1.40 mm from the center of...
The second-order dark fringe in a single-slit diffraction pattern is 1.40 mm from the center of the central maximum. Assuming the screen is 94.8 cm from a slit of width 0.700 mm and assuming monochromatic incident light, calculate the wavelength of the incident light. nm
Light of wavelength 455 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away.
Light of wavelength 455 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away. (a) Find the position of the first dark band on each side of the central maximum. (b) Find the width of the central maximum.
Light of wavelength 575 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away.
Light of wavelength 575 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away. (a) Find the position of the first dark band on each side of the central maximum. (b) Find the width of the central maximum.
Monochromatic light from a distant source is incident on a slit 0.845 mm wide. On a...
Monochromatic light from a distant source is incident on a slit 0.845 mm wide. On a screen 2.07 m away, the distance from the central maximum of the diffraction pattern to the first minimum is measured to be 1.41 mm. Calculate the wavelength of the light.
Monochromatic light from a distant source is incident on a slit 0.850 mm wide. On a...
Monochromatic light from a distant source is incident on a slit 0.850 mm wide. On a screen 2.11 m away, the distance from the central maximum of the diffraction pattern to the first minimum is measured to be 1.38 mm . Calculate the wavelength of the light.
A single slit that is 2100 nm wide forms a diffraction pattern when illuminated by monochromatic...
A single slit that is 2100 nm wide forms a diffraction pattern when illuminated by monochromatic light of 680 nm wavelength. At an angle of 10 degrees from the central maximum, what is the ratio of the intensity to the intensity of the central maximum? Thanks..could anyone please show me the steps!
Monochromatic light from a distant source is incident on a slit 0.845 mm wide. On a...
Monochromatic light from a distant source is incident on a slit 0.845 mm wide. On a screen 1.99 m away, the distance from the central maximum of the diffraction pattern to the first minimum is measured to be 1.40 mm . lambda = ______ m
Monochromatic light from a distant source is incident on a slit 0.845 mm wide. On a screen 2.07 m away, the distance from the central maximum of the diffraction pattern to the first minimum is measured to be 1.41 mm. Calculate the wavelength of the light.
