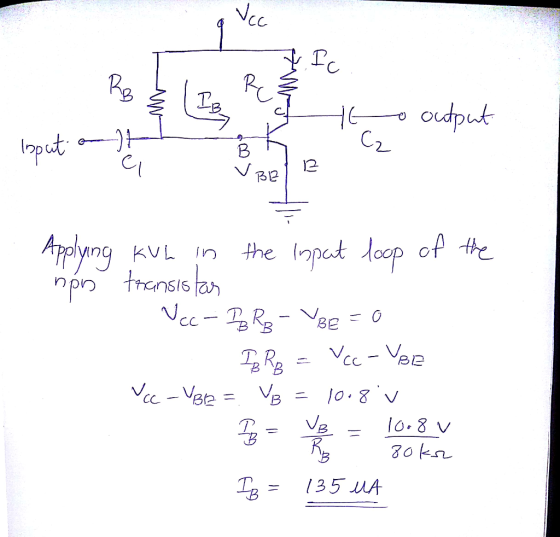

An NPN Transistor has a DC base bias voltage, Vb of 10.8v and an input base resistor, Rb of 80kΩ. What will be the value of the base current (in μA) into the transistor?
An NPN Transistor has a DC base bias voltage, Vb of 10.8v and an input base...
1. An npn transistor is operating in the forward-active region with a base current of 3 μA. It is found that IC = 225 μA for VCE = 5 V and IC = 265 μA for VCE = 10 V. What are the values of β and VA for this transistor
1) Plot base current of a npn transistor versus base-emitter voltage 2) Plot Gate current of a MOSFET transistor versus gate-source voltage
The component values for the npn-transistor amplifier circuit are R = 665 Q, Vcc= 20 V, VB= 2.4 V, and RB= 85k a) The graphon the last page shows the characteristics for the transistor in the above circuit Construct the load line for th is transistor circuit and draw it into the IC vs. VCE graph. Briefly state how you determine the load line. b) Determine the base current, assuming that the transistor is made of silicon. c) Determine the...
IX With reference to the transistor amplifier shown in Figure QB4 below d For the bipolar transistor circuit of Figure QB4 the following DC bias conditions were measured: VB made. 1.6 V and VBE =0.6 V. Detemine the value for RA, stating any assumptions e) Using these same conditions, calculate the current in Re and deduce the current in Rc, stating any assumptions made. Hence find the voltage across Rc and explain whether this voltage is suitable for this amplifier...
a) Determine the DC bias voltage Vce and the current Ic for the voltage divider configuration in Fig. 11. [4.0 marks] +22 V 10 k92 39k92 10 F HE 10 uF ti VE B = 100 3.9 k2 50uF Figure 11 b) Provide the construction diagram of n-channel JFET ii. n-channel depletion type MOSFET iii. n-channel Enhancement type MOSFET i. [3.0 marks) c) Describe the operation of an NPN transistor in the common-emitter (CE) configuration with aid of input and...
answer i-iv please
The NPN transistor in the circuit shown haes B-60 Assuming that the BJT is operating in the deep saturation mode ie. VCEsat-02y and VBE-07V ßforced-10. Question 3: 20% p-60) Assuming that the BJT is operating in the deep Rg i) Calculate collector current, Ic. (4%) ii) Calculate voltage VBB and base current,IB(6%) iii) If we keep VBB and Rc the same, i.e. at 1k2, what is the minimum value of RB to restore the transistor beta to...
ECE 3424 Student Name & ID: An npn transistor having 1s = 10-"A and B = 100 is connected as follows: The emitter is grounded, the base is fed with a constant-current source supplying a dc current of 10 u A, and the collector is connected to a 5-V dc supply via a resistance Rc of 3 k12. Assuming that the transistor is operating in the active mode, find VBE and Vce. Use these values to verify active-mode operation. Replace...
2. For figure 2; a. Determine the dc parameters Vera1), VB(02), VE, Ica, VCEaQra1), VCEQ(a2). b. For the 5 Vrms input, determine the power delivered to the load resistor. c. Draw the load line for the npn transistor. Label the saturation current, Ic(sat), and show the Q-point. +9 V 1.0 kn Di V RL 50 5.0V ms 1.0 kn Vc -9 V 10.Represent the translational mechanical system shown in the Figure in state- space, where xX3(t) is the output IN-...
Design a voltage divider bias circuit to have a Q point of Ic = 10mA and Vce = 10V, with a tolerance of ±10%. Use a 2N3904 NPN transistor and a 20 V DC source to bias the circuit.
QUESTION 1 For normal operation of an npn transistor, the base must be O a. disconnected O b. negative with respect to the emitter O C positive with respect to the emitter O d. positive with respect to the collector QUESTION 2 The bias condition for a transistor to be used as a linear amplifier is called O a. forward-reverse b. forward-forward C. reverse-reverse d. collector bias
