You have a wheel with radius 0.75 m that is made of a 5 kg hoop...

You have a wheel with radius 0.75 m that is made of a 5 kg hoop connected by a single 5 kg rod passing through the center of the hoop and connected to each edge. With the wheel initially at rest, you push on the edge of the wheel with a constant force of 40 N for 0.25 s. Determine the final angular speed of the wheel.

Please show the complete steps.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

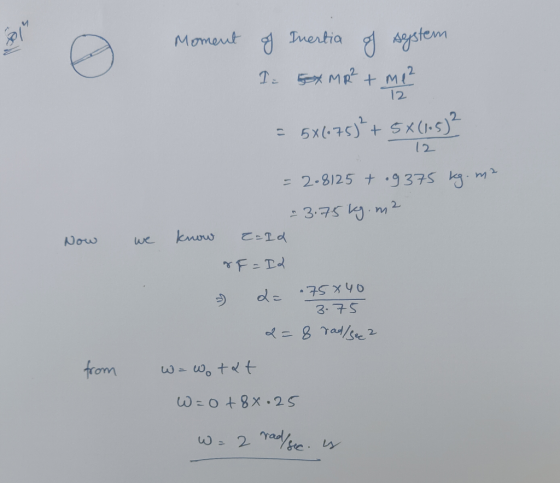

Answer #1

hope this helps.

Please rate positively.

Please comment for any doubt or further clarification..

0 0
