Chapter 35, Problem 37. The radius of curvature of the convex surface of a planoconvex lens...

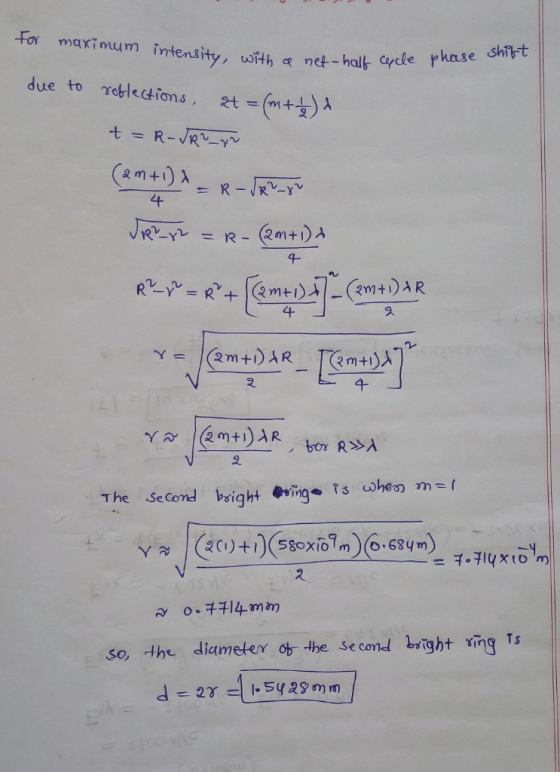

Chapter 35, Problem 37. The radius of curvature of the convex surface of a planoconvex lens is 68.4 cm. The lens is placed convex side down on a perfectly flat glass plate that is illuminated from above with red light having a wavelength of 580 nm. Find the diameter of the second bright ring in the interference pattern. Can you also please explain why you used the formulas in each step.
Homework Answers
Add Answer to:
Chapter 35, Problem 37. The radius of curvature of the convex
surface of a planoconvex lens...
A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass...
A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass plate. The arrangement is illuminated from above with monochromatic light of 569-nm wavelength. The indexes of refraction of the lens and plate are 1.6. Determine the radii of the first and second bright fringes in the reflected light. First bright fringe: m [5 points] 2 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts]...
The figure (a) shows a lens with radius of curvature 90 cm lying on a plate...
The figure (a) shows a lens with radius of curvature 90 cm lying on a plate glass plate and illuminated from above by light with wavelength lambda = 550 nm. Figure (b) (a photograph taken from above the lens) snows that circular interference fringes (called Newton's rings) appear, associated with the variable thickness d of the a r Mm between the lens and the plate. Find the radii r of the interference maxima assuming r/R is much less than 1....
The figure (a) shows a lens with radius of curvature 94 cm lying on a plate...
The figure (a) shows a lens with radius of curvature 94 cm lying
on a plate glass plate and illuminated from above by light with
wavelength ? = 600 nm. Figure (b) (a photograph taken from above
the lens) shows that circular interference fringes (called Newton's
rings) appear, associated with the variable thickness d of the air
film between the lens and the plate. Find the radii r of the
interference maxima assuming r/R is much less than 1. What...
A convex lens is placedon a flat glass plate and illuminated from above with monochromaticred light....
A convex lens is placedon a flat glass plate and illuminated from above with monochromaticred light. When viewed fromabove, concentric bands of red and dark are observed. What doesone observe at the exactcenter of the lens where the lens and the glass plate are in directcontact? A) a darkspot B) a bright spot thatis some color other than red C) a bright redspot D) a rainbow of color
Newton's Ring Experiment a. Newton's rings are formed with reflected light of wavelength 5890x 10-10 m...
Newton's Ring Experiment a. Newton's rings are formed with reflected light of wavelength 5890x 10-10 m using a plano-convex lens and a plane glass plate with liquid between them. The diameter of the third bright ring is 2 mm. If the radius of curvature of the curved surface of the lens is 90 cm find the refractive index of the liquid. b. The diameter of the tenth dark ring in a Newton's ring system viewed normally by reflected light of...
A double-concave lens having radii of curvature of magnitudes 35.0 cm and 25.5 cm is made...
A double-concave lens having radii of curvature of magnitudes 35.0 cm and 25.5 cm is made of a glass for which the refractive index for red light of wavelength 700 nmis 1.44 and for violet light of wavelength 400 nm is 1.57. A white object is placed 54.0 cm in front of this lens. A) Where will the red light be focused? Give your answer as the magnitude of the distance from the image to the lens. sred= ?? cm...
In an experiment, white light is shone vertically down upon a convex spherical lens that is...
In an experiment, white light is shone vertically down upon a convex spherical lens that is resting (curved side down) on a flat piece of glass. Which of the following statements correctly explain why there is there a dark ring at the centre of the resulting interference pattern? NOTE: More than one of the statements may be correct. To get full marks all correct and no incorrect statements must be selected Select all that apply: Destructive interference of two reflected...
Chapter 34, Problem 041 A lens is made of a transparent material having an index of...
Chapter 34, Problem 041 A lens is made of a transparent material having an index of refraction of 1.40. One side of the lens is flat, and the other convex with a radius of curvature of 24.0 cm. (a) Find the focal length of the lens. (b) If an object is placed 120 cm in front of the lens, where will the image be located? (a) Number Units (b) Number Units
A concave spherical mirror with a radius of curvature of 100 cm generates an inverted image...
A concave spherical mirror with a radius of curvature of 100 cm generates an inverted image at a distance of 2.5 m from the mirror. What is the magnification of the image? 1.5 -4.0 -5.0 -0.25 O 0.25 A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37). White light strikes the film nearly perpendicularly. The smallest nonzero film thickness for which the film appears bright due to constructive interference is 153 nm. What...
show all working answers *Question 218: Lens-maker's Equation A double convex lens has radii r7 =...
show all working answers
*Question 218: Lens-maker's Equation A double convex lens has radii r7 = +10 cm and r2 = -10 cm. It is made from glass with an index of refraction of 1.53 for red light and 1.47 for blue light. What is the difference between the focal lengths for blue and red light? Select one: O a. 9.42 cm O b. 10.64 cm O c. 1.20 cm d. 83.3 cm O e. 0.13 cm O f. 0.012...
The figure (a) shows a lens with radius of curvature 90 cm lying on a plate glass plate and illuminated from above by light with wavelength lambda = 550 nm. Figure (b) (a photograph taken from above the lens) snows that circular interference fringes (called Newton's rings) appear, associated with the variable thickness d of the a r Mm between the lens and the plate. Find the radii r of the interference maxima assuming r/R is much less than 1....
The figure (a) shows a lens with radius of curvature 94 cm lying
on a plate glass plate and illuminated from above by light with
wavelength ? = 600 nm. Figure (b) (a photograph taken from above
the lens) shows that circular interference fringes (called Newton's
rings) appear, associated with the variable thickness d of the air
film between the lens and the plate. Find the radii r of the
interference maxima assuming r/R is much less than 1. What...
In an experiment, white light is shone vertically down upon a convex spherical lens that is resting (curved side down) on a flat piece of glass. Which of the following statements correctly explain why there is there a dark ring at the centre of the resulting interference pattern? NOTE: More than one of the statements may be correct. To get full marks all correct and no incorrect statements must be selected Select all that apply: Destructive interference of two reflected...
Chapter 34, Problem 041 A lens is made of a transparent material having an index of refraction of 1.40. One side of the lens is flat, and the other convex with a radius of curvature of 24.0 cm. (a) Find the focal length of the lens. (b) If an object is placed 120 cm in front of the lens, where will the image be located? (a) Number Units (b) Number Units
A concave spherical mirror with a radius of curvature of 100 cm generates an inverted image at a distance of 2.5 m from the mirror. What is the magnification of the image? 1.5 -4.0 -5.0 -0.25 O 0.25 A soap film (n = 1.33) sits on top of a plastic plate (n = 1.37). White light strikes the film nearly perpendicularly. The smallest nonzero film thickness for which the film appears bright due to constructive interference is 153 nm. What...
show all working answers
*Question 218: Lens-maker's Equation A double convex lens has radii r7 = +10 cm and r2 = -10 cm. It is made from glass with an index of refraction of 1.53 for red light and 1.47 for blue light. What is the difference between the focal lengths for blue and red light? Select one: O a. 9.42 cm O b. 10.64 cm O c. 1.20 cm d. 83.3 cm O e. 0.13 cm O f. 0.012...
