High pressure air at 1300 K flows into an aircraft turbine and undergoes a steady-flow, steady-state...

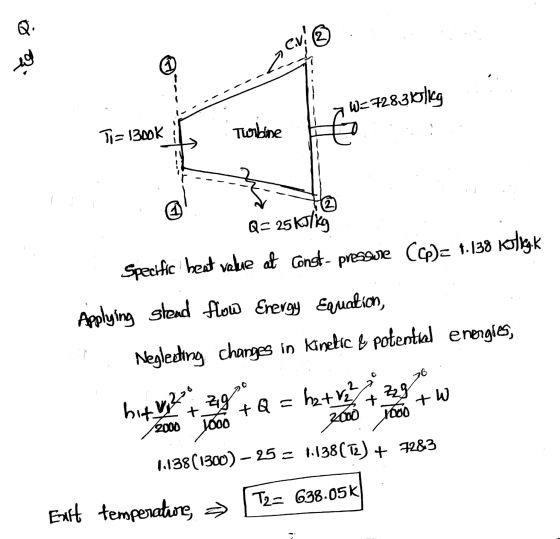

High pressure air at 1300 K flows into an aircraft turbine and undergoes a steady-flow, steady-state adiabatic expansion. Using the average constant-pressure specific heat value of 1.138, determine the exit temperature [K] if the turbine is instead losing heat at a rate of 25 kJ/kg. For you analysis assume the work output is 728.3 kJ/kg.
Homework Answers
Add Answer to:
High pressure air at 1300 K flows into an aircraft turbine and
undergoes a steady-flow, steady-state...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature of 800 kPa and 1100 K, respectively, and exits at 100 kPa. A temperature sensor at the turbine exit indicates that the exit air temperature is 700 K. Kinetic and potential energy effects are negligible, and the air can be treated as an ideal gas. Determine if the exit temperature reading can be correct. If yes, determine the turbine isentropic efficiency.
Consider an air-standard Brayton cycle. At steady state, turbine inlet temperature is 1800 K. If pressure...
Consider an air-standard Brayton cycle. At steady state, turbine inlet temperature is 1800 K. If pressure and temperature at compressor inlet are 1 bar & 32 °C, determine net-work developed per unit mass flow (kJ/kg). Assuming the compressor pressure ratio to be 8, calculate the thermal efficiency.
Air modeled as an ideal gas enters a turbine operating at steady state at 1040 K,...
Air modeled as an ideal gas enters a turbine operating at steady state at 1040 K, 278 kPa and exits at 120 kPa. The mass flow rate is 5.5 kg/s, and the power developed is 1200 kW. Stray heat transfer and kinetic and potential energy effects are negligible. Assuming k = 1.4, determine: (a) the temperature of the air at the turbine exit, in K. (b) the percent isentropic turbine efficiency.
Air enters a turbine in steady flow at 600 kPa, 740 K, and 120 m/s. The...
Air enters a turbine in steady flow at 600 kPa, 740 K, and 120 m/s. The exit conditions are 100 kPa, 450 K, and 220 m/s. A heat loss of 15 kJ/kg occurs, and the inlet area is 4.91 cm2 . Determine (a) the kinetic-energy change, in kJ/kg, (b) the power output, in kW, and (c) the ratio of the inlet- to outletpipe diameters
35% Air (udara) is compressed in an axial flow compressor operating at steady state from 27°C,...
35% Air (udara) is compressed in an axial flow compressor operating at steady state from 27°C, 1 bar to a pressure of 4,41 bar. The work input required is 96,23 kJ/kg of air flowing through the compressor. Heat transfer from the compressor occurs at the rate of 15,65 kJ/kg at the surface of the compressor where the temperature is 40'C. Kinetic and potential energy changes can be ignored. Assuming air as an ideal gas with constant specific heat, cp =...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-m opening with an average velocity of 40 m/s, and exhausts through a 1-m opening Detormine (a) the mass fnow rate of air through the turbine and (b) the power produced by the turbine For air, take the ideal gas constant and specific heat value at constant pressure as o Yue Determine (a) the mass flow rate...
An air compressor is operating at a steady state with a mass flow rate of 1.3...
An air compressor is operating at a steady state with a mass flow rate of 1.3 kg/s. The inlet pressure and temperature are P1 171 kPa and T1 319 K, respectively. The exit pressure and temperature are P2 609 kPa and T2 428 K. respectively. Heat lost from the compressor to the surroundings per unit mass flow is 16 kJ/kg. Air can be assumed as an ideal gas. Kinetic and potential energy changes can be neglected. what is the required...
Problem 7.67 The system shown at right is the back end of a jet aircraft engine....
Problem 7.67 The system shown at right is the back end of a jet aircraft engine. Operating information about the system is shown in the table and figure. Air flows steadily through the system. Assume changes in gravitational potential energy are negligible and air can be modeled as an ideal gas with room temperature specific heats. (a) Determine the velocity of the air leaving the nozzle, in m/s. (b) Determine the cross-sectional area Ac at the nozzle outlet, in m...
- Question 3 Superheated steam at a pressure and temperature of 60 bar and 450 degC...
- Question 3 Superheated steam at a pressure and temperature of 60 bar and 450 degC undergoes adiabatic expansion through a turbine at a steady rate of 16.3 kg/s. The steam exits the turbine in a wet condition with a pressure of 0.34 bar and specific enthalpy of 2,355 kJ/kg. 25 points Determine the How Did I Do? How Did I Do? properties of the superheated steam at the turbine entrance (state 1): Specific volume, V: 0.0521 m^3/kg kJ/kg Specifio...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
Consider an air-standard Brayton cycle. At steady state, turbine inlet temperature is 1800 K. If pressure and temperature at compressor inlet are 1 bar & 32 °C, determine net-work developed per unit mass flow (kJ/kg). Assuming the compressor pressure ratio to be 8, calculate the thermal efficiency.
35% Air (udara) is compressed in an axial flow compressor operating at steady state from 27°C, 1 bar to a pressure of 4,41 bar. The work input required is 96,23 kJ/kg of air flowing through the compressor. Heat transfer from the compressor occurs at the rate of 15,65 kJ/kg at the surface of the compressor where the temperature is 40'C. Kinetic and potential energy changes can be ignored. Assuming air as an ideal gas with constant specific heat, cp =...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-m opening with an average velocity of 40 m/s, and exhausts through a 1-m opening Detormine (a) the mass fnow rate of air through the turbine and (b) the power produced by the turbine For air, take the ideal gas constant and specific heat value at constant pressure as o Yue Determine (a) the mass flow rate...
An air compressor is operating at a steady state with a mass flow rate of 1.3 kg/s. The inlet pressure and temperature are P1 171 kPa and T1 319 K, respectively. The exit pressure and temperature are P2 609 kPa and T2 428 K. respectively. Heat lost from the compressor to the surroundings per unit mass flow is 16 kJ/kg. Air can be assumed as an ideal gas. Kinetic and potential energy changes can be neglected. what is the required...
Problem 7.67 The system shown at right is the back end of a jet aircraft engine. Operating information about the system is shown in the table and figure. Air flows steadily through the system. Assume changes in gravitational potential energy are negligible and air can be modeled as an ideal gas with room temperature specific heats. (a) Determine the velocity of the air leaving the nozzle, in m/s. (b) Determine the cross-sectional area Ac at the nozzle outlet, in m...
- Question 3 Superheated steam at a pressure and temperature of 60 bar and 450 degC undergoes adiabatic expansion through a turbine at a steady rate of 16.3 kg/s. The steam exits the turbine in a wet condition with a pressure of 0.34 bar and specific enthalpy of 2,355 kJ/kg. 25 points Determine the How Did I Do? How Did I Do? properties of the superheated steam at the turbine entrance (state 1): Specific volume, V: 0.0521 m^3/kg kJ/kg Specifio...
Air enters a compressor operating at steady state at a pressure of 100 kPa, a temperature of 290 K, and with a mass flow rate of 0.72 kg/s. At the exit, the pressure is 700 kPa and the temperature is 450 K. Heat transfer from the compressor to its surroundings occurs at a rate of 3 kW. Kinetic and potential energy changes can be ignored. Determine the power input to the compressor, in kW. Assume that the air is an...
