9. Charge Q is distributed on a metallic sphere of radius a. What is the electric...

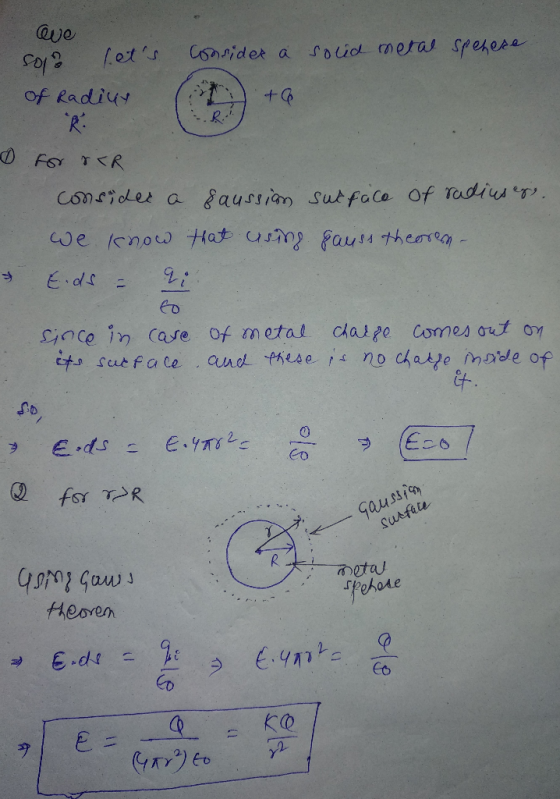

9. Charge Q is distributed on a metallic sphere of radius a. What is the electric field at a point a distance r from the center of the sphere? Consider both cases r > a and r < a.
Homework Answers
Add Answer to:
9. Charge Q is distributed on a metallic sphere of radius a.
What is the electric...
Charge Q is uniformly distributed inside a sphere of radius R. (a) Determine the electric field...
Charge Q is uniformly distributed inside a sphere of radius R. (a) Determine the electric field inside and outside the sphere. Explain how you arrive at the answer. (b) A cavity of radius R/4, and centered at a point a distance R/2 from the center of the sphere, is made within the sphere. This means that within the sphere of radius R, there is a smaller sphere of radius R/4 which has no charge (the charge density is zero within...
A solid non-conductive sphere of radius R has a total charge Q which is distributed uniformly...
A solid non-conductive sphere of radius R has a total charge Q which is distributed uniformly throughout the sphere. a) What is the electric field a distance r from the center of the sphere if r<R? b) What is the electric field a distance r from the center of the sphere if r>R? c) Test your solutions for part a) and b) by checking for agreement when r=R.
Charge Q is distributed uniformly throughout the volume of an insulating sphere of radius R =...
Charge Q is distributed uniformly throughout the volume of an insulating sphere of radius R = 4.00 cm. At a distance of r = 8.00 cm from the center of the sphere, the electric field due to the charge distribution has magnitude 640 N/C . a. What is the volume charge density for the sphere? Express your answer to two significant figures and include the appropriate units. b. What is the magnitude of the electric field at a distance...
3) The net charge Q is either on a metallic sphere of radius R or in...
3) The net charge Q is either on a metallic sphere of radius R or in a dielectric sphere of radius R as well. Compare the energy in the electric field associated with these two charge distributions.
Problem 2: a conducting sphere A conducting sphere has a positive net charge Q and radius...
Problem 2: a conducting sphere A conducting sphere has a positive net charge Q and radius R. (Note: since the sphere is conducting all the charge is distributed on its surface.) a) By reflecting on the symmetry of the charge distribution of the system, determine what the E-field lines look like outside the sphere for any r > R. Describe the E-field in words and with a simple sketch. Make sure to also show the direction of the E-field lines....
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The...
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The point P that is located a distance r from the center of the sphere. (i) Determine the electric field when the point P is inside the sphere (r < R). (ii) Determine the electric field when the point P is outside the sphere (r > R). (iii) Plot the magnitude of the electric field as a function of r.
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The...
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The point P that is located a distance r from the center of the sphere. (i) Determine the electric field when the point P is inside the sphere (r < R). (i) Determine the electric field when the point P is outside the sphere (r> R). (iii) Plot the magnitude of the electric field as a function of r.
A charge, q, is uniformly distributed through a sphere of radius R. Surrounding the sphere is...
A charge, q, is uniformly distributed through a sphere of radius R. Surrounding the sphere is a conducting shell having inner radius 2R and outer radius 3R. The shell has a charge of -4q placed on it. a. What is the electric field and electric potential, relative to V = 0 at infinity at r for r > 3R? b. What is the electric field and electric potential at r for 3R > r > 2R? c. What is the...
Consider a uniformly volume‑charged sphere of radius R and charge Q . What is the electric...
Consider a uniformly volume‑charged sphere of radius R and charge Q . What is the electric potential on the surface of the sphere in terms of R , Q , and ϵ 0 , choosing the zero reference point for the potential at the center of the sphere?
An isolated thin spherical conducting shell of radius R has charge Q uniformly distributed on its...
An isolated thin spherical conducting shell of radius R has charge Q uniformly distributed on its surface. Write the results in terms of k, Q and R. (a) Find the electric field at a distance, r = 2R from the center of the sphere. (b) What is the electric field at the center of the conducting sphere? What is the electric field inside the conducting sphere? Please explain the steps and formuals. Mandatory !!!
3) The net charge Q is either on a metallic sphere of radius R or in a dielectric sphere of radius R as well. Compare the energy in the electric field associated with these two charge distributions.
Problem 2: a conducting sphere A conducting sphere has a positive net charge Q and radius R. (Note: since the sphere is conducting all the charge is distributed on its surface.) a) By reflecting on the symmetry of the charge distribution of the system, determine what the E-field lines look like outside the sphere for any r > R. Describe the E-field in words and with a simple sketch. Make sure to also show the direction of the E-field lines....
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The point P that is located a distance r from the center of the sphere. (i) Determine the electric field when the point P is inside the sphere (r < R). (ii) Determine the electric field when the point P is outside the sphere (r > R). (iii) Plot the magnitude of the electric field as a function of r.
Problem 8 A positive charge is uniformly distributed through an insulating sphere of radius R. The point P that is located a distance r from the center of the sphere. (i) Determine the electric field when the point P is inside the sphere (r < R). (i) Determine the electric field when the point P is outside the sphere (r> R). (iii) Plot the magnitude of the electric field as a function of r.
