The power factor at which a three-phase induction motor operates is 0,82 When the intake power...
The power factor at which a three-phase induction motor operates is 0,82 When the intake power is 2100 kW. Capacitor are installed to improve this power factor to 0,97 lagging.

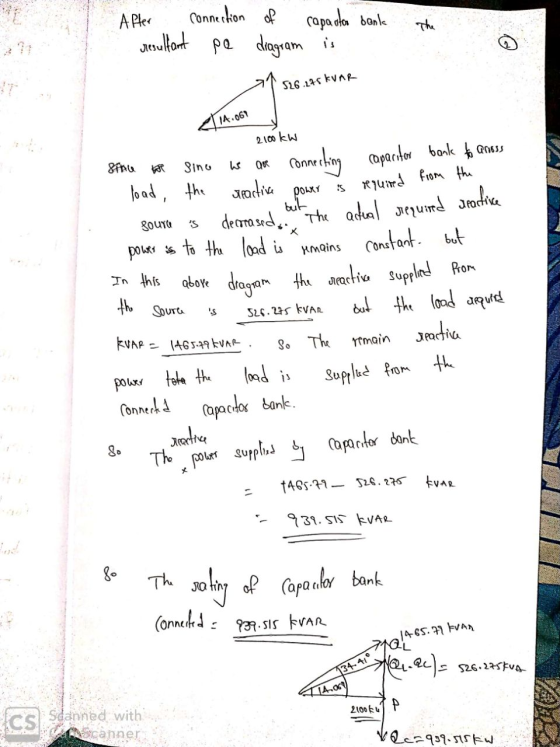

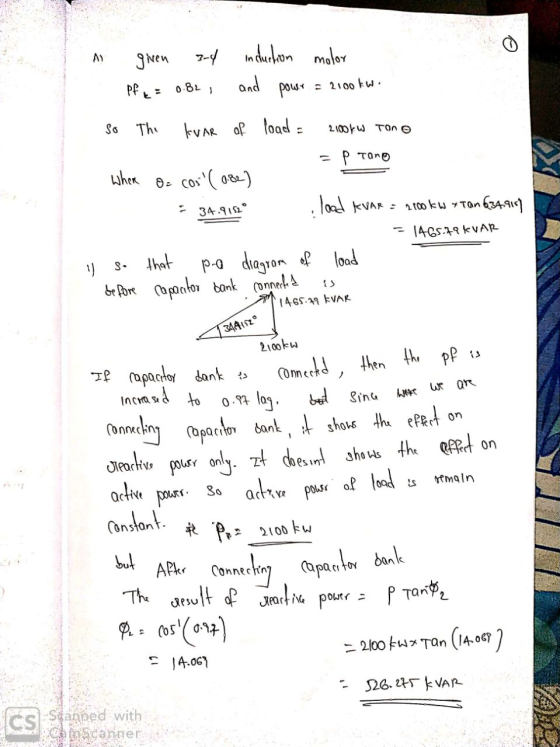

A) Calculate the kVA r of this capacitor bank and show all the work done and diagram involved
B(

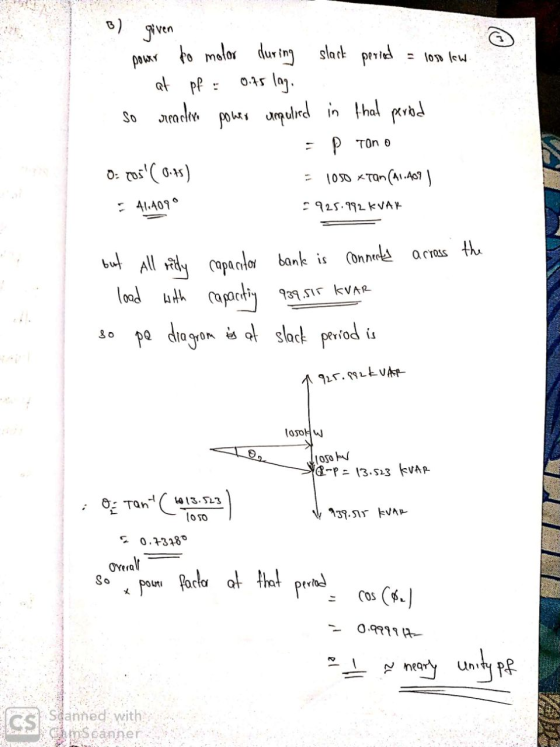

during slack periods, the motor draws 1050 kW at a power of 0,75.Determine the overall power factor if capacitor are not removed.
Show all work and diagram.
Homework Answers
Add Answer to:
The power factor at which a three-phase induction motor
operates is 0,82 When the intake power...
A three-phase induction motor delivers 500 hp at an efficiency of 0.91, the operating power factor...
A three-phase induction motor delivers 500 hp at an efficiency of 0.91, the operating power factor being 0.76 lagging. A loaded synchronous motor with a power consumption of 100 kW is connected in parallel with the induction motor. Calculate the necessary kVA and the operating power factor of the synchronous motor if the overall power factor is to be unity. Answer should be 365 kVA, 0.274
3 phase, 37.3 Kw, 440 V, 50 Hz induction motor operates at full load with efficiency...
3 phase, 37.3 Kw, 440 V, 50 Hz induction motor operates at full load with efficiency 89% and power factor 0.85 lagging. Calculate: A) The total KVA rating of capacitor required to rise full load power factor to 0.95 lagging. B) What is capacitance per phase if capacitor: 1) Delta connected. 2) Star connected.
QUESTION 6 (MULTI-PHASE SYSTEMS) A 400 v, 50 Hz, three-phase distribution system supplies a 20 kVA, three-phase induction motor load at a power factor of 0 8 lagging, and a star-connected set of...
QUESTION 6 (MULTI-PHASE SYSTEMS) A 400 v, 50 Hz, three-phase distribution system supplies a 20 kVA, three-phase induction motor load at a power factor of 0 8 lagging, and a star-connected set of impedances, each having a resistance of 10 Ω and an inductive reactance of 8 Ω Calculate the capacitance of delta-connected capacitors required to improve the overalil power factor to 0 95 lagging [14] TOTAL 1001
QUESTION 6 (MULTI-PHASE SYSTEMS) A 400 v, 50 Hz, three-phase distribution system...
An induction motor draws 1.0 kW at 0.8 lagging power factor from a 250 V, 60...
An induction motor draws 1.0 kW at 0.8 lagging power factor from a 250 V, 60 Hz source. [38] (a) What value of capacitance must be placed in parallel with the motor to raise the line power factor to 93% lagging? (b) With the capacitor in service, what are the magnitudes of the motor current, capacitor current, and line current? Solution:
An industrial plant consisting primarily of induction motor loads absorbs 1200kW at 0.65 power factor lagging....
An industrial plant consisting primarily of induction motor loads absorbs 1200kW at 0.65 power factor lagging. Compute the required kVA rating of a shunt capacitor to improve the power factor to 0.95 leading.
QUESTION 3 3.1 A single-phase 39 kW, 380 V, 50Hz induction motor operates on full load...
QUESTION 3 3.1 A single-phase 39 kW, 380 V, 50Hz induction motor operates on full load with an efficiency of 89% and at a power factor of 0.809 lagging. Three identical parallel- connected capacitors are used to raise the power factor to 0.96. 3.1.1 Calculate the kVAr rating of the capacitor bank. (9) 3.1.2 Calculate the capacitance of each capacitor. (6) [15]
A small factory has different types of loads which are grouped together as follows A) induction...
A small factory has different types of loads which are
grouped together as follows
A) induction motors : 1200 hp, 0.8 lag PF
B) Heating loads: 100kW at unity PF
A 3 phase synchronous motor is installed at the
factory to improve the factory's overall power factor. Calculate
how much reactively power per phase the synchronous motor must
supply to the system to maintain an overall power factor of 0.9
lagging. 1 hp = 0.746 kW
together as follows: a....
please answer all parts with steps (15%) A three phase source supplies power to an induction...
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
A three-phase feeder has line voltage of 13.8 kV and supplies load of 7000 kVA at...
A three-phase feeder has line voltage of 13.8 kV and supplies load of 7000 kVA at power factor of 0.8 lagging. Find: The feeder current in A, real power in kW and Reactive power in kVAr. The capacitor size in kVAr to improve the power factor to 0.98. The feeder power in kW and kVA and current in A, after installing the capacitor bank.
A 2 pole ac induction motor operates on a 480 V three phase power system. The...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
QUESTION 6 (MULTI-PHASE SYSTEMS) A 400 v, 50 Hz, three-phase distribution system supplies a 20 kVA, three-phase induction motor load at a power factor of 0 8 lagging, and a star-connected set of impedances, each having a resistance of 10 Ω and an inductive reactance of 8 Ω Calculate the capacitance of delta-connected capacitors required to improve the overalil power factor to 0 95 lagging [14] TOTAL 1001
QUESTION 6 (MULTI-PHASE SYSTEMS) A 400 v, 50 Hz, three-phase distribution system...
An induction motor draws 1.0 kW at 0.8 lagging power factor from a 250 V, 60 Hz source. [38] (a) What value of capacitance must be placed in parallel with the motor to raise the line power factor to 93% lagging? (b) With the capacitor in service, what are the magnitudes of the motor current, capacitor current, and line current? Solution:
QUESTION 3 3.1 A single-phase 39 kW, 380 V, 50Hz induction motor operates on full load with an efficiency of 89% and at a power factor of 0.809 lagging. Three identical parallel- connected capacitors are used to raise the power factor to 0.96. 3.1.1 Calculate the kVAr rating of the capacitor bank. (9) 3.1.2 Calculate the capacitance of each capacitor. (6) [15]
A small factory has different types of loads which are
grouped together as follows
A) induction motors : 1200 hp, 0.8 lag PF
B) Heating loads: 100kW at unity PF
A 3 phase synchronous motor is installed at the
factory to improve the factory's overall power factor. Calculate
how much reactively power per phase the synchronous motor must
supply to the system to maintain an overall power factor of 0.9
lagging. 1 hp = 0.746 kW
together as follows: a....
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
