Question 1

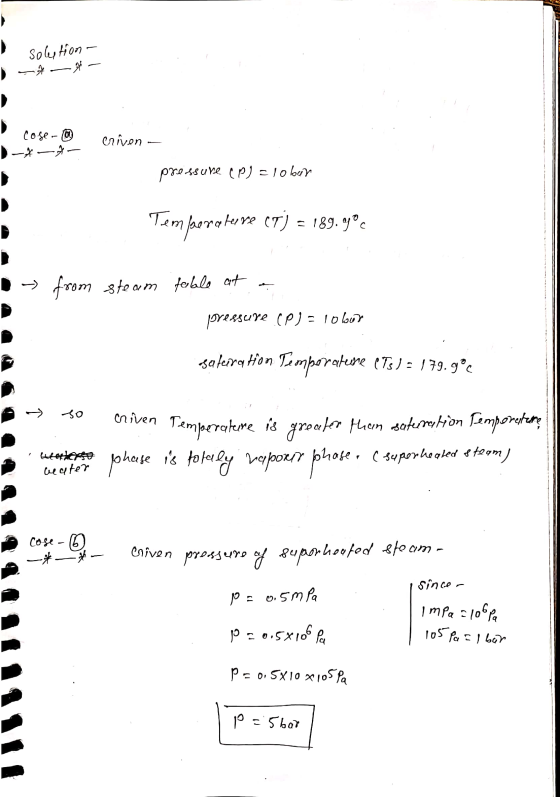

a) A sample of water at a pressure of 10 bar has a temperature of 189.9 oC. What state is the water in?

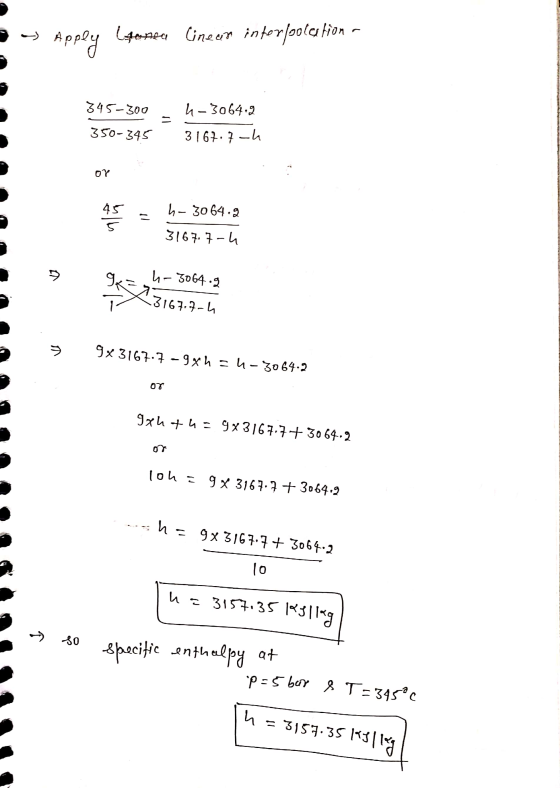

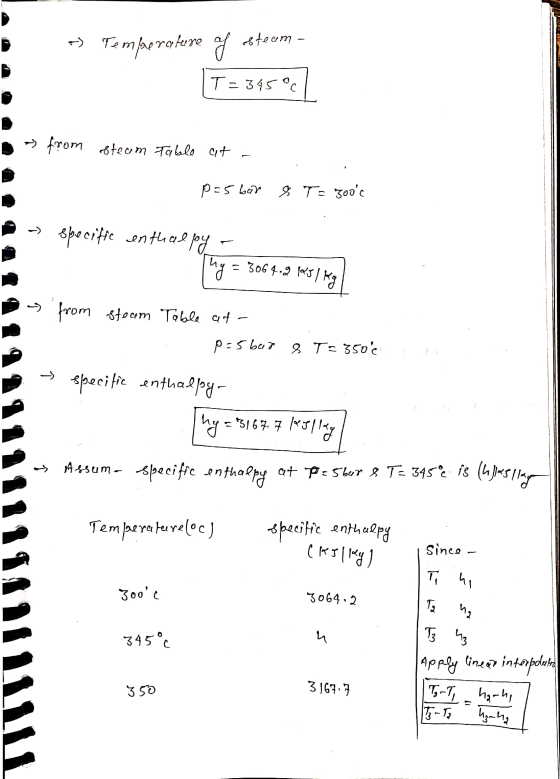

b) Superheated water vapour is held in a vessel at 0.5MPa. If the temperature of the vapour is 345 oC, then determine the specific enthalpy of the vapour.
c) A liquid/vapour mixture of refrigerant 22(R-22) is stored at 10 bar and has a specific enthalpy of 220kJ/kg. Determine the quality of the mixture.
Homework Answers
Add Answer to:
Question 1
a) A sample of water at a pressure of 10 bar has a
temperature...
