A composite wall 4 meters long and 2 meters high consists of 15 cm of concrete...

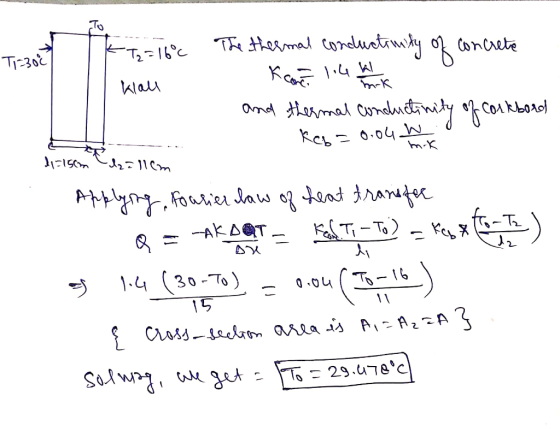

A composite wall 4 meters long and 2 meters high consists of 15 cm of concrete (outside) joined with 11 cm of corkboard (inside). The inside temperature is 16 degrees C, and the outside temperature is 30 degrees C. Find the temperature at the interface fo the two materials?
Interface Temperature = 14.5 degrees C -wrong
Homework Answers
Add Answer to:
A composite wall 4 meters long and 2 meters high consists of 15
cm of concrete...
Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm...
Figure Q2(b) shows the composite wall of a freezing
plant which consists of a 10 cm layer of corkboard on the inside
and 14 cm layer of concrete on the outside, with an area of 1 m2.
The temperature on the inside corkboard surface is -20 °C, and the
temperature on the outside concrete surface is 24 °C. The thermal
conductivity for corkboard is 0.04 W/m.K and for concrete is 0.8
W/m.K.
Calculate the temperature of the interface between the...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled with 350 ml of glycerine (coefficient of volume expansion = 5.1x10+ °C!). Analyze if the glycerine will overflow if the temperature of both beaker and glycerine is heated from 25 °C to 100 °C. (5 marks) (b) Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm layer of corkboard on the inside and 14 cm layer of...
Problem 1: A furnace has a 4 m high composite wall constructed of 4 cm thick...
Problem 1: A furnace has a 4 m high composite wall constructed of 4 cm thick fireclay brick on the inside, and 10 cm of oval-core concrete block with sand in the cores as the outer surface. The inside surface of the wall is at 400°C. The outer surface is exposed to quiescent air at 23°C (i.e., natural convection is occurring). What is the steady-state temperature of the outer surface of the wall? Use a film temperature of 400K to...
A flat composite wall consists of four layers of different materials (Concrete, Carbon steel, Kapok, and...
A flat composite wall consists of four layers of different materials (Concrete, Carbon steel, Kapok, and Masonry Brick). Each layer is 4 inch thick. During service, heat energy transfers from the left side of the wall (higher temperature-500°C) to the right (lower temperature 20°C), thus generting the temperature profile as shown in figure below. Please identify material for each layer and provide explanation (or short calculations if applicable). Also, determine temperature at the boundary between A.1 3d and 4th layers....
The wall of a house is 3 m high, 10 m long and 30 cm thick;...
The wall of a house is 3 m high, 10 m long and 30 cm thick; it has an effective thermal conductivity of 10 W/m K. The outer surface of the wall has an emissivity of 0.75. On a winter night, the outer surface of this wall is at a temperature of 0 °C and the air is at a temperature of –10 °C. The heat transfer coefficient for the outside wall is 8 W/m2 K. The outside wall also...
4-1 The exterior wall of a single-story office building near Chicago is 3 m high and...
4-1 The exterior wall of a single-story office building near Chicago is 3 m high and 15 m long. The wall consists of 100-mm face brick, 40-mm polystyrene insulating board. 150-mm lightweight concrete block, and an interior 16-mm gypsum board. The wall contains three single-glass windows 1.5 m high by 2 m long. Calculate the heat loss through the wall at design conditions if the inside temperature is 20'C
4-1 The exterior wall of a single-story office building near Chicago...
Calculate the R-value and U-value for the following wall: (from outside to inside) 8" concrete block,...
Calculate the R-value and U-value for the following wall: (from outside to inside) 8" concrete block, 1" air space, 1" cellular polyurethane insulation,,3.5" batt insulation with steel studs,1/2" drywall B) For the wall above, calculate the temperature at each material interface point. Assume the interior space temperature is 72F db and the outside air temperature is -15F db. C) Calculate the peak heat loss in terms of BTU/hr if the above wall is 30 ft long and 10 ft high.
A concrete wall of a house is 45 cm thick and has a surface area 20m...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
• A wall of an industrial oven consists of three different materials, as depicted in Figure....
• A wall of an industrial oven consists of three different materials, as depicted in Figure. • The first layer is composed of 5 cm of insulating cement with a clay binder that has a thermal conductivity of 0.08 W/m.K. • The second layer is made from 15 cm of 6-ply asbestos board with a thermal conductivity of 0.074 W/mK (W/m.°C). • The exterior consists of 10-cm common brick with a thermal conductivity of 0.72 W/mK (W/m °C). • The...
1. A wall of an industrial oven consists of two different materials, as depicted in Figure....
1. A wall of an industrial oven consists of two different materials, as depicted in Figure. The first layer is composed of 5 cm of insulating cement with a clay binder that has a thermal conductivity of 0.08 W/m K. The second layer is made from 15 cm of 6-ply asbestos board with a thermal conductivity of 0.074 W/ mK (W/m °C). The inside oven air is 400°C with a convection coefficient of 100 W/m² K (W/m2 °C) and the...
Figure Q2(b) shows the composite wall of a freezing
plant which consists of a 10 cm layer of corkboard on the inside
and 14 cm layer of concrete on the outside, with an area of 1 m2.
The temperature on the inside corkboard surface is -20 °C, and the
temperature on the outside concrete surface is 24 °C. The thermal
conductivity for corkboard is 0.04 W/m.K and for concrete is 0.8
W/m.K.
Calculate the temperature of the interface between the...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled with 350 ml of glycerine (coefficient of volume expansion = 5.1x10+ °C!). Analyze if the glycerine will overflow if the temperature of both beaker and glycerine is heated from 25 °C to 100 °C. (5 marks) (b) Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm layer of corkboard on the inside and 14 cm layer of...
Problem 1: A furnace has a 4 m high composite wall constructed of 4 cm thick fireclay brick on the inside, and 10 cm of oval-core concrete block with sand in the cores as the outer surface. The inside surface of the wall is at 400°C. The outer surface is exposed to quiescent air at 23°C (i.e., natural convection is occurring). What is the steady-state temperature of the outer surface of the wall? Use a film temperature of 400K to...
A flat composite wall consists of four layers of different materials (Concrete, Carbon steel, Kapok, and Masonry Brick). Each layer is 4 inch thick. During service, heat energy transfers from the left side of the wall (higher temperature-500°C) to the right (lower temperature 20°C), thus generting the temperature profile as shown in figure below. Please identify material for each layer and provide explanation (or short calculations if applicable). Also, determine temperature at the boundary between A.1 3d and 4th layers....
4-1 The exterior wall of a single-story office building near Chicago is 3 m high and 15 m long. The wall consists of 100-mm face brick, 40-mm polystyrene insulating board. 150-mm lightweight concrete block, and an interior 16-mm gypsum board. The wall contains three single-glass windows 1.5 m high by 2 m long. Calculate the heat loss through the wall at design conditions if the inside temperature is 20'C
4-1 The exterior wall of a single-story office building near Chicago...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
• A wall of an industrial oven consists of three different materials, as depicted in Figure. • The first layer is composed of 5 cm of insulating cement with a clay binder that has a thermal conductivity of 0.08 W/m.K. • The second layer is made from 15 cm of 6-ply asbestos board with a thermal conductivity of 0.074 W/mK (W/m.°C). • The exterior consists of 10-cm common brick with a thermal conductivity of 0.72 W/mK (W/m °C). • The...
1. A wall of an industrial oven consists of two different materials, as depicted in Figure. The first layer is composed of 5 cm of insulating cement with a clay binder that has a thermal conductivity of 0.08 W/m K. The second layer is made from 15 cm of 6-ply asbestos board with a thermal conductivity of 0.074 W/ mK (W/m °C). The inside oven air is 400°C with a convection coefficient of 100 W/m² K (W/m2 °C) and the...
