Question

EXPLAIN a) what the main advantages of MPSK (BPSK, QPSK, . . .) over other digital...

EXPLAIN

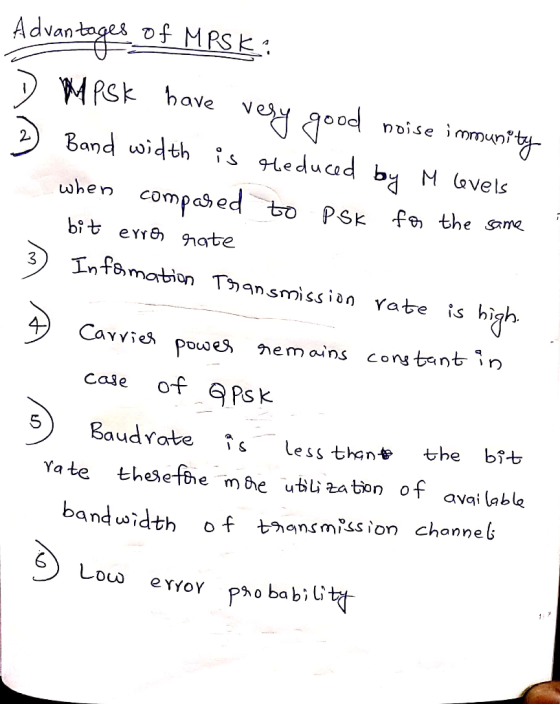

a) what the main advantages of MPSK (BPSK, QPSK, . . .) over other digital communication systems are,

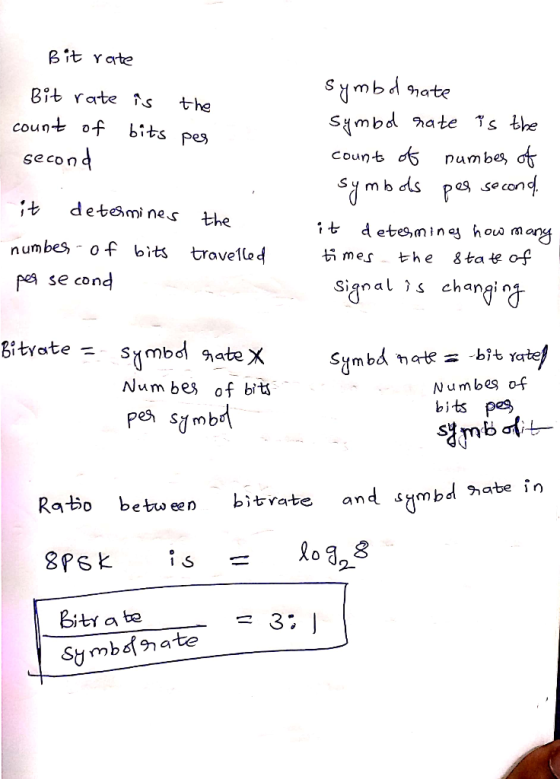

b) what the difference(s) between bitrate and symbol rate is(are) and what the ratio between them for an 8-PSK is.

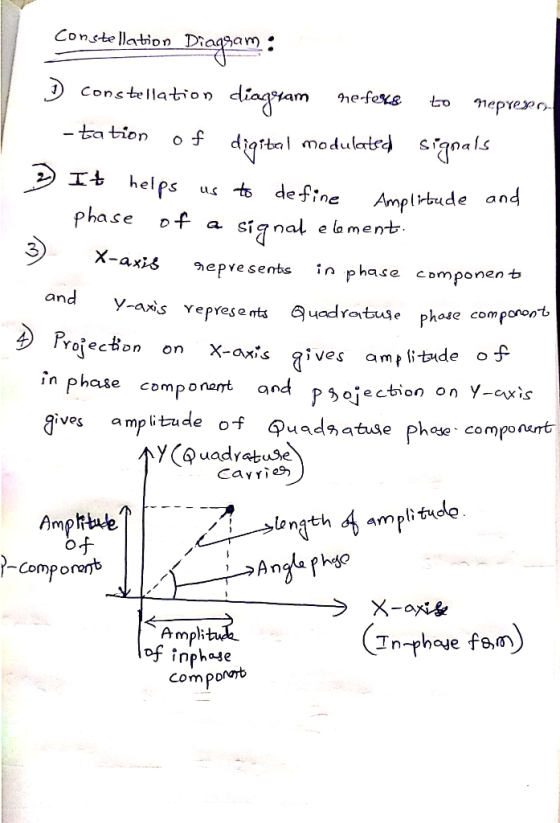

c) what a “constellation diagram” refers to

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
