A 50 ohm resistor and a 2 nf capacitor are connected in series across side 1...

A 50 ohm resistor and a 2 nf capacitor are connected in series across side 1 of an ideal
transformer. If the transformer has a turns ratio N1/N2 = 20, what is the impedance
measured on side 2 of the transformer at a frequency f = 1.5 kHz?
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

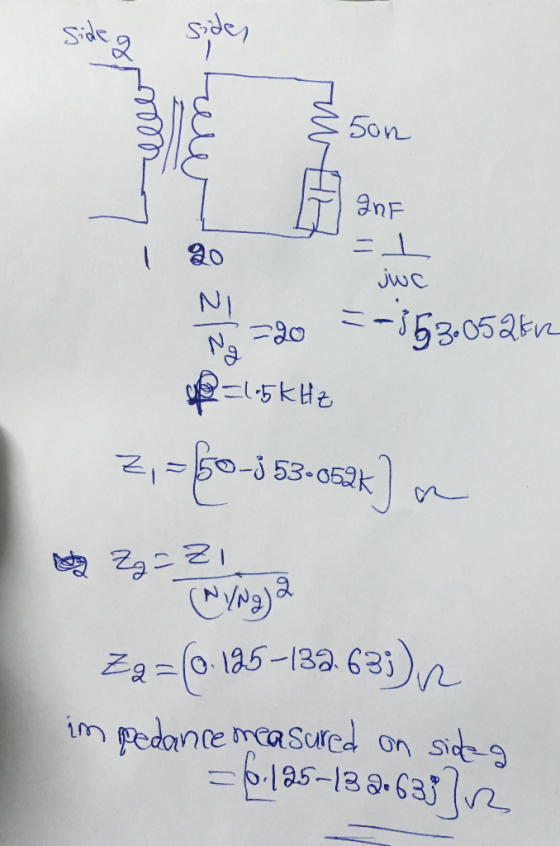

Answer #1

0 0
