A 8.9×10^−4 V/m electric field creates a 2.6×10^17 electrons/s current in a 1.3-mm-diameter aluminum wire. Part...
A 8.9×10^−4 V/m electric field creates a 2.6×10^17 electrons/s current in a 1.3-mm-diameter aluminum wire.

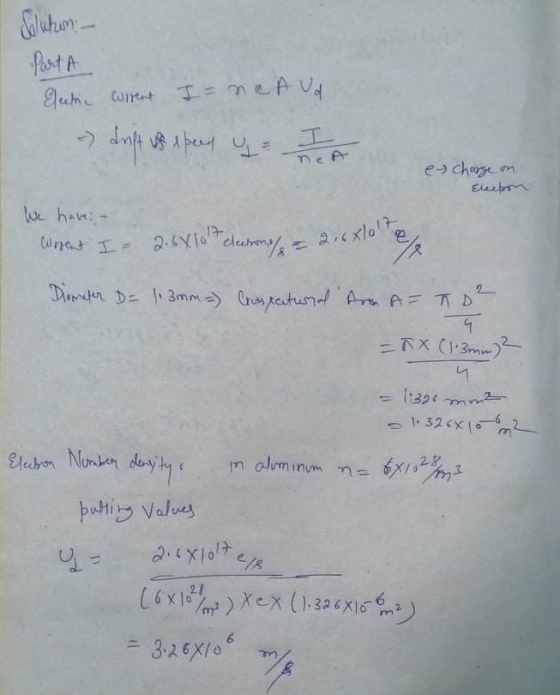

Part A:What is the drift speed? Express your answer using two significant figures.

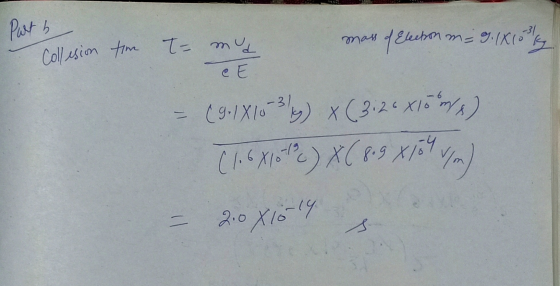

Part B: What is the mean time between collisions for electrons in this wire? Express your answer using two significant figures.
Homework Answers
Add Answer to:
A 8.9×10^−4 V/m electric field creates a 2.6×10^17 electrons/s
current in a 1.3-mm-diameter aluminum wire.
Part...
A 1.4 Times 10^-3 V/m electric field creates a 5.5 Times 10^17 electrons/s current in a...
A 1.4 Times 10^-3 V/m electric field creates a 5.5 Times 10^17 electrons/s current in a 1.5-mm-diameter aluminum wire. What is the drift speed? Express your answer using two significant figures. What is the mean time between collisions for electrons in this wire? Express your answer using two significant figures.
A 3.0×10−4 V/m electric field creates a 2.1×1017 electrons/s current in a 2.0-mm-diameter aluminum wire. Part...
A 3.0×10−4 V/m electric field creates a 2.1×1017 electrons/s current in a 2.0-mm-diameter aluminum wire. Part A What is the drift speed? Part B What is the mean time between collisions for electrons in this wire?
A 9.8×10−4 V/m electric field creates a 4.9×1017 electrons/s current in a 1.7-mm-diameter aluminum wire. What...
A 9.8×10−4 V/m electric field creates a 4.9×1017 electrons/s current in a 1.7-mm-diameter aluminum wire. What is the drift speed and what is the mean time between collisions for electrons in this wire?
A 1.9×10−3 V/m electric field creates a 3.2×1017 electrons/s current in a 1.0-mm-diameter aluminum wire. What...
A 1.9×10−3 V/m electric field creates a 3.2×1017 electrons/s current in a 1.0-mm-diameter aluminum wire. What is the drift speed? What is the mean time between collisions for electrons in this wire?
A 0.300-mm-diameter silver wire carries a 10.0 mA current. Part A What is the electric field...
A 0.300-mm-diameter silver wire carries a 10.0 mA current. Part A What is the electric field in the wire? Express your answer with the appropriate units. Part B What is the electron drift speed in the wire? Express your answer with the appropriate units.
A current-carrying gold wire has a diameter of 0.90 mm. The electric field in the wire...
A current-carrying gold wire has a diameter of 0.90 mm. The electric field in the wire is 0.51 V/m. Submit Request Answer Part C What is the resistance of a 6.7-m length of this wire? Express your answer using two significant figures. o ACP O O ? R= Submit Request Answer
An aluminum wire with a diameter of 0.125 mm has a uniform electric field of 0.295...
An aluminum wire with a diameter of 0.125 mm has a uniform electric field of 0.295 V/m imposed along its entire length. The temperature of the wire is 55.0° C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity of aluminum at this temperature. ρ = 3.2e-8 Ω·m (b) What is the current density in the wire? J = MA / m2 (c) What is the total...
Part A How long must a 0.58-mm-diameter aluminum wire be to have a 0.40 A current...
Part A How long must a 0.58-mm-diameter aluminum wire be to have a 0.40 A current when connected to the terminals of a 1.5 V flashlight battery? Express your answer to two significant figures and include the appropriate units. Part B What is the current if the wire is half this length? Express your answer to two significant figures and include the appropriate units.
An aluminum wire with a diameter of 0.095 mm has a uniform electric field of 0.205...
An aluminum wire with a diameter of 0.095 mm has a uniform electric field of 0.205 V/m imposed along its entire length. The temperature of the wire is 35.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in . m) of aluminum at this temperature. p= 2.m (b) What is the current density (in MA/m2) in the wire? = C MA/m2 (c) What is the total...
An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235...
An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235 V/m imposed along its entire length. The temperature of the wire is 45.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in Ω · m) of aluminum at this temperature. ρ = Ω · m (b) What is the current density (in MA/m2) in the wire? J = MA/m2 (c) What is...
A 1.4 Times 10^-3 V/m electric field creates a 5.5 Times 10^17 electrons/s current in a 1.5-mm-diameter aluminum wire. What is the drift speed? Express your answer using two significant figures. What is the mean time between collisions for electrons in this wire? Express your answer using two significant figures.
A current-carrying gold wire has a diameter of 0.90 mm. The electric field in the wire is 0.51 V/m. Submit Request Answer Part C What is the resistance of a 6.7-m length of this wire? Express your answer using two significant figures. o ACP O O ? R= Submit Request Answer
An aluminum wire with a diameter of 0.095 mm has a uniform electric field of 0.205 V/m imposed along its entire length. The temperature of the wire is 35.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in . m) of aluminum at this temperature. p= 2.m (b) What is the current density (in MA/m2) in the wire? = C MA/m2 (c) What is the total...
