An indoor lighting circuit is run to a single metal halide light that is located 800...
An indoor lighting circuit is run to a single metal halide light that is located 800 feet from the panel. The light fixture has a rating of 600 Watts and operates at 120 volts single phase. It will be connected with #10 THWN non-stranded coated copper conductors. What will the voltage drop be in this circuit? List your answer in total volts dropped and as a total percentage drop.
What would be the voltage drop if the same light was operated at 240 volts single phase? List your answer in total volts dropped and as a total percentage drop.

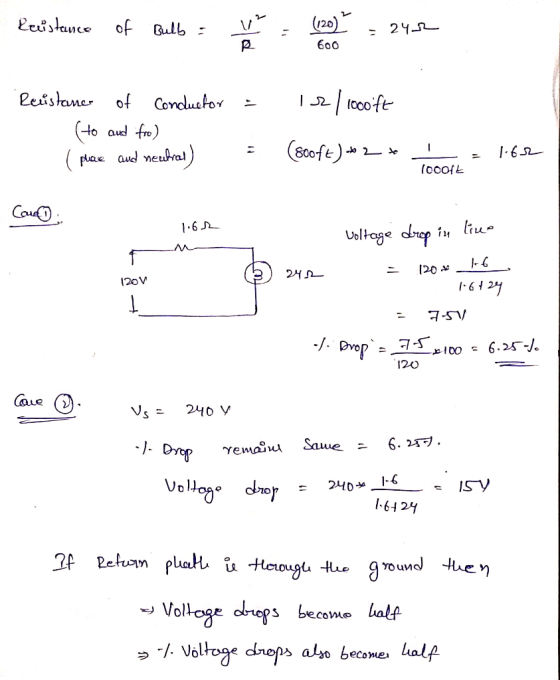

Homework Answers
If you have any doubts please comment
If everything is clear please rate the answer
Thank you
