Assume we are using 6-bit long 2’s complement integers and want to multiply 0x33 by 0x16....

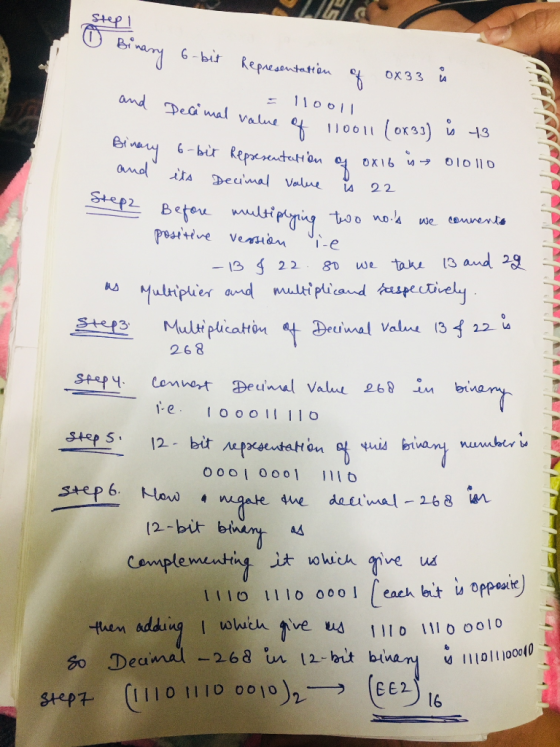

Assume we are using 6-bit long 2’s complement integers and want to multiply 0x33 by 0x16. Treating the first as the multiplier and the second as the multiplicand, show the steps used to multiply these two numbers together using the algorithm (the one which used one register for both the multiplier and the product). If either of these numbers represent a negative value, convert them to their positive version before multiplying, then negate your answer (if necessary). Give your answer in terms of a 12-bit integer in hex.
Homework Answers
