Two charges (a negative one and a positive one) are 18 cm apart from each other....

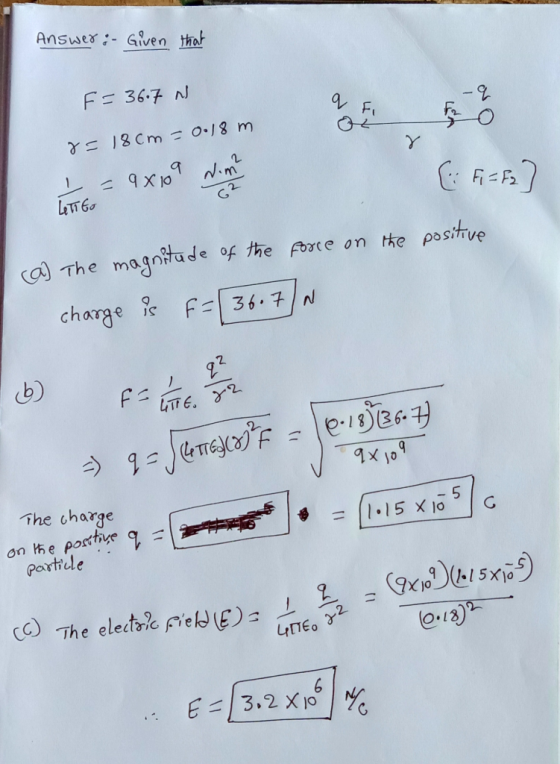

Two charges (a negative one and a positive one) are 18 cm apart
from each other. If there is a 36.7 N force on the negative charge
then
a) What is the magnitude of the force on the positive
charge?
b) What is the charge on the positive particle?
c) If the positive particle were removed what would be the
magnitude of the Electric field at the spot where the
positive particle used to be?
Homework Answers
Add Answer to:
Two charges (a negative one and a positive one) are 18 cm apart
from each other....
Two charges, one twice as large as the other, are 15 cm apart, and each experiences...
Two charges, one twice as large as the other, are 15 cm apart, and each experiences a repulsive force of 95 N from the other. 7. What is the magnitude of each charge? a. b. [EXTRA CREDIT] Where is the electric field zero?
Two positive charges of 5.78 each are 446 cm apart Find the electric field midway between...
Two positive charges of 5.78 each are 446 cm apart Find the electric field midway between them 1. E 9139.43 N/ 2. E 20892.5 N/C 3. E 40018.4 N/C 4. Е 4031 1.8 N/C 6. E 13068.3 N/C 7. E 12569.9 N/C 8. E 18147 N/C 9. E 38056.2 N/C 10° E 10027.7 N/C Question 5, chap 123, sect 7. part 2 of 2 10 points What is the magnitude of the electric field if one charge is positive and...
23.9.1 Two grapes are given equal charges and held apart at a distance of 1.1 m....
23.9.1 Two grapes are given equal charges and held apart at a distance of 1.1 m. They (5.00) experience a repulsive force of 2.2 N. Find the magnitude of the charge on each grape. (0/5 submissions used) C Save 23.9.1 Submit 23.9.1 Chapter 24: Electric Fields Section 10: Describing the force exerted by an external electric field P24.10.1 A point charge of -9.3x10-15 C is located where the electric field is directed to (5.00) the right and has a magnitude...
11. A positive and a negative charge are separated by 2.3 m charge are separated by...
11. A positive and a negative charge are separated by 2.3 m charge are separated by 2.3 m and exert an electrostatic force of 6 N on each other. If the same charges are placed 1.9 m apart, er. If the same charges are placed 1.9 m apart, what is the magnitude of force exerted on each other? ANS: 12. A system has equipotential surfaces as given below where the dashed lines are 1 m apart. What is the magnitude...
Two 2.3-cm diameter disks with charge ±25.0nCface each other, 1.0mm apart. a. What is the magnitude...
Two 2.3-cm diameter disks with charge ±25.0nCface each other, 1.0mm apart. a. What is the magnitude of the electric field between the disks? b. A proton is shot from the negative disk toward the positive disk. What launch speed must it have to just barely reach the positive disk?
Two positive point charges +q and two negative point charges-q are fixed at the corners of...
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
Two horizontal metal plates, each 10.0 cm square, are aligned 1.00 cm apart with one above...
Two horizontal metal plates, each 10.0 cm square, are aligned 1.00 cm apart with one above the other. They are given equal-magnitude charges of opposite sign so that a uniform downward electric field of 1.82 x 103 N/C exists in the region between them. A particle of mass 2.00 x 10-16 kg and with a positive charge of 1.03 x 10-6 C leaves the center of the bottom negative plate with an initial speed of 1.05 x 105 m/s at...
Field and force with three charges At a particular moment, one negative and two positive charges...
Field and force with three charges At a particular moment, one negative and two positive charges are located as shown in the figure. Your answers to each part of this problem should be vectors. It helps a great deal to make a diagram with arrows representing the various electric field contributions, and then check the signs of your components against these arrows. 01 0 (a) Find the electric field at the location of Q1, due to Q2 and Q3 E-<-2.16e5,...
One positive charge and one negative charge, each of magnitude 4x10^-6 C, are located a distance...
One positive charge and one negative charge, each of magnitude 4x10^-6 C, are located a distance of 0.1 m from each other. a) What’s the magnitude of force exerted on each charge? b) On a drawing, indicate the direction of the forces acting on each charge. c) Draw electric field lines between two charges.
Two identical conducting spheres, fixed in place, attract each other with an electrostatic force of 0.124...
Two identical conducting spheres, fixed in place, attract each other with an electrostatic force of 0.124 N when their center-to-center separation is 55.0 cm. The spheres are then connected by a thin conducting wire. When the wire is removed, the spheres repel each other with an electrostatic force of 0.0385 N. Of the initial charges on the spheres, with a positive net charge, what was (a) the negative charge on one of them and (b) the positive charge on the...
Two charges, one twice as large as the other, are 15 cm apart, and each experiences a repulsive force of 95 N from the other. 7. What is the magnitude of each charge? a. b. [EXTRA CREDIT] Where is the electric field zero?
Two positive charges of 5.78 each are 446 cm apart Find the electric field midway between them 1. E 9139.43 N/ 2. E 20892.5 N/C 3. E 40018.4 N/C 4. Е 4031 1.8 N/C 6. E 13068.3 N/C 7. E 12569.9 N/C 8. E 18147 N/C 9. E 38056.2 N/C 10° E 10027.7 N/C Question 5, chap 123, sect 7. part 2 of 2 10 points What is the magnitude of the electric field if one charge is positive and...
23.9.1 Two grapes are given equal charges and held apart at a distance of 1.1 m. They (5.00) experience a repulsive force of 2.2 N. Find the magnitude of the charge on each grape. (0/5 submissions used) C Save 23.9.1 Submit 23.9.1 Chapter 24: Electric Fields Section 10: Describing the force exerted by an external electric field P24.10.1 A point charge of -9.3x10-15 C is located where the electric field is directed to (5.00) the right and has a magnitude...
11. A positive and a negative charge are separated by 2.3 m charge are separated by 2.3 m and exert an electrostatic force of 6 N on each other. If the same charges are placed 1.9 m apart, er. If the same charges are placed 1.9 m apart, what is the magnitude of force exerted on each other? ANS: 12. A system has equipotential surfaces as given below where the dashed lines are 1 m apart. What is the magnitude...
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
Two horizontal metal plates, each 10.0 cm square, are aligned 1.00 cm apart with one above the other. They are given equal-magnitude charges of opposite sign so that a uniform downward electric field of 1.82 x 103 N/C exists in the region between them. A particle of mass 2.00 x 10-16 kg and with a positive charge of 1.03 x 10-6 C leaves the center of the bottom negative plate with an initial speed of 1.05 x 105 m/s at...
Field and force with three charges At a particular moment, one negative and two positive charges are located as shown in the figure. Your answers to each part of this problem should be vectors. It helps a great deal to make a diagram with arrows representing the various electric field contributions, and then check the signs of your components against these arrows. 01 0 (a) Find the electric field at the location of Q1, due to Q2 and Q3 E-<-2.16e5,...
