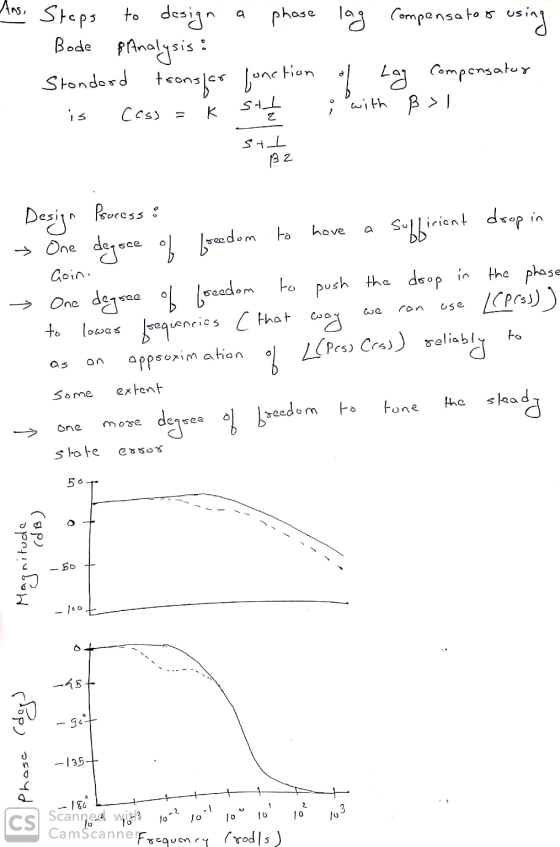

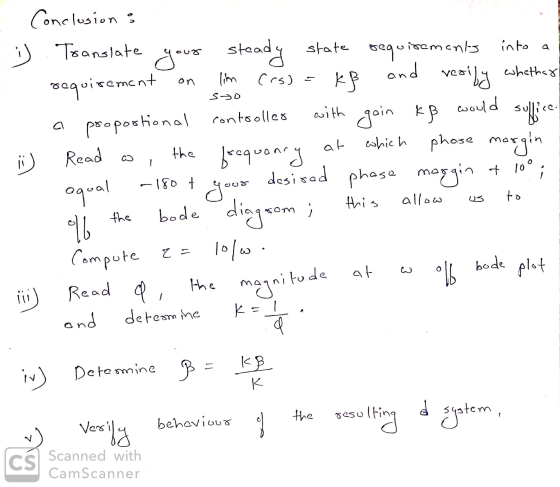

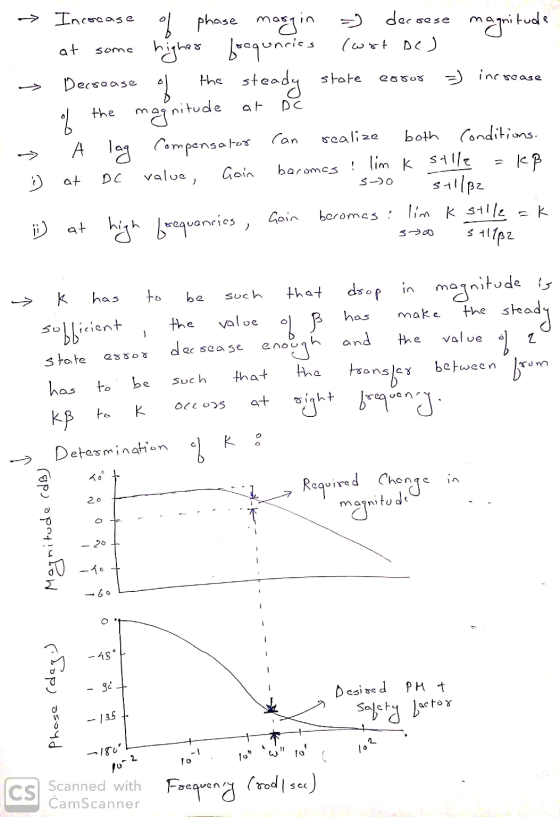

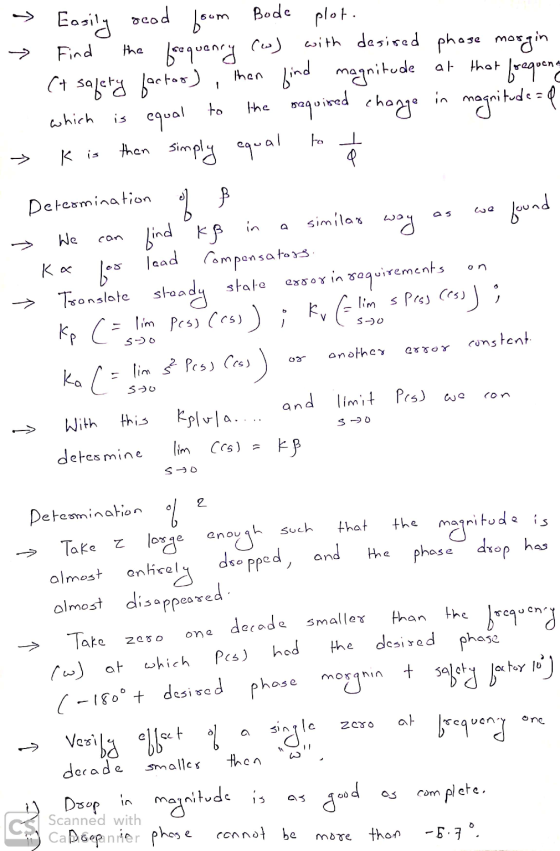

Explain the procedural steps to design a phase lag compensator using Bode analysis.
Explain the procedural steps to design a phase lag compensator using Bode analysis.
urgent!!
II Lag/lead Compensator Design A certain plant with unity feedback has the model given by GP(s) s(1 +0.1s) (1 0.2s) Design a phase-lag OR phase-lead compensator such that: 1. The steady- state error with respect to a unit ramp input is no more than 0.01; 2. Phase margin is approximately 40
II Lag/lead Compensator Design A certain plant with unity feedback has the model given by GP(s) s(1 +0.1s) (1 0.2s) Design a phase-lag OR phase-lead compensator such that:...
You are asked to design a compensator to increase the phase
margin to about 45degree without affecting the steady state
behavior and with the system bandwidth at least 4 rad/s. Would you
use a lag or lead compensator? Briefly explain.
R6 18-01-2018) as In the diagram, the block C(s) represents a compensator. The frequency response of the plant G(s) is shown below. Rode Data Magnitude (c) 40L 135 Phase (deg) .180 Frequency (rad/sec) (a) Suppose a compensator C(s) = 1...
Can you please use matlab to confirm this design with
graphs!
Need help designing this! g-9.8,r 0.0254,10.42545 Use Bode method to design lead-lag compensator for the ball and beam system. 1. The Design specifications for the ball and beam systems are: (a) Settling time no more than 5 seconds; (b) Overshot no more than 10%; (c) Steady-state error is no more than 6.67% or Ka-15. 2. The design specifications for the DC servo are: PO 0.13. The specifications here are...
urgent!!
II Lag/lead Compensator Design A certain plant with unity feedback has the model given by GP(s) s(1 +0.1s) (1 0.2s) Design a phase-lag OR phase-lead compensator such that: 1. The steady- state error with respect to a unit ramp input is no more than 0.01; 2. Phase margin is approximately 40
Answers are given.. Explain with calculations how to see from
bode plot which compensator it is and how is the d(s) written?
The next two questions require the following diagram -10 -15 -20 50 -50 100 Frequency (rad/sec) 10 4. The given Bode diagram is that of a lead compensator □ lag compensator lead-lag compensator D lag-lead compensator 5. Write the transfer function of the system represented by the given Bode diagram Solution The low frequency region indicates a lag...
7. Consider the following closed-loop system in which G(s5 Design a lag compensator, Ge( steady-state error due to a ramp input is 2% of the velocity of the ramp and the phase margin is 45°.
7. Consider the following closed-loop system in which G(s5 Design a lag compensator, Ge( steady-state error due to a ramp input is 2% of the velocity of the ramp and the phase margin is 45°.
urgent!
II Lead-Lag Controller Design A plant has the open-loop transfer function with unity feedback: 20(s +1) G, (s) s(10s +D(0.1258 +D(0.05s +1)(0.02s +1) Design a phase lag-lead compensator that satisfies the following specifications must by the compensated system 1. The steady-state error for a unit ramp input must be 0.002; 2. The compensated phase margin must be approximately 48; must be approximately 25 rad/sec.
II Lead-Lag Controller Design A plant has the open-loop transfer function with unity feedback: 20(s...
Lag Compensator Design Using Root-Locus 2. Consider the unity feedback system in Figure 1 for G(s)- s(s+3(s6) Design a lag compensation to meet the following specifications The step response settling time is to be less than 5 sec. . The step response overshoot is to be less than 17% . The steady-state error to a unit ramp input must not exceed 10%. Dynamic specifications (overshoot and settling time) can be met using proportional feedback, but a lag compensator is needed...
please show steps
5. GH(s) is a minimum-phase system which has the Bode plot shown below. It is desired to increase the phase margin by 40 degrees and also increase the closed-loop system bandwidth. Design a lead compensator for this purpose. Determine (1) the ratio of the pole to the zero, α , (2) the frequency where the maximum phase shift from the compensator should be placed, and then (3) the pole and zero. You need not draw the Bode...
R(S) + G(s) Figure 1. Block diagram Q3. Design a lag compensator so that the system of Figure 1, where K(s+4) G(s)= (s+2)(s +6)(s+8) Operates with a 45° phase margin and a static error constant of 100 (i.e. k, = lim G(s)).
