A 1200 lb wrecking ball with a velocity of 4 ft/s at the bottom of its...

A 1200 lb wrecking ball with a velocity of 4 ft/s at the bottom of its arc strikes a wall and comes to rest in a distance of 9 in. Negleting any change in elevation of the ball, determine: the average force on the wall in lbs. The deceleration rate in ft/s2, and the time period of decceleration in seconds.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

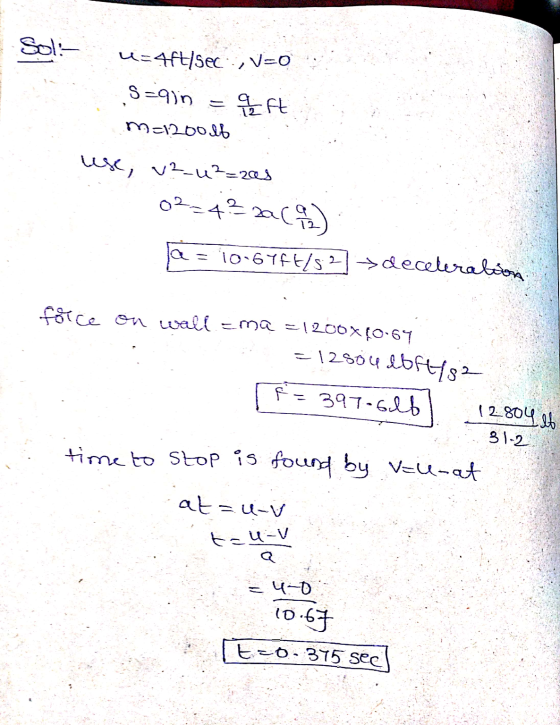

Answer #1

0 0
