The index of refraction of diamond is 2.4. Find the smallest incident angle for which a...

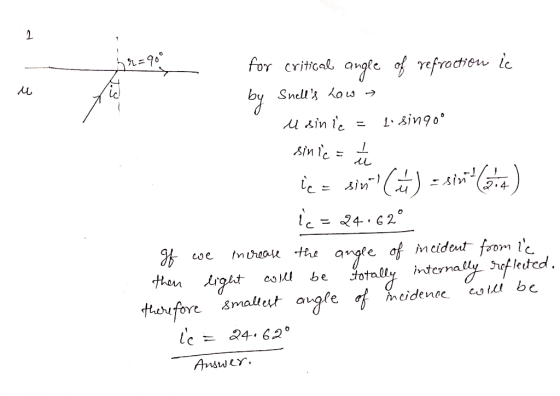

The index of refraction of diamond is 2.4. Find the smallest incident angle for which a light ray going from diamond to air is totally reflected (the critical angle). This is why cut diamonds “sparkle”.
Homework Answers
Add Answer to:
The index of refraction of diamond is 2.4. Find the smallest
incident angle for which a...
A beam of white light is incident on the surface of a diamond at an angle...
A beam of white light is incident on the surface of a diamond at an angle θa. (Figure 1) Since the index of refraction depends on the light's wavelength, the different colors that comprise white light will spread out as they pass through the diamond. For example, the indices of refraction in diamond are nred=2.410 for red light and nblue=2.450 for blue light. Thus, blue light and red light are refracted at different angles inside the diamond, as shown in...
15 Diamond has an index of refraction of 2.42, and part of the reason diamonds sparkle...
15 Diamond has an index of refraction of 2.42, and part of the reason diamonds sparkle is that this encourages a light ray to undergo many total internal reflections before it emerges. (a) Cal culate the critical angle at which total internal reflection occurs in diamond. (b) Explain the interpretation of your result: Is it mea- sured from the normal, or from the surface? Is it a minimum angle for total internal reflection, or is it a maximum? How would...
For the following questions, let the index or refraction for air be 1.000, diamond be 2.419, and zircon be 1.923.
For the following questions, let the index or refraction for air be 1.000, diamond be 2.419, and zircon be 1.923.Part (a) Calculate the critical angle for light going from diamond to air. Give your answer in degrees. Part (b) Calculate the critical angle for light going from zircon to air. Give your answer in degrees.
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
1) In a ruby laser, light is produced in a solid rod of ruby, with refractive...
1) In a ruby laser, light is produced in a solid rod of ruby, with refractive index 1.77. The light emerges from the end of the rod into the surrounding air. Part A At what angle should the rod end be cut so the emerging light is fully polarized? 2) A beam of white light is incident on the surface of a diamond at an angle θa. (Figure 1) Since the index of refraction depends on the light's wavelength, the...
The index of refraction for red light in water is 1.331 and that for blue light...
The index of refraction for red light in water is 1.331 and that for blue light is 1.340. If a ray of white light enters the water at an angle of incidence of 61.55o, what are the underwater angles of refraction for the blue and red components of the light? (Enter your answers to at least two decimal places.) (a) blue component (b) red component Need Help? Read It The light beam shown in the figure below makes an angle...
The Ocrit angle is= 24.09 degrees A beam of white light is incident on the surface...
The Ocrit angle is= 24.09 degrees
A beam of white light is incident on the surface of a diamond at an angle 02. (Figure 1) The index of refraction actually depends on the light's wavelength, so the different colors that comprise white light will spread out as they pass through the diamond (like in a prism). The index of refraction in diamond is nblue = 2.450 for blue light while the indices of refraction for the lower frequency colors are...
A plastic paperweight with an index of refraction n = 1.29 rests on a desk as...
A plastic paperweight with an index of refraction n = 1.29 rests
on a desk as shown in the figure. An incident ray of light enters
the horizontal top surface at an angle ? to the vertical. Find the
minimum value of ? for which the internal reflection on the
vertical surface of the paperweight is total. Assume that the index
of refraction of air is 1.
A plastic paperweight with an index of refraction n = 1.29 rests on...
The index of refraction for a diamond for red light of wavelength 651 nm is 2.35,...
The index of refraction for a diamond for red light of wavelength 651 nm is 2.35, while that for blue light of wavelength 439 nm is 2.26. Suppose white light is incident on the diamond at 26.3 ◦ . Find the angle of refraction for red light. Answer in units of ◦. Find the angle of refraction for blue light. Answer in units of ◦.
5. A ray of light is incident perpendicularly on the face ab of a glass prism...
5. A ray of light is incident perpendicularly on the face ab of a glass prism in air, as shown in the figure 2. Find the largest value for the angle 8 so that the ray is totally reflected at the face ac. Express the answer using the given variables. The indexes of refraction are n for the glass and 1 for the air, respectively. refraction index of the air 1 refraction index of the glassene bbor FIG. 2: To...
15 Diamond has an index of refraction of 2.42, and part of the reason diamonds sparkle is that this encourages a light ray to undergo many total internal reflections before it emerges. (a) Cal culate the critical angle at which total internal reflection occurs in diamond. (b) Explain the interpretation of your result: Is it mea- sured from the normal, or from the surface? Is it a minimum angle for total internal reflection, or is it a maximum? How would...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
The index of refraction for red light in water is 1.331 and that for blue light is 1.340. If a ray of white light enters the water at an angle of incidence of 61.55o, what are the underwater angles of refraction for the blue and red components of the light? (Enter your answers to at least two decimal places.) (a) blue component (b) red component Need Help? Read It The light beam shown in the figure below makes an angle...
The Ocrit angle is= 24.09 degrees
A beam of white light is incident on the surface of a diamond at an angle 02. (Figure 1) The index of refraction actually depends on the light's wavelength, so the different colors that comprise white light will spread out as they pass through the diamond (like in a prism). The index of refraction in diamond is nblue = 2.450 for blue light while the indices of refraction for the lower frequency colors are...
A plastic paperweight with an index of refraction n = 1.29 rests
on a desk as shown in the figure. An incident ray of light enters
the horizontal top surface at an angle ? to the vertical. Find the
minimum value of ? for which the internal reflection on the
vertical surface of the paperweight is total. Assume that the index
of refraction of air is 1.
A plastic paperweight with an index of refraction n = 1.29 rests on...
5. A ray of light is incident perpendicularly on the face ab of a glass prism in air, as shown in the figure 2. Find the largest value for the angle 8 so that the ray is totally reflected at the face ac. Express the answer using the given variables. The indexes of refraction are n for the glass and 1 for the air, respectively. refraction index of the air 1 refraction index of the glassene bbor FIG. 2: To...
