An array of solar cells consists of two parallel branches, each with three cells connected in...

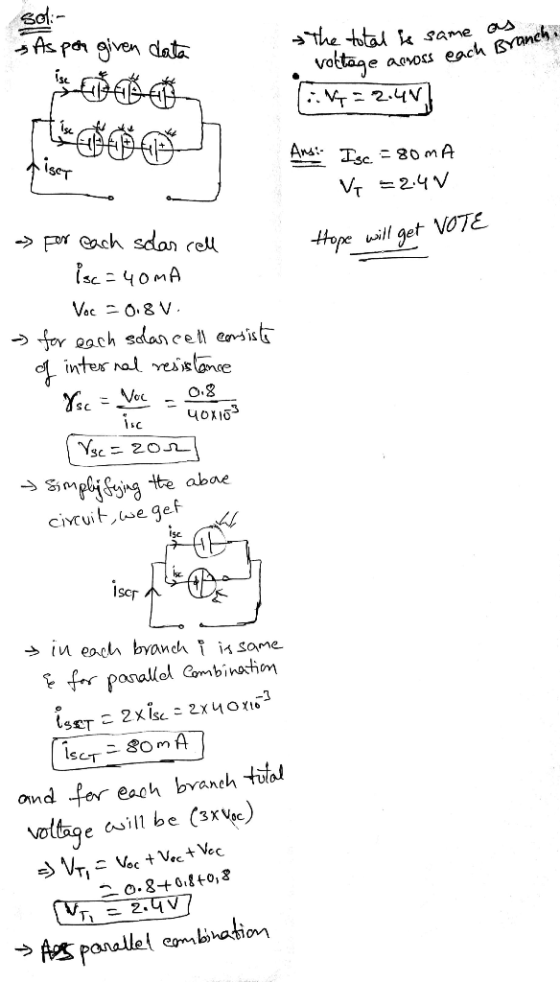

An array of solar cells consists of two parallel branches, each with three cells connected in series. All the cells are identical and for each cell Isc = 40 mA and Voc = 0.8 V. Sketch the circuit and estimate the values of Isc and Voc for the combined array.
Homework Answers
Add Answer to:
An array of solar cells consists of two parallel branches, each
with three cells connected in...
A crystalline silicon PV module has 36 cells connected in series. Each cell is square with...
A crystalline silicon PV module has 36 cells connected in series. Each cell is square with sides 150 mm. Assume ISC=300 A/m2 at standard conditions and the cells have a rectangular V-I characteristic. (a) Estimate the open-circuit voltage, the short circuit current and the power output of the module at an irradiance of 800W/m2. (b) A solar array is formed by six modules, three in series and two strings in parallel. What is the open-circuit voltage, the short circuit current...
Given two solar cells, one with a Vo 0.4V and Je 25mA/cm, and another cell with...
Given two solar cells, one with a Vo 0.4V and Je 25mA/cm, and another cell with a Voc- 0.6V and Je 15mA/cm', find the new values of Voe and e when they are connected in a) parallel and b) series. Assume both solar cells follow the ideal diode equations. Hint: Try drawing the two different circuit configurations, you can extract some current relationships.
A 250V, 100 Hz sinusoidal supply is connected to a parallel network comprising three branches A,...
A 250V, 100 Hz sinusoidal supply is connected to a parallel network comprising three branches A, B, and C as follows: A, a coil of resistance 10 ohms; B, a series circuit of 5 ohms and inductive reactance of 9 ohms; C, a series circuit of 6 ohms, inductance of 50mH, and a capacitive reactance of 10 ohms. Determine a) The apparent power of the combination b) The rating and value of the capacitor to be connected in parallel to...
a solar panel consisting of 64 solar cells connected in series, each with an area of...
a solar panel consisting of 64 solar cells connected in series, each with an area of 4cm^2. Solar irradiance is 950 W/m^2. The cell efficiency is 0.18. The output voltage is 6volts. A) what is the output power? B) what is the output current?
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells There are...
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells There are two subsystems connected in parallel, each one containing two cells. In order for the system to function, at least one of the two Within each subsystem, the two cells are connected in series, so a subsystem will work only if all cells in the subsystem wor suppose i since the cells are identical. parallel subsystems must work he lifetime of cell / exceeds t,...
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells 1H2 There...
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells 1H2 There are two subsystems connected in parallel, each one containing two cells. In order for the system to function, at least one of the two parallel subsystems must work Within each subsystem, the two cells are connected in series, so a subsystem will work only If all cells in the subsystem work. Consider a particular lifetime value to, and we want to determine the probability...
Question 19 (9 points) Three 2 V cells are connected in series. This circuit has two...
Question 19 (9 points) Three 2 V cells are connected in series. This circuit has two resistors in parallel. The first resistor is 2 ohms and the second resistor is 4 ohms. What is the voltage of the second resistor? What is the total resistance in the circuit? What is the amperage of each of the resistors? What is the total amperage of the circuit?
Two electrical loads are connected in parallel to a 380 V, 50 Hz, three phase supply....
Two electrical loads are connected in parallel to a 380 V, 50 Hz, three phase supply. The first load consists of three identical impedance each 7 Ω resistance and 5Ω inductive resistance, connected in star. The second load consists of three identical impedances, each 12 Ω resistance and 8 Ω capacitive reactance connected in delta. Sketch the arrangement described above Calculate Zph1 and Zph2[Zph1= 8.6Ω 35.54°; Zph2= 14.42 Ω -33.69°] Determine Iph1 and Iph2[Iph1= 25.51A -35.54°; Iph2= 26.35A +33.69°] IL1...
A circuit consists of a power supply and two resistors R1 and R2 connected in parallel....
A circuit consists of a power supply and two resistors R1 and R2 connected in parallel. A ammeter is placed to measure the current through R1. The ammeter reads I1 = 6.3 mA, and the values of the resistors are R1 = 9.8 kOhm and R2 = 7.8 Ohm. What is the current through R2?
Two identical capacitors are connected in parallel to an ac generator that has a frequency of...
Two identical capacitors are connected in parallel to an ac generator that has a frequency of 640 Hz and produces a voltage of 24 V. The current in the circuit is 0.8 A. What is the capacitance of each capacitor?
Given two solar cells, one with a Vo 0.4V and Je 25mA/cm, and another cell with a Voc- 0.6V and Je 15mA/cm', find the new values of Voe and e when they are connected in a) parallel and b) series. Assume both solar cells follow the ideal diode equations. Hint: Try drawing the two different circuit configurations, you can extract some current relationships.
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells There are two subsystems connected in parallel, each one containing two cells. In order for the system to function, at least one of the two Within each subsystem, the two cells are connected in series, so a subsystem will work only if all cells in the subsystem wor suppose i since the cells are identical. parallel subsystems must work he lifetime of cell / exceeds t,...
Consider the following configuration of solar photovoltaic arrays consisting of crystalline silicon solar cells 1H2 There are two subsystems connected in parallel, each one containing two cells. In order for the system to function, at least one of the two parallel subsystems must work Within each subsystem, the two cells are connected in series, so a subsystem will work only If all cells in the subsystem work. Consider a particular lifetime value to, and we want to determine the probability...
Question 19 (9 points) Three 2 V cells are connected in series. This circuit has two resistors in parallel. The first resistor is 2 ohms and the second resistor is 4 ohms. What is the voltage of the second resistor? What is the total resistance in the circuit? What is the amperage of each of the resistors? What is the total amperage of the circuit?
