what are the shapes and point groups of SCN- CS2 SO2

Question

Question

what are the shapes and point groups of
SCN-
CS2
SO2

science chemistry

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Which of the molecules below will be polar? CS2, BF3, SO2, CH3Br CH3Br only ...

Which of the molecules below will be polar? CS2, BF3, SO2, CH3Br CH3Br only CS2 only Both BF3 and CH3Br Both SO2 and CH3Br
balance the following equation: C+SO2>CS2+CO

balance the following equation: C+SO2>CS2+CO
Which of the following molecules belong to the class AXsubscript2Esubscript2? A) SCI2 B) SO2 C) CS2...

Which of the following molecules belong to the class AXsubscript2Esubscript2? A) SCI2 B) SO2 C) CS2 D) SO3 explain

Find the enthalpy change for the reaction CS2(l) + 3 O2(g) → CO2(g) + 2 SO2(g)...

Find the enthalpy change for the reaction CS2(l) + 3 O2(g) → CO2(g) + 2 SO2(g) when: C(s) + O2(g) → CO2(g) ΔHf = -393.5 kJ/mol S(s) + O2(g) → SO2(g) ΔHf = -296.8 kJ/mol C(s) + 2 S(s) → CS2(l) ΔHf = 87.9 kJ/mol
DRAW NEATLY the shapes, and determine the POINT GROUPS, for each of the following SIMPLE SPECIES...

DRAW NEATLY the shapes, and determine the POINT GROUPS, for each of the following SIMPLE SPECIES (11) [PO4] 3– (12) [PCl4] + (13) [PCl6] - (14) [BrF4] - (15) BrF5 (16) [lF6] + (17) lF7 (18) [NO3] - (17) [NO2] - (18) [SO3] 2- (19) [ClO3] - (20) [NO2] -
(21) What is the point group of the linear molecule CS2? 22) What is the point...

(21) What is the point group of the linear molecule CS2? 22) What is the point group of ethylene, C2H4?

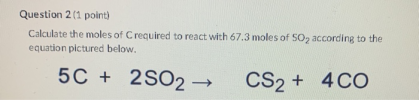

Question 2 (1 point) Calculate the moles of Crequired to react with 67.3 moles of SO2...
